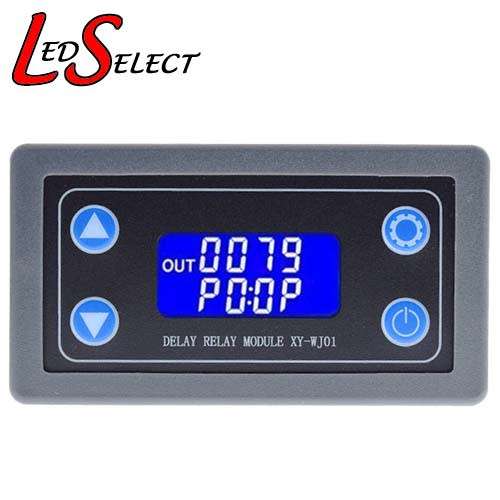

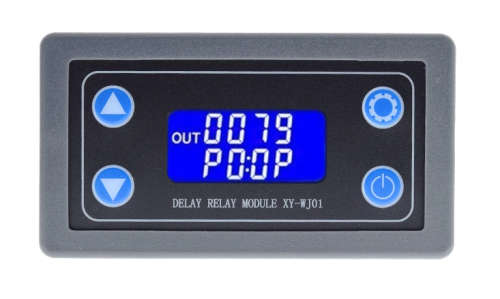

Delay Timer Switch Module:
Category: 1500312645 / 1508312645 - Controller Time Delay
Specifications:

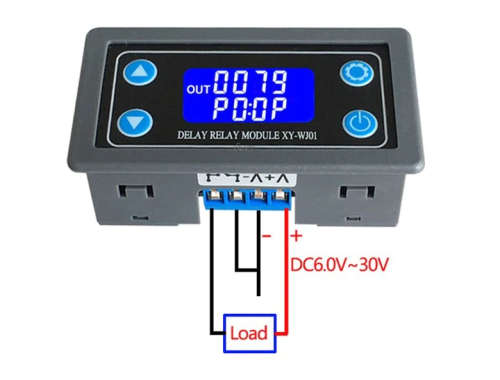

Working Voltage: 3 - 30V DC
Trigger Signal Source: High level (3V-24V), Low level (0V-0.2V)
Maxmum Output Load: DC 30V 10A and AC 220V 5A
Static Current: 15mA Operating current: 50mA
Working Temperature: -40 - 85°C
Optocoupler isolation, Strong anti-interference ability, Industrial grade circuit board, after power set parameters memory forever
Timing Range:
0.01 sec~9999 min
How to choose the timing range:
In the OP/CL parameter modification interface, press the pause button shortly to select the timing range.
XXXX Timing range:1sec~9999sec
XXX.X Timing range:0.1sec~999.9sec
XX.XX Timing range:0.01sec~99.99sec
X.X.X.X Timing range:1min~999.9min
For example, if you want to set the OP to 3.2 seconds, move the decimal point to ten digits. LCD display 003.2
Parameter Description: OP on-time, CL off time, LOP cycle times (1 - 9999 times, "----" represents an infinite number of cycles)

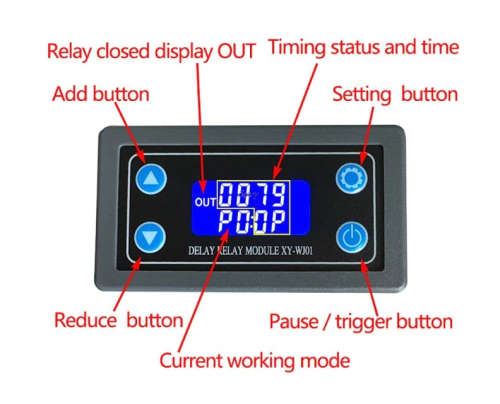

Parameter Settings:
a) Press and hold the SET key to enter the setting interface;
b) First set the working mode, work mode flashes reminder, set the working mode by pressing the UP / DOWN keys;
c) Short press the SET button to select the working mode and enter the system parameter settings.
d) In the system parameter setting interface, press SET key to switch the system parameters to be modified, and press / long press UP/DOWN key to modify. (Note: Short press SET in P0~P3/ P8/P9 mode is invalid);
e) In the OP/CL parameter modification interface, short press STOP to switch the timer unit (1s/0.1s/0.01s/1min);
f) After all parameters are set, press and hold the SET button for more than 2 seconds to release the hand, save the parameter settings and exit the setting interface.
