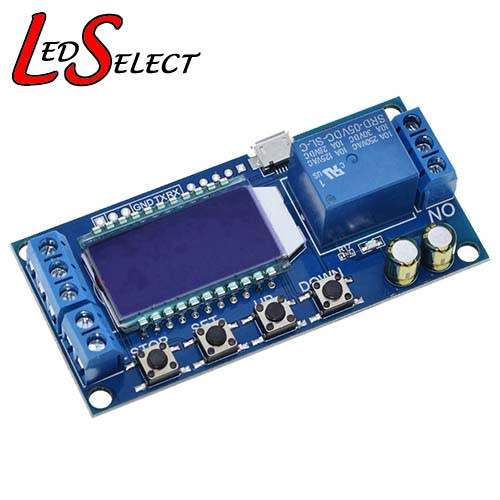

Delay Timer Switch Module:
Category: 1500312645 / 1508312645 - Controller Time Delay
Specifications:
Power Supply: 6 - 30V and micro USB 5.0 V
Trigger Signal Source: High level (3.0 - 24.0V), Low level (0.0 - 0.2V), Switch signal
Maxmum Output Load: DC 30V 5A and AC 220V 5A
Static Current: 15mA
Operating Current: 50mA
Service Life: more than 100,000 times; working temperature: -40-85°C

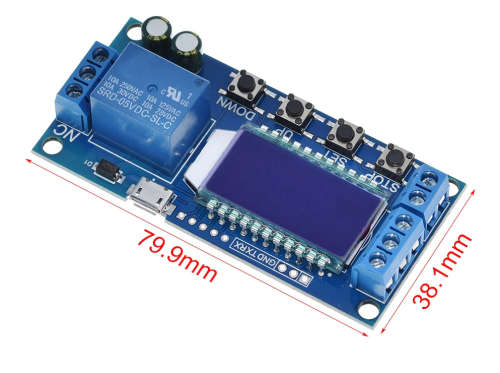

Size: 80 x 38 x 19mm

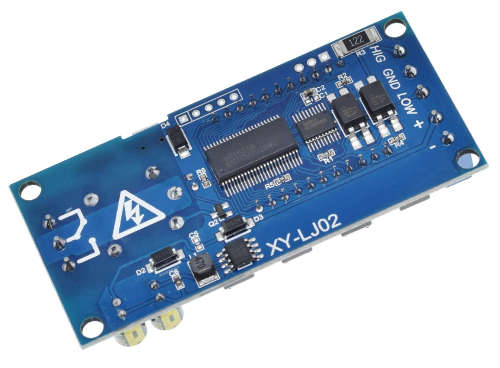

Optocoupler isolation,Strong anti-interference ability, Industrial grade circuit board

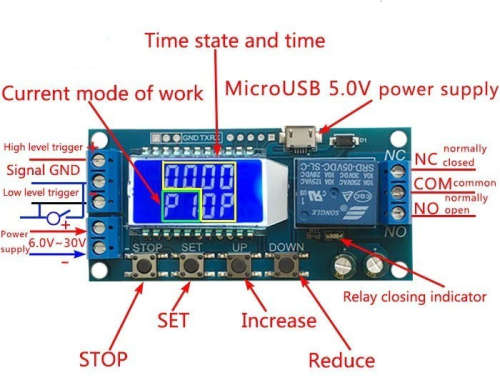

Working Mode:
P1: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal is invalid.
P2: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal triggers a new timer.
P3: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, signal trigger reset timer,relay disconnected and stop timing.
P4: When triggered, After the relay is disconnected from CL time, relay conduction OP time, after timing is complete, disconnect relay.
P5: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, gives the signal again in the loop, relays disconnect, stops the timer, and the number of cycles (LOP) can be set;
P6: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, signal is invalid in the loop, the number of cycles (LOP) can be set;
P7: Signal hold function: The signal is maintained, the timing is cleared, and the relay conduction; when the signal disappears, the relay disconnects after the timing OP; during the timing, there is another signal and the timing is cleared
