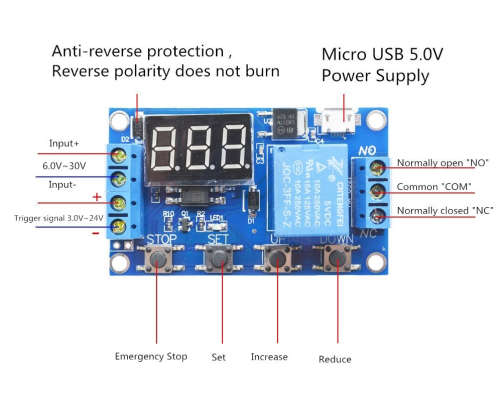

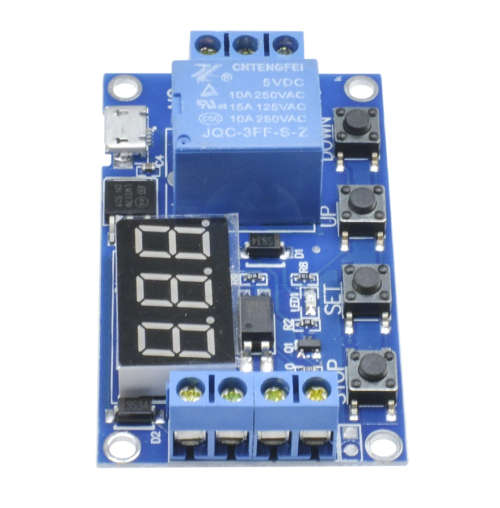

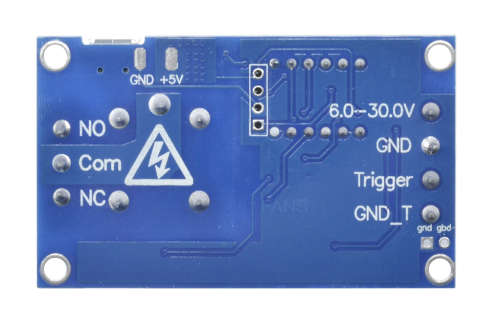

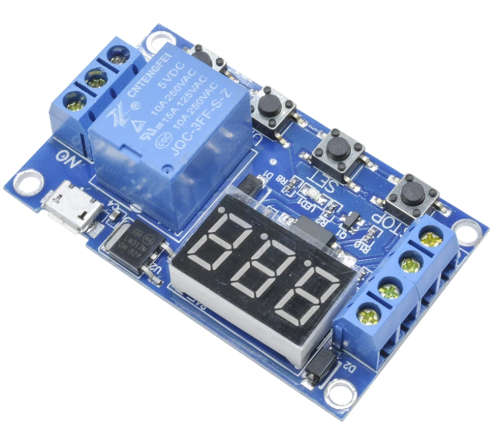

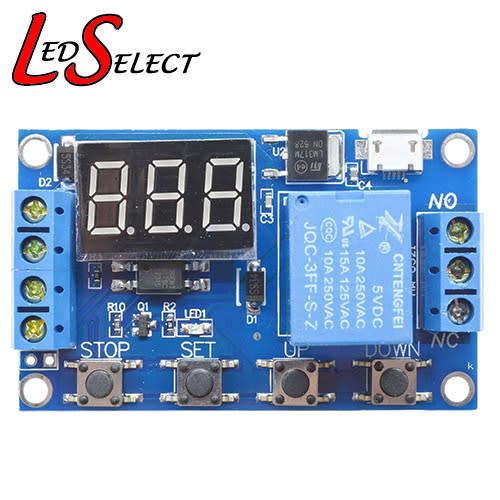

Delay Timer Switch Module:
Category: 1500312645 / 1508312645 - Controller Time Delay
Specifications:
Power Supply: 6 - 30V and micro USB 5V
Trigger Signal Source: High level (3 - 24V), Low level (0 - 0.2V), Switch signal
Maxmum Output Load: DC 30V 5A and AC 220V 5A
Static Current: 15mA
Operating Current: 50mA
Service Life: more than 100,000 times; working temperature: -40 - 85°C
Size: 80 x 38 x 19mm
Optocoupler isolation,Strong anti-interference ability, Industrial grade circuit board
