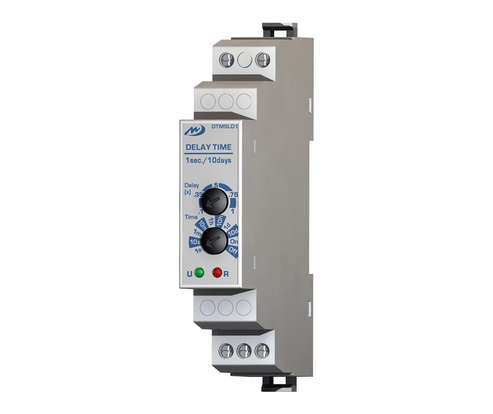

TIMER ON DELAY 0.1S-10D MULTI VOLT DIN TIMER

TIMER ON DELAY 0.1S-10D MULTI VOLT DIN TIMER

New 20 available
R459.00
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Returns
Warranty Type: Dealer 1 Year Warranty
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
9198372
Bob Shop ID
638027299

Compact Size - 1 Module
Out 1 Contact: SPDT
Time Range: 0.1s - 10 days
Function: Energise after Delay
Universal Supply
DIN Rail: EN50.022
Power Supply:
AC: 24V - 240V, 47-63Hz
DC: 24V - 110V
Max Consumption: 8.5 VA
Time Range: 0.1s - 10 days
Output Relay:
Contact: SPDT
Current: 8A
Voltage: 250VAC
Temperature:
Operating: -10°C to +50°C
Electrical Strength:
4kV
Protection Degree:
IP40
Relative Humidity:
95% RH
Weight:
60g
Dimensions:
98 x 17.5 x 64mm
