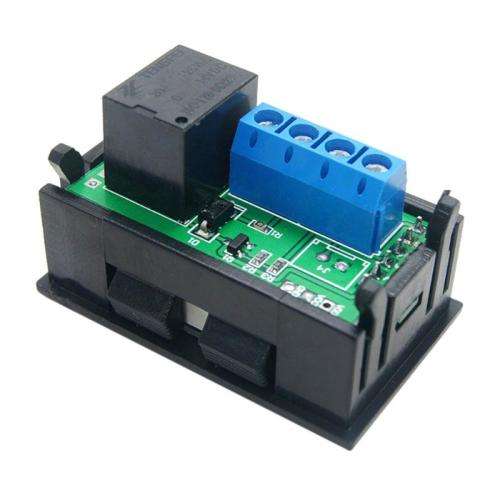

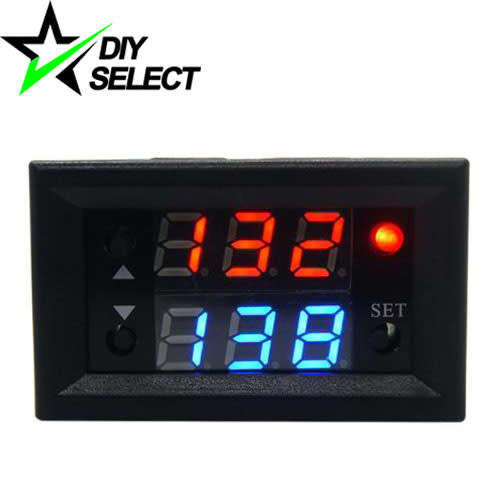

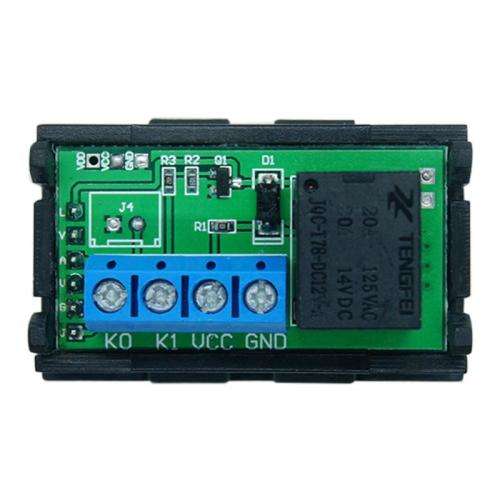

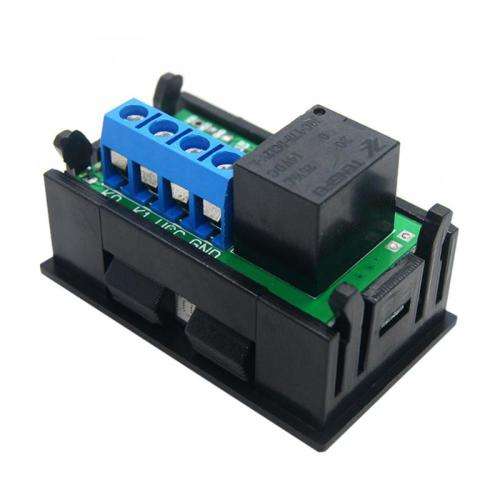

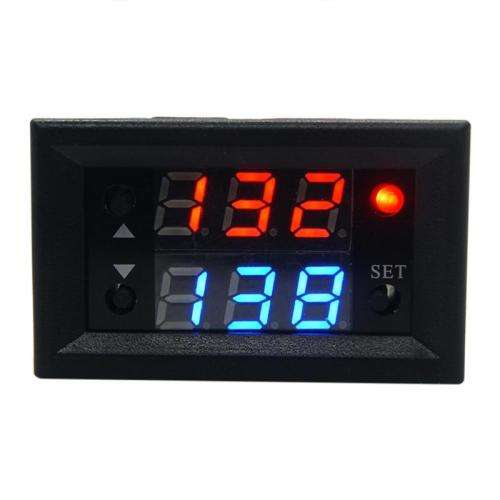

Delay Timer Switch Module (with Cycle option):
Specifications:
Working Voltage: 12V DC
Relay: 20A
Timing Range: 0-999 seconds, 0-999 minutes, 0-999 hours
Working Mode: Delay on/off, timing on/off, cycle on/off

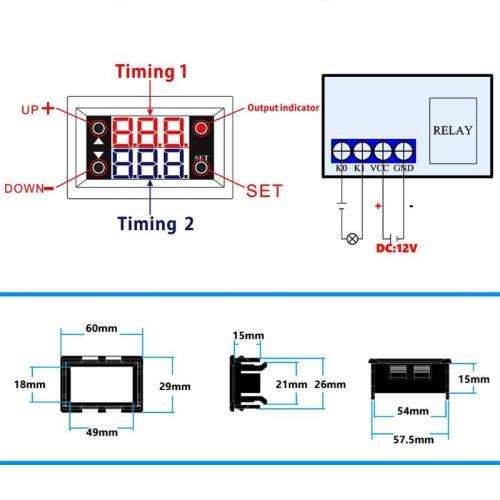

Size: 46 x 27 x 30mm
Instructions:
Short press button SET: If you start the time setting mode the display will blink. You can adjust the time T1 and T2 using button + and button -. Please wait as the module will save the data you have set after 5s .
Long press button SET: If you start the parameter setting mode there are two groups of parameters to choose from: P0 and P1. You can switch between P0 or P1 by short pressing the SET button. Under the parameter P0 and P1, you can set the timing mode using the + and - Buttons.
P0--0: Timing time mode : 0---999s.
P0--1: Timing time mode : 0---999min.
P0--2: Timing time mode : 0---999h.
P1--0: The relay will connect after you delay the T1 time .
P1--1: The relay will disconnect after you delay the T1 time.
P1--2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it finish.
P1--3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it finish.
P1--4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it is cyclic.
P1--5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it cyclic.
Example: A customer needs 10 seconds to start up and 20 seconds off. Setup is as follows:
T1 set time 10, T2 set time 20
P0 -- 0 (T1 time range is seconds)
P1--5 (timer work mode)
