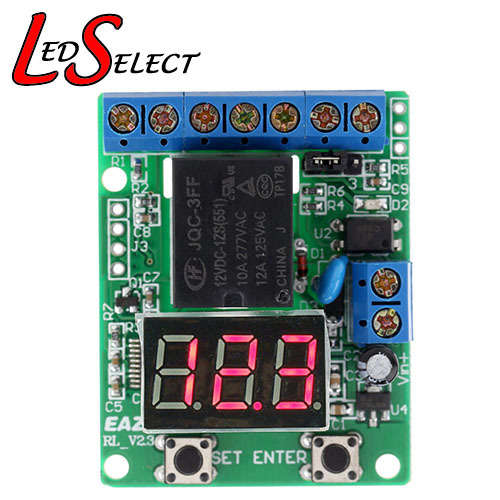

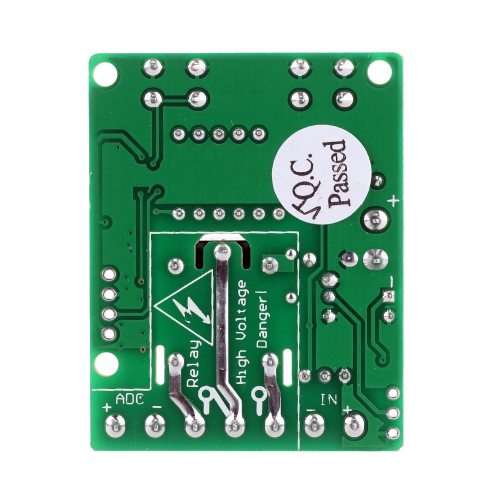

Relay Module Timer Charger Programmable Multifunctional:
Category: 1200312645 / 1204312645 - Battery Other
Specifications:
Relay Voltage: 12V
Working Power: 10-16V
Voltage Detection Range: 0-99.9V
Timing Range: 0-999min cycle
Contract Load: 10A/220V AC, 10A/30V DC
Standby Current: 16mA 12V
Working Temperature: -40 to 85 deg C

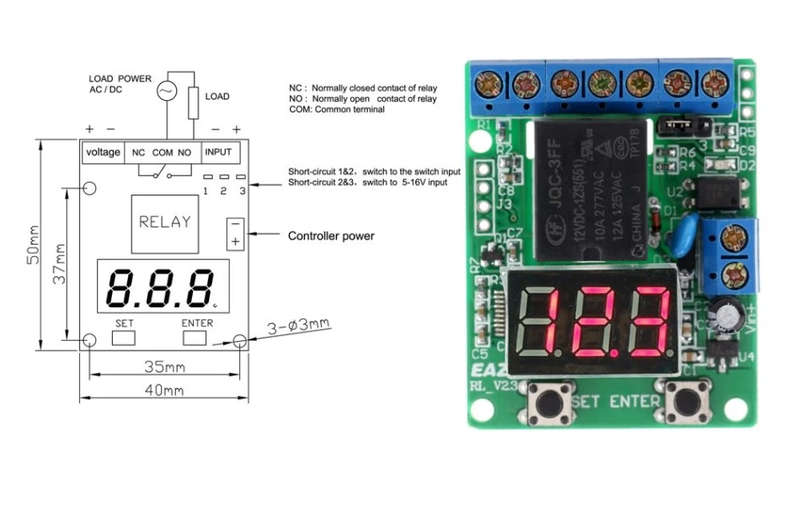

Size: 50 x 40 x 20mm
- Digital display DC voltage detection, control the relay output
- When the measured voltage is lower than the lower limit or higher than upper limit value, the relay works

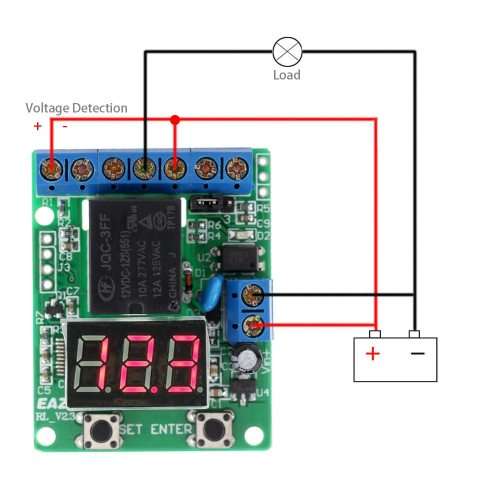

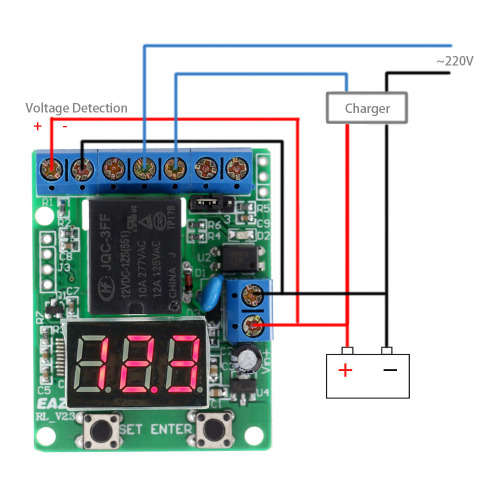

- Can be used for voltage detection switch, battery over/under voltage protector or discharge meter
Time Control:
P-1: T1= Relay On, T2= Relay Off, T3= Cycles
P-2: T1= Relay Off, T2= Relay On, T3= Cycles
Voltage Control:
P-3: V1= Upper Limit Relay On, V2= Lower Limit Relay Off, V3= Offset. Press "Enter" to start
(If you press "set" and hold for 3 seconds, relay will be reversed)
P4: (Relay Off between Upper and Lower Limit) It is the same as P3 but will also activate P1 / P2 Time Cycle feature at Upper Limit and Lower Limit
P5: (Relay On between Upper and Lower Limit) It is the same as P4 but will also activate P1 / P2 Time Cycle feature at Upper Limit
P6: Relay On above Upper Limit, Relay On below Lower Limit (Relay Off between Upper and Lower Limit)
P7: Same as P6 but will also activate P1 / P2 Time Cycle feature at Upper Limit and Lower Limit
P8: To control the timing to switch the display off
d-0 (Default) Display always on, d-1 to 9minutes to switch display off

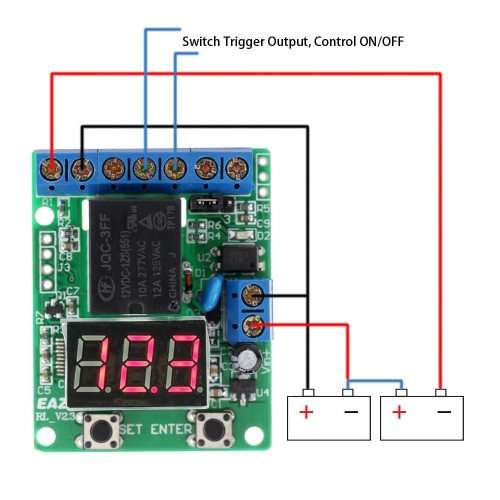

Trigger: To trigger via Arduino or other trigger device, Jumper must be moved to Position 3 on circuit board
See this link for full explanation: https://www.youtube.com/watch?v=dtc4UL2bEs4
