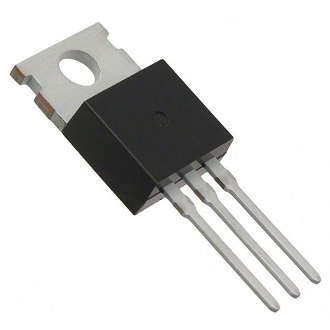

TIP31C NPN Power Transistor ***LOCAL STOCK***

TIP31C NPN Power Transistor

Medium power TRANSISTOR
With hfe gain up to 50
With hfe improved linearity
Maximum voltage across COLLECTOR and EMITTER of TRANSISTOR: 100V
Maximum current allowed trough TRANSISTOR COLLECTOR: 3A DC
Maximum voltage across BASE and EMITTER of TRANSISTOR:5 V
Maximum current allowed trough TRANSISTOR BASE: 1A DC
Maximum voltage across COLLECTOR and BASE of TRANSISTOR: 100V
Maximum operating Temperature: 150ºC

When you want a simple SWITCHING device for MEDIUM POWER LOADS. TIP31C is one of the basic TRANSISTORS out there which are easily available and cheap. With electrical characteristics suiting many applications it is fairly popular. So the component is best suited when choosing a random switching device.

When you want AMPLIFY a signal. The amplifying factor of TIP31C is fairly good and the important thing is gain is almost linear. So these characteristics make TIP31C one of best contender for amplifying applications.

TIP31C can be controlled by MICROCONTROLLER pulses because of its gain and high speed response. So it can be used in high speed switching applications.

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
