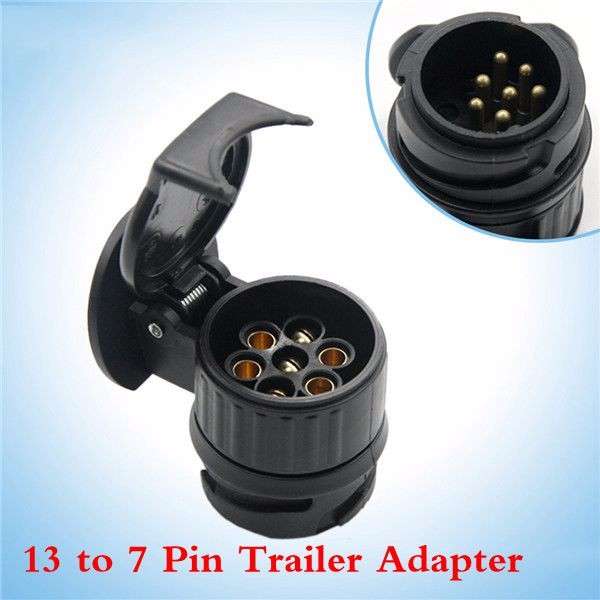

Tirol 13 to 7 Pin Trailer Adapter Plastic Trailer Wiring Connector 12V Tow Bar Towing Plug Black
New
5 were available
Indicative market price:
R198.59
R165.50
17% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
There are various locker and counter collection points across South Africa. View locations
The seller has indicated that they will usually have this item
ready to ship within 2 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Tirol 13 to 7 Pin Trailer Adapter Plastic Trailer Wiring Connector 12V Tow Bar Towing Plug Black
Description:

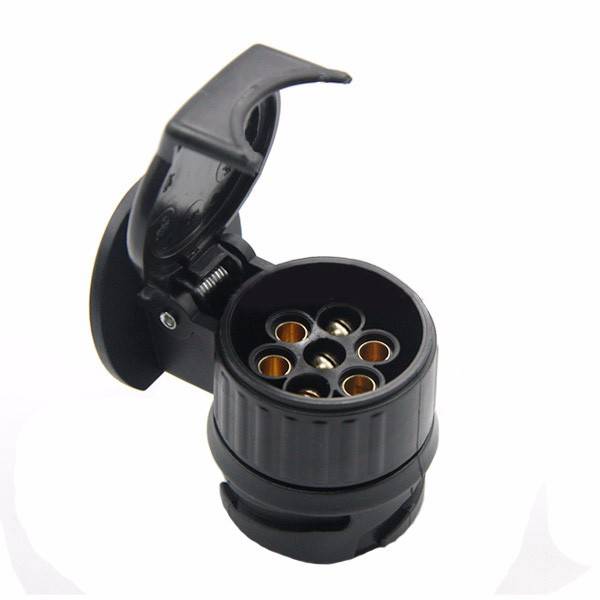

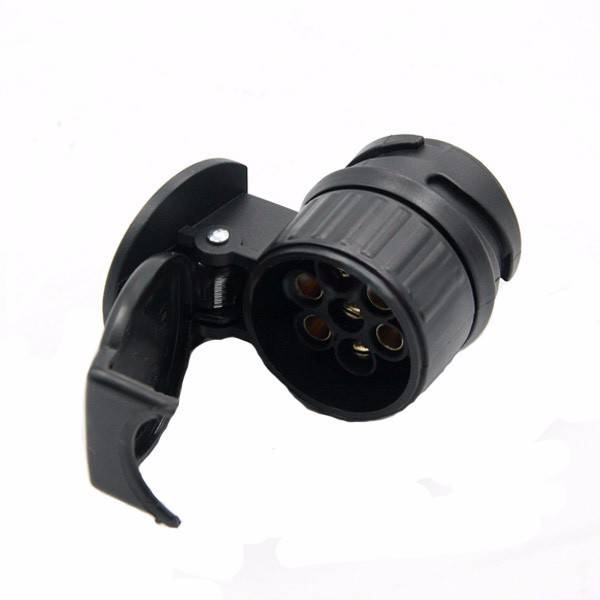

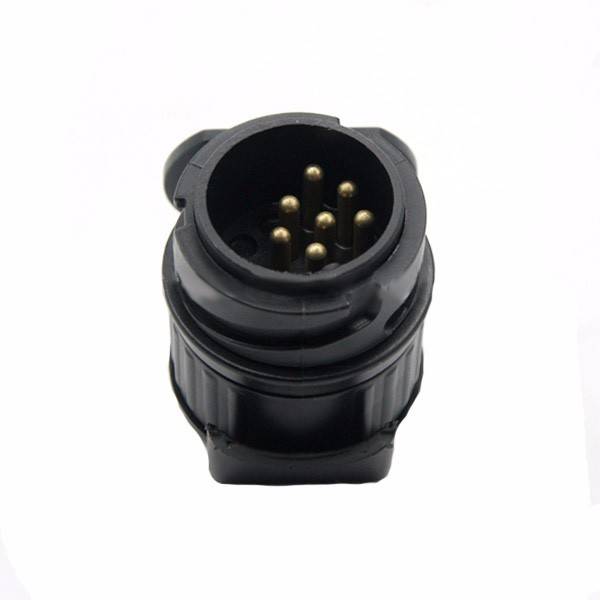

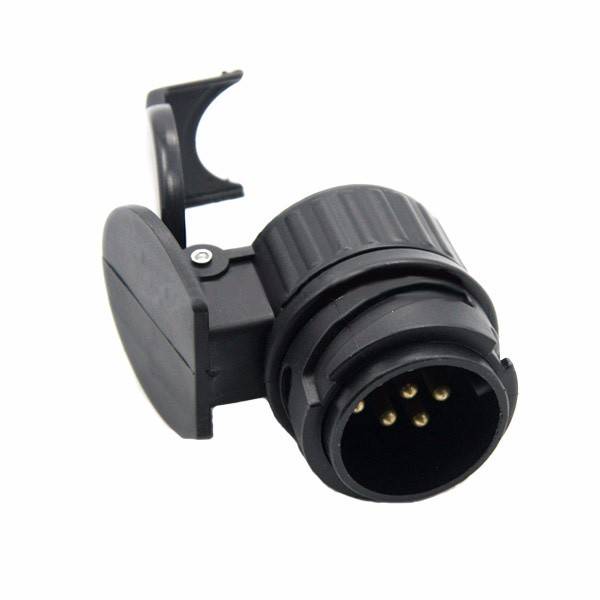

1.Many modern cars and cars with factory fitted tow bars use the new Euro 13 pin plug, this little adapter simply plugs into the 13 pin plug and then you can plug in your standard 7 pin plug into the other side. 2.Slimline design - same diameter as a normal trailer plug and just over half the length! 3.Weather proof sprung locking flap, protects the connections when not in use and locks in the 7 pin plug, when in use. 4. This adapter converts the 13-pin socket on your car to the 7-pin female socket 5. Will operate all road legal lighting for your trailer / caravan l Slim line design - same diameter as a normal trailer plug and just over half the length
Specification:
Item Type: Electrical Plug & Sockets Item Name: 13-7 Pin Adapter Brand Name: Tirol Size: 7x6.5x5cm Weight: 95g Material: Plastic Color: Black Input: 12V Features: Connect the major vehicle and the additional trailer; Transfer the electronic signature from the vehicle to trailer.
Wiring configuration:
7 Pin Lighting Connections - 12 N Black Cable Function
l PIN 1 - Yellow Wire (Left/H Direction Indicator) l PIN 2 - Blue Wire ( Rear Fog Lamps ) l PIN 3 - White Wire ( Earth Return ) l PIN 4 - Green Wire (Right/H Direction Indicator) l PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp ) l PIN 6 - Red Wire (Brake lights) l PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
13 Pin Lighting Connections - Cable Function
l Pin1 - Yellow Wire ( Left Indicator ) l Pin2 - Blue Wire ( Fog Light ) l Pin3 - White Wire ( Earth Return ) l Pin4 - Green Wire ( Right Indicator ) l Pin5 - Brown Wire ( Right tail / Side Light ) l Pin6 - Red Wire ( Brake / Stop Lights ) l Pin7 - Black Wire ( Left tail / Side Light ) l Pin8 - Pink Wire ( Reversing Light ) l Pin9 - Orange Wire ( 12V Pemanent power from battery ) l Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge ) l Pin11 - White / Black Wire ( Earth for Teminal 10 ) l Pin 12 - White / Blue Wire ( NOT usually used ) l Pin 13 - White / Red Wire ( Earth for Teminal 9 )
