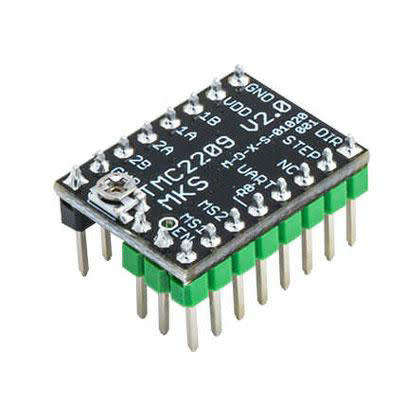

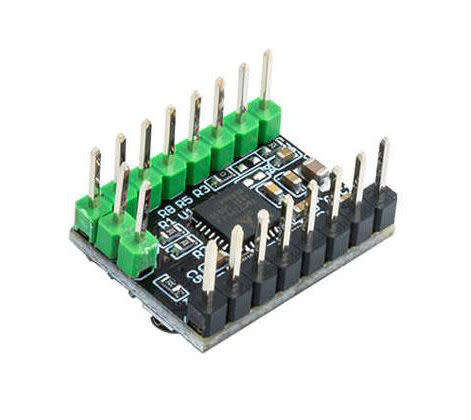

TMC 2209 V2 Stepper Motor Driver

TMC2209 has all the functions of TMC2208 and can completely replace TMC2208. At the same time, it generates less heat, can support higher currents, and infinitely return to zero.

Features and advantages:

1. Continuing the characteristics of the TMC series drive, the mute effect is good, and the internal 16 expansion of the chip 256 subdivision.

2. The driving current is larger, the maximum peak current can reach 2.5A, and the stable printing current can reach 1.8A.

3. Compared with other TMC series drivers, the heating efficiency is lower and the heat dissipation effect is better.

4. Support UART mode, perfect for use with SGEN-L, no jumper required.

Product parameters:

Default current: 1.25a

Maximum current: 2.5a

Logic voltage: 3.3v/5v

Input voltage: 5.5v-28v

Subdivision: up to 1/256

Mode: dir/step, uart

Package Included:

TMC2209 3D printer motor driver x1

Radiator x1
