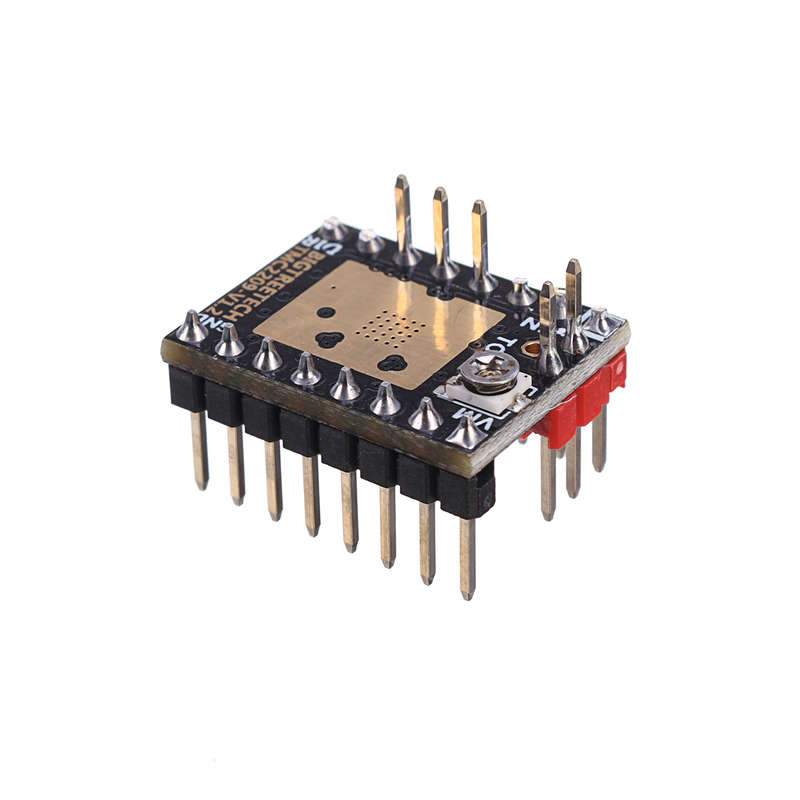

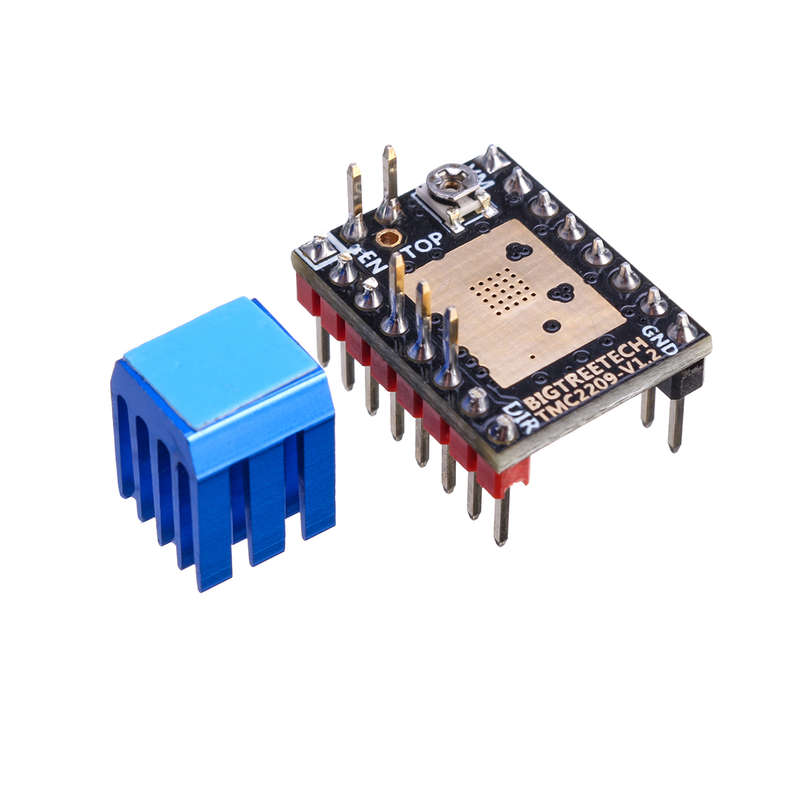

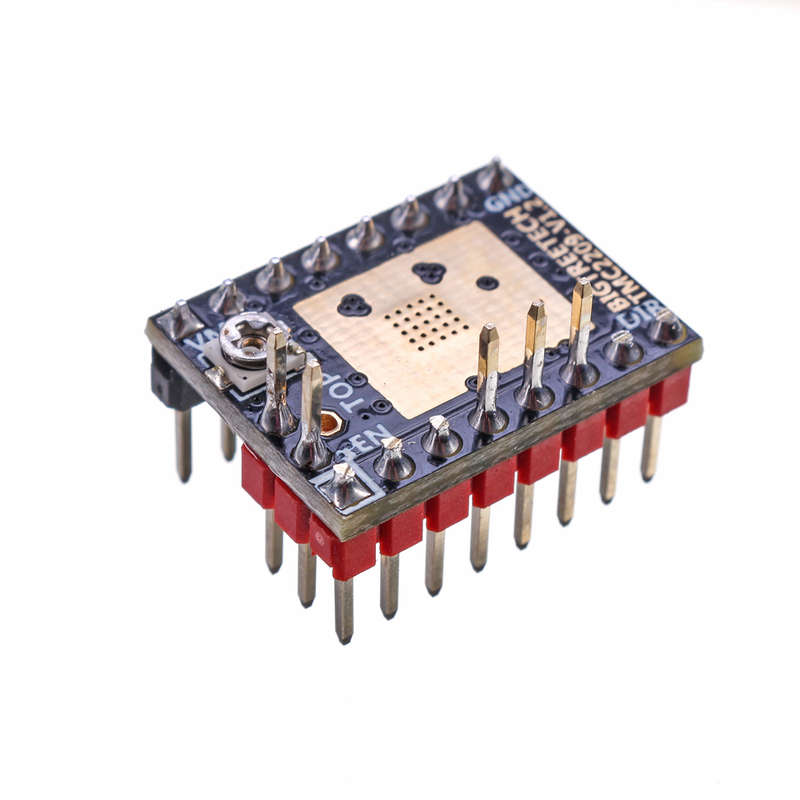

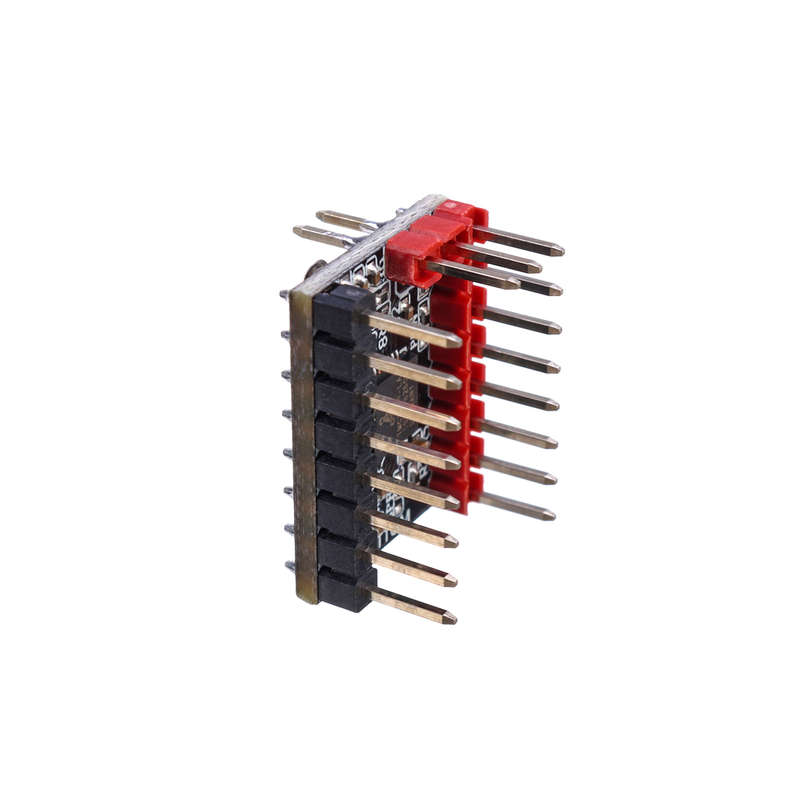

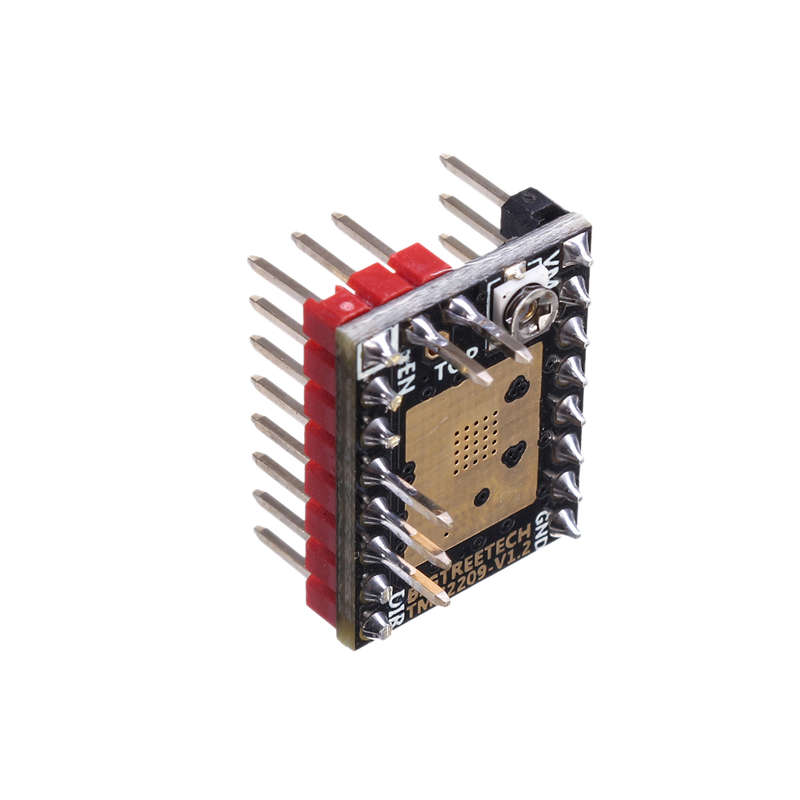

TMC2209 V1.2 Stepper Motor Driver UART SKR V1.3 Pro Control Board

20 available / new

R550.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3563

93.31 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643390096

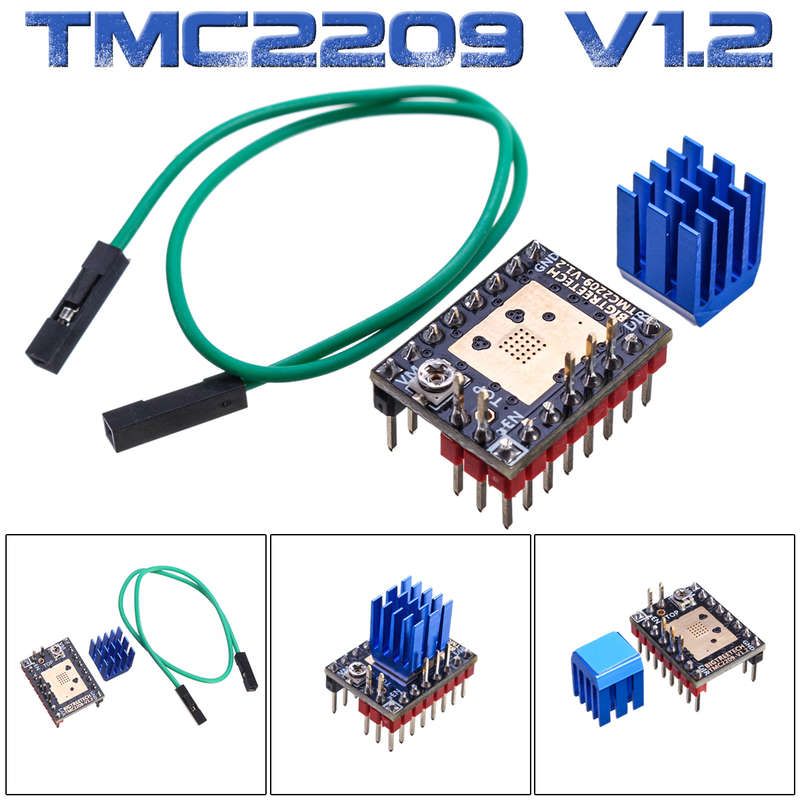

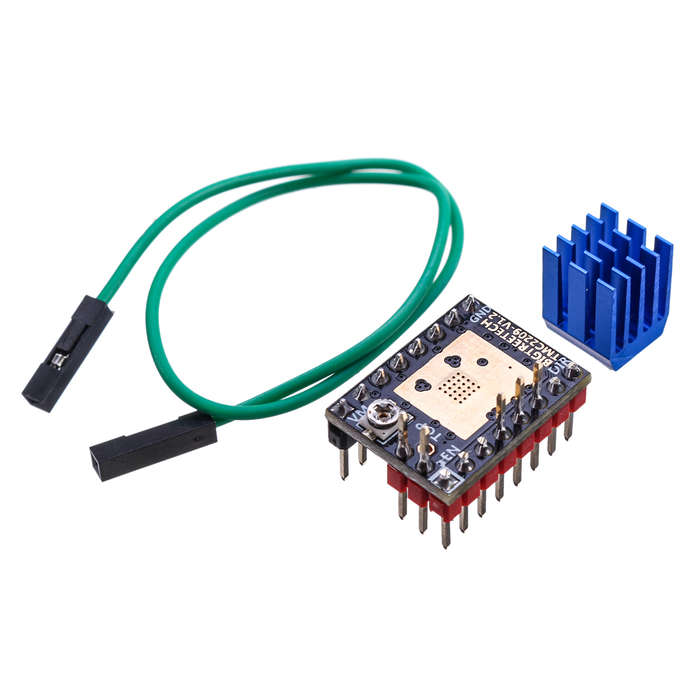

Description: TMC2209 V1.2 Stepper Motor Driver UART SKR V1.3 Pro Control Board Specification: Color: As the pictures shown Working Mode: STEP/DIR, UART Mode Phase Current max (RMS) 3: 2A (Peak 2.8A) Voltage: 4.75V-28V Microsteps: 256 Subdivision RDSon: 0.2 Ohm Rsense: 110 mOhm Compatible With: SKR V1.3/SKR mini/MKS GEN L/MKS GEN V1.4/Ramps1.4/1.5/1.6 or other 3D printer board Features: - Configuration via CFG pins or UART interface. - CoolStep - current control for energy savings. - StallGuard4 - sensorless motor load detection. - Hardware compatible with StepStick and Pololu A4988. - StealthChop2 - for quiet operation and smooth motion. - Drive capability up to 2A (RMS) continuous coil current - 2.8A Peak. - Step/Dir interface with microstep interpolation (up to 256 microsteps). - SpreadCycle - highly dynamic motor control chopper (enableable via UART, OTP, CFG Pin). Package Included: 1 x Set Of TMC2209 V1.2 Control Board(3 Pieces) More Details:
