TMT250 - Autonomous GPRS GNSS Bluetooth tracker

Teltonika TMT250 is an AUTONOMOUS personal tracker with GNSS, GSM and Blue-tooth
connectivity. This mini tracker is designed for people, pets, car monitoring, employees
control, sport events, etc. IP67 waterproof case ensures outside usage in harsh conditions,
moreover large batterys capacity expand application range where long battery lifetime is
needed. In addition to that, TMT250 supports hands-free, firmware and configuration update
via Blue-tooth

Smart battery usage algorithm long autonomous work - expand applications range
IP67 fully waterproof case (case not included) - outdoor usage
Man-Down employees fall down detection emergency help for lone workers

Alarm button
A big alarm button can save your life in the event of an accident, fall or in a case of
emergency. Direct voice call or message sending via GPRS/SMS can be activated with
a single press of the button.

Man-down
Used to detect employees, elderly people and lone workers falling down.
TMT250 can monitor users vertical or horizontal position without any button press and
immediately activate an alarm if configured position is changed.

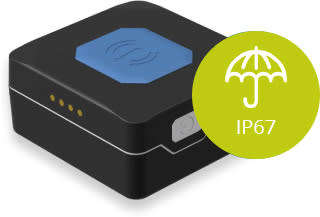

Certified IP67 case
Expand the usage limits of the device even more. TMT250 features a waterproof (IP67) case
design which ensures increased protection against dust ingress and water.

Accelerometer & Gyroscope
Built-in accelerometer and gyroscope sensor for more accurate fall down trace data in order
to avoid fake events.

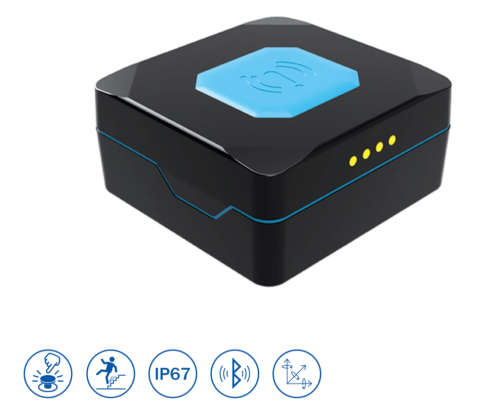

Small casing
New modern design, small casing with big capacity battery 800mAh. Dimensions only
44x43x20 mm. Such a device can be easily hidden and work for a long hours.

Blue-tooth
Integrated Blue-tooth enables wireless headset and various other Blue-tooth devices connectivity.
Make phone calls to your employee via Blue-tooth headset. No unauthorized calls anymore! Be
sure that your employee is always safe and uses hands free headset instead of phone

Children tracking
Losing the sight of your kid is one of the scariest things in parenting. Fortunately, technologies
have went so far, that you can keep track of your child anytime, whether they are going to a
cinema or are on a school trip. With the help of our solution, not only keep track of them, but
also provide child the possibility to call you instantly.

GSM/GPRS features
Quad-band 900/1800 MHz; 850/1900 MHz
GPRS Multi-Slot Class 12(up to 240 kbps)
GPRS Mobile Station Class B
SMS (text/data)

Blue-tooth
Blue-tooth specification V3.0
Blue-tooth transceiver compliant with Blue-tooth specification V3.0 for external peripherals:
Voice calls over Blue-tooth
Configuration via Blue-tooth
Blue-tooth sensors

Low Energy Blue-tooth V4.0
Blue-tooth transceiver compliant with Blue-tooth specification V4.0 for external peripherals:
Beacons
Low power sensors

GNSS
Tracking: 33/99 acquisition channels
-165 dBM sensitivity
Hot start <1s
Warm Start < 25s
Cold start < 35s
NMEA-183 protocol
GPS, GLONASS, GALILEO, BEIDOU, SBAS,
QZSS, DGPS, AGPS
Accuracy < 3m

Features:

Alarm button

Man-down detection

Auto Geofencing

50 Manual Geofence zones

Over Speeding

GPS Sleep/Deep Sleep/Online deep sleep modes

Action on call feature

Two - way communication over Blue-tooth headphones

Real Time trackin

Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)

Smart algorithm of GPRS connections for GPRS traffic saving

Operating in roaming networks by preferred GSM providers list

Events from I/O elements detection and sending via GPRS or SMS

Authorized numbers

Time synchronization over NTP and NITZ

Offline tracking mode

SMS/GPRS requests

Firmware and configuration update via Micro USB/FOTA

Configuration through SMS

Smart data acquisition and power saving modes

High Gain internal GNSS and GSM antennas

1 RGB status LED

Dimensions 44x43x20 mm
