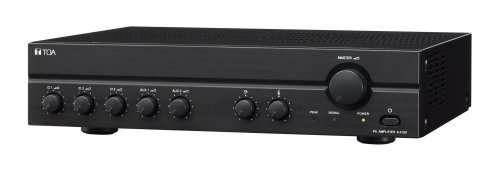

The A-2060 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
POWER SOURCE | 220 - 240 V AC, or 24 V DC |
---|---|
RATED OUTPUT | 60 W |
POWER CONSUMPTION | 72 W (EN60065), 4 A (DC operation at rated output) |
FREQUENCY RESPONSE | 50 - 20,000 Hz (±3 dB) |
DISTORTION | 1% or less at 1 kHz, 1/3 rated power |
INPUT | MIC 1 - 3: -60 dB*, 600 , balanced, equivalent to XLR-3-31 type AUX 1, 2: -20 dB*, 10 k, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1) |
OUTPUT | Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33") High impedance: 170 (100 V), 83 (70 V) Low impedance: 4 (15.5 V) Rec out: 0 dB*, 600 , unbalanced, RCA pin jack |
PHANTOM POWER | DC +21 V (MIC 1) |
S/N RATIO | 60 dB or more |
TONE CONTROL | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
MUTING | MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal contact. |
FINISH | Panel: ABS resin, black Case: Steel plate, black |
DIMENSIONS | 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54" × 3.97" × 11.04") |
WEIGHT | 7 kg (15.43 lb) |
