Topcool 1250w Single Channel High Efficiency 80 Plus Gold ATX Mining Power Supply Unit with 230V Automatic Power Factor Correction -1x ATX MB Connector 24 Pin (20 Pins fixed +4 detachable) , 1 x EPS 8 Pin ( 4 Pin + 4 Pin detachable) 12 V Connector , 4 x PCI-E Cables (6 Pin +2 Pin to 6 Pin +2 Pin to 6 Pin) , 6 x 15 pins SATA connectors , 6 Molex 4 pin IDE connectors , Single Ball Bearing 140mm Fan , Retail Box , 3 Months Warranty
Product Overview

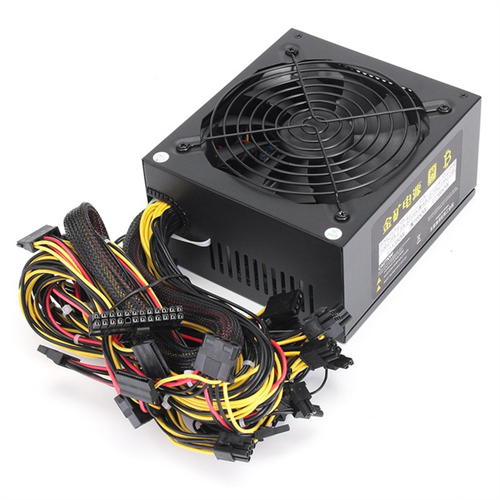

Topcool 1250w Single Channel High Efficiency 80 Plus Gold Mining Power Supply Unit has been specially optimized for the construction of mining rigs. It's widely used in mining industry as power supply for the main board, graphics card and other parts. The power rating of the power supply is 1234w. The 80 Plus Gold certificate means that more than 80% of the energy of the power supply is transferred to the computer's components. The device is equipped with a Dual Ball Bearing 140mm fan and high-quality components that provides maximum airflow and near-silent operation. Universal AC Input Design is stable enough for 180-260V voltage input available and the Automatic Power Factor Correction (APFC)enhances power output efficiency and increases the performance and stability of your system.
Highlights •1250w Single Channel ATX Mining Power Supply Unit
•High Efficiency 80Plus Gold
•230V Automatic Power Factor Correction
•1x ATX MB Connector 24 Pin (20 Pins fixed +4 detachable)
•1 x EPS 8 Pin ( 4 Pin + 4 Pin detachable) 12 V Connector
•4 x PCI-E Cables (6 Pin +2 Pin to 6 Pin +2 Pin to 6 Pin)
•6 x 15 pins SATA connectors
•6 Molex 4 pin IDE connectors
•Single Ball Bearing 140mm Fan
•Mining Rig Power Source for Ethereum S9 S7 L3 Rig Mining Bitcoin
•Matte Black Finish
Specifications:
•Stock Code PSU1250
•Description Topcool 1250W Single Channel ATX Mining Power Supply Unit
•Type High Efficiency 80 Plus Gold
•Efficiency: 87%
•Material: SECC
•Type: ATX Power Supply Single Channel
•Rated Power: 1234W
•Fan Size: 140mm
•PFC: Active PFC on 230V only
•Input Voltage: 170V-260V, 50-60Hz
•Input Current: ≤9A (230V Input Voltage)
•Heat Dissipation Mode: Adopt 140mm double ball bearing fan to dissipate heat
•Protection Function: Overpower Protection, Over-voltage Protection, Short Circuit Protection
•Operation Temperature: 0℃～55℃
•Operation Humidity: 5%～85%
•Storage Temperature: -40℃～70℃
•Storage Humidity: 5%～95%
•Item Weight: 2250g
•Package Size: 34 * 21 * 19cm (L * W * H)
•Package Weight: 272g
