Electrical tester, reducing diagnostic time in all 6-30V at vehicle electrical systems after a simple hook-up of the tool to the vehicles' battery, you can:
- Determine at a glance if a circuit is positive, negative or open without having to reconnect clips from one battery pole to another.
- Test for continuity with its built -in auxiliary ground lead.
- By depressing the own switch of tester electric, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
- Test for poor ground contacts of this circuit tracer instantly without performing voltage drop tests, the tool is also short-circuit protected its internal circuit break will trip if it becomes over loaded.
Purpose of the P100 Power Circuit Probe Kit:
- Diagnose battery Status
- AC/DC voltage, resistance, diode test

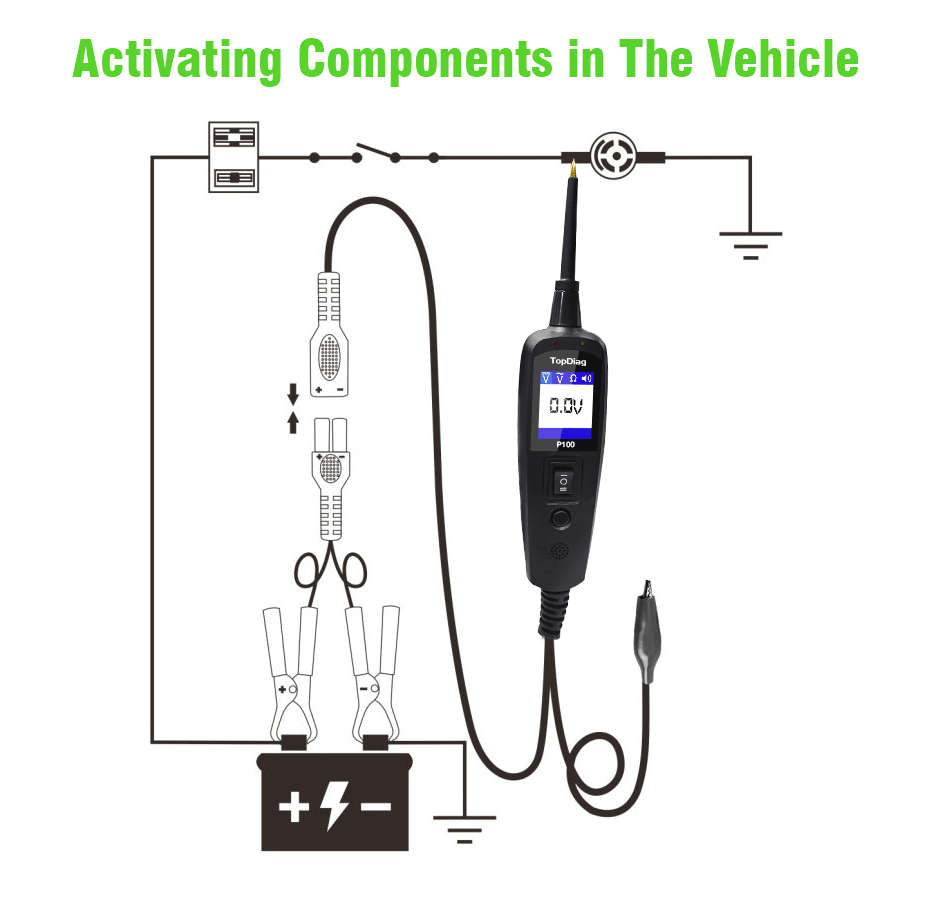

- Component activation
- Find short circuit
- Find the broke wire
- Find the bad ground
- Testing trailer lights
- Check continuity
- 10m extension cable
Test Tool Specifications:
DC voltage : 0-65V +1 digit
Resistance : 0-200 K ohm
The frequency response of tone pass-through: 0Hz to 10K Hz. Circuit Breaker
Rating current: 1-10 Amp

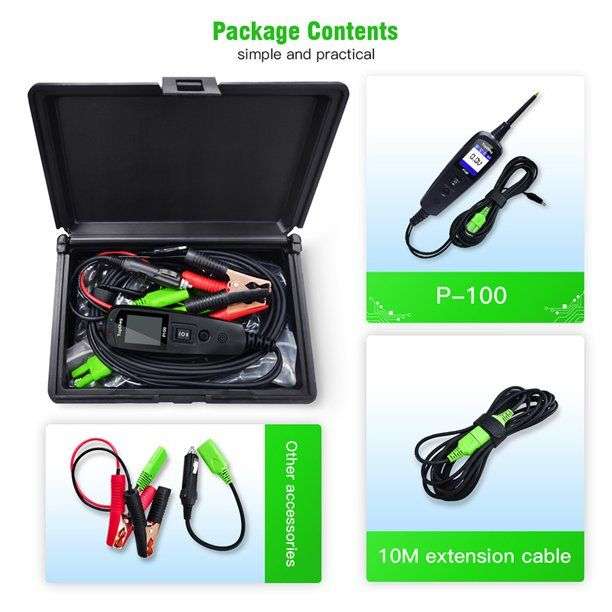

What's in the box
1 x P100 Power scan
1 x Probe
1 x Rugged Blow Moulded Case
1 x Battery Hook-up Clips
1 x 10m Extension Cable
1 x Lighter Adapter
1 x User Manual
