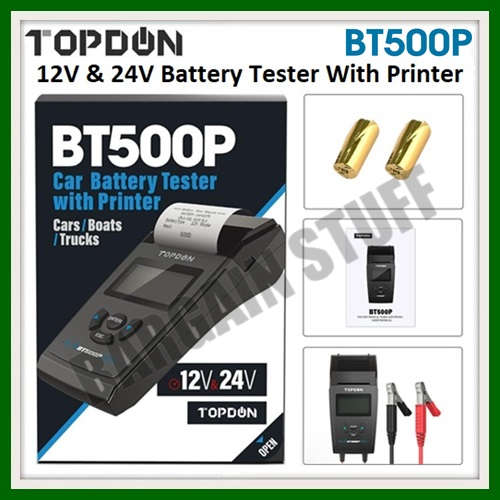

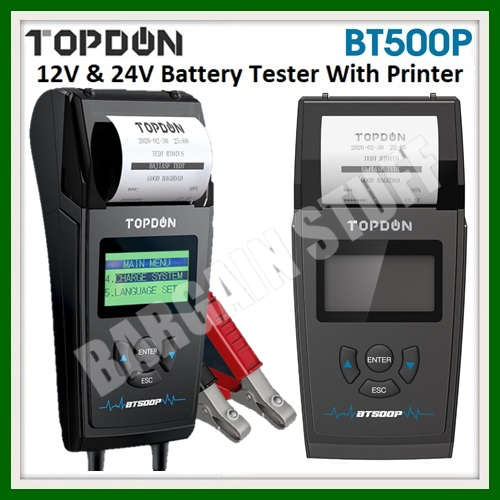

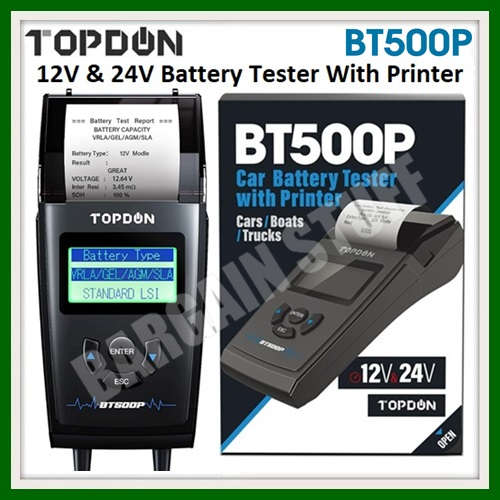

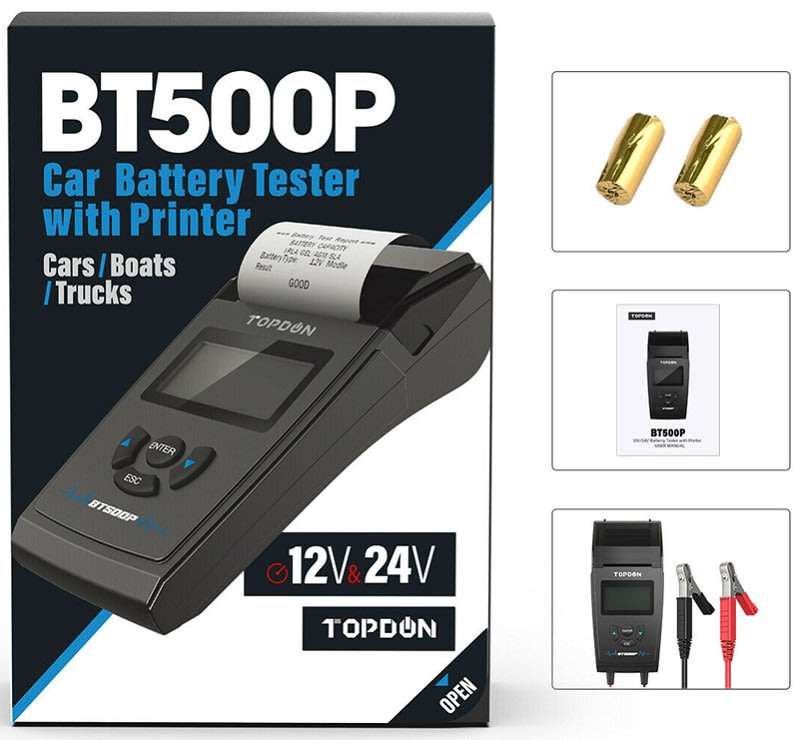

TOPDON BT500P 12V & 24V Car Battery Tester Analyzer With Built in Printer

TOPDON BT500P 12V & 24V Car Battery Tester with Printer Auto Charging Cranking Load Resistance Battery Teste for Motorcycle Cars and Truck

Shipping 5 to 10 working days

We Are The Authorized Distributor Of TOPDON In SA

TOPDON BT500 new-released automotive battery tester, combines the most advanced conductance testing technology to give users an accurate test results of battery condition, starting and charging system, with reverse polarity protection and built-in thermal printer, etc. Quick safe and easy battery test solution for technicians, professionals and DIYers.

Top Reasons:

1. Easy to use and will enable you to check the battery status with ease and simplicity.
2. Provide functions to check battery health, alternator’s charging and starter’s cranking conditions.

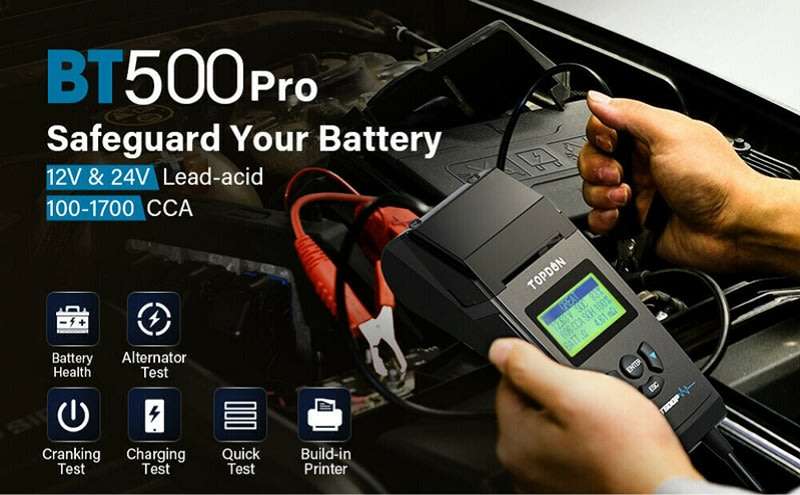

3. Much wider test range (100-1700 CCA) and more accurate test results compared to others.

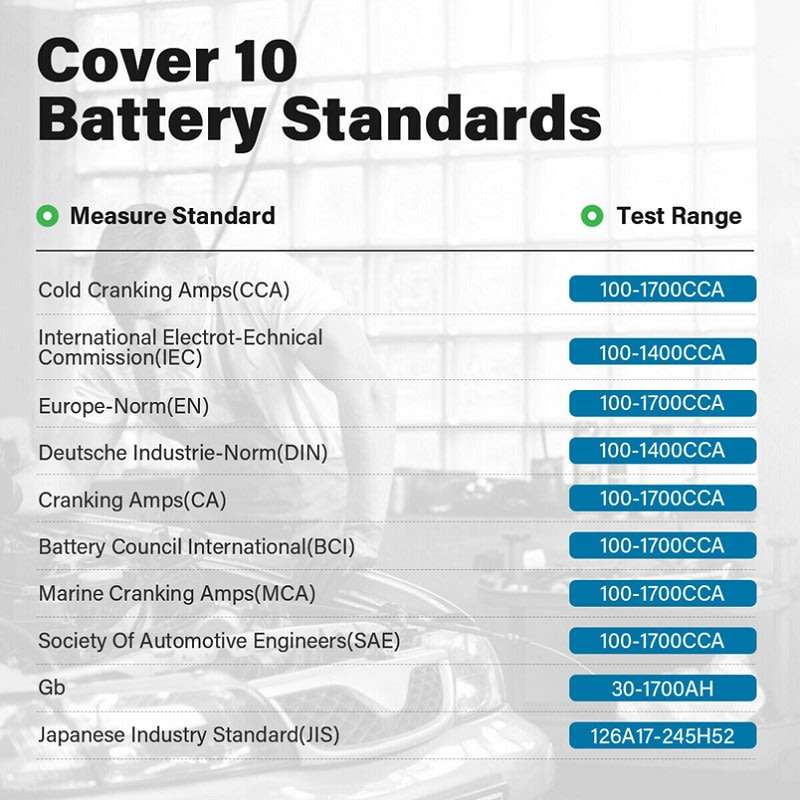

4. Tests all battery rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
5. Compatible with Lead-Acid, regular flooded, AGM flat plate, AGM spiral, gel and deep cycle batteries.
6. Advanced conductive way to test. No need of a fully charged battery before the test.
7. Quick and accurate. The reliable tester offers results in just 10 seconds.
8. Small and compact. The tester is a handy device and a brilliant addition to any automotive toolbox.

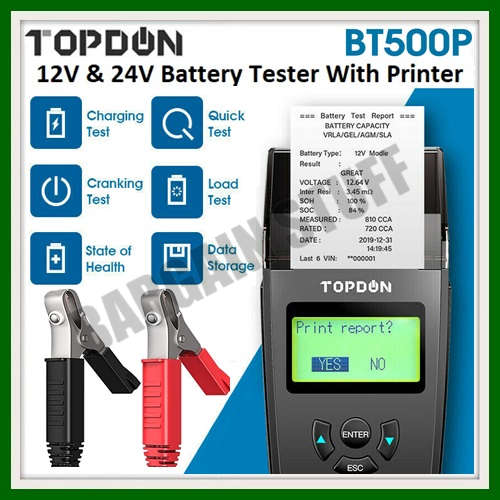

9. Designed with a built-in printer for enjoying the comfort of accessing the data in hard-copy form, for better analysis and rectification.
10. Premium quality copper clip and wire keep guarantee to maintain a stable communication all throughout the testing process.

2 Modes for Battery Testing:

TOPDON BT500P is a great option for those who need to check their automotive batteries on the regular. The tester comes to an innovative user-friendly design of introducing both a “Quick Test” and “Accurate Test” to get a precise estimation of a battery.

1. Quick Test: Takes some of the guidance away from your hands, if you are not sure about the battery type and its CCA value.
2. Accurate Test: is used for getting an accurate reading of your battery’s capacity status.

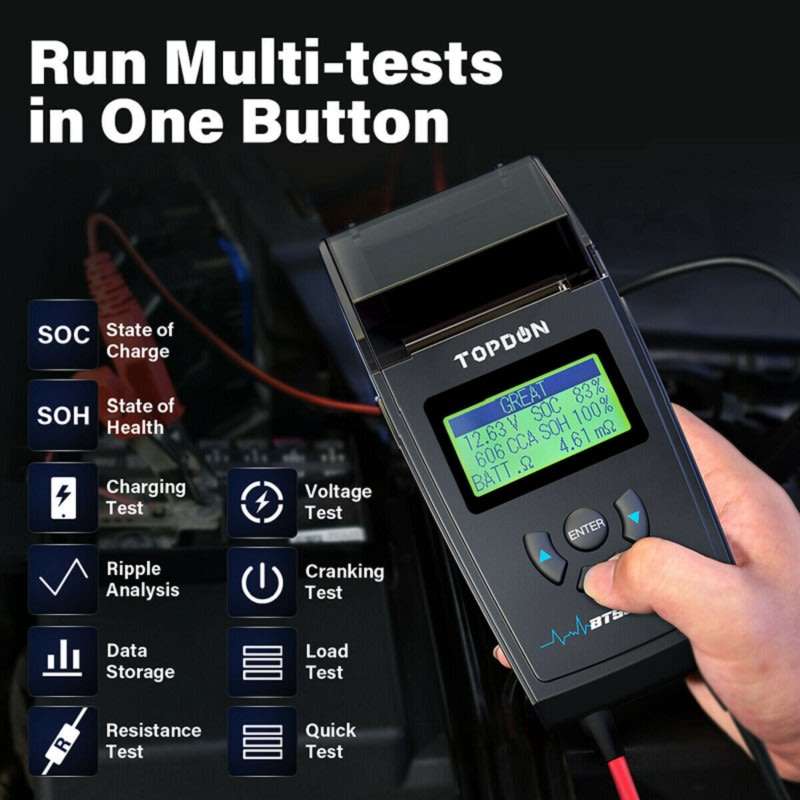

In a nutshell, you can:

1. Display SOH (State of Health, %): Represents a measure of the battery’s ability to store and deliver electrical energy, compared with a fresh battery.
2. Display SOC (State of Charge, %): Expressed as a percentage of its rated capacity, a measure of its condition to assess the potential energy.
3. Display Battery Internal Resistance Value (mΩ): The lower the internal resistance, the more current the battery can output. The value above 15 milliohms indicates a broken battery (12V).

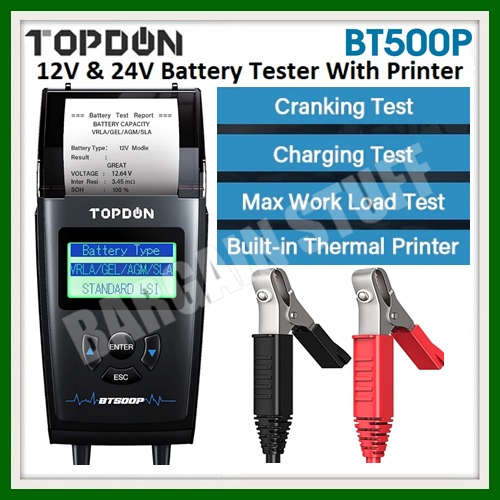

Cranking Voltage Test:

This load tester actually checks the cranking effectiveness of the battery and helps you predict when the battery will fail to crank a vehicle. It displays the Cranking Voltage parameters as follows in seconds:

1. Current Voltage.
2. Instant Minimum Starting Voltage.
3. Standard of Instant Minimum Starting Voltage.

Normally a Cranking Voltage value lower than 9.6V is regarded as abnormal.

Charging System Test:

Chronic undercharging can also cause premature battery failure. The battery tester TOPDON BT500P boasts a thorough charging system test, to help you avoid unpredicted system interruption, and prevent the batteries from being overcharged and over discharged, which may also cause permanent damage to the internal structure of batteries.

By simply following the guidance you will get the test results as follows:

1. Maximum value of output voltage
2. Average value of output voltage
3. Minimum value of output voltage

Check the reference table in the product manual, you will have a basic idea of your charging system status.

Max Work Load Test:

Sometimes, a battery may have enough power to start your engine, but the electrical system can’t support the increased load of operating other electrical things like your headlights or radio. According to the result of the max work load test from TOPDON BT500P, you can get to know the health status of the battery load system, and make sure if the battery is in a good condition.

If > 12.8V (25.60V for 24V), the load system is working well.

If < 12.8V (25.60V for 24V), check the engine belt abrasion and the electrical short circuit.
