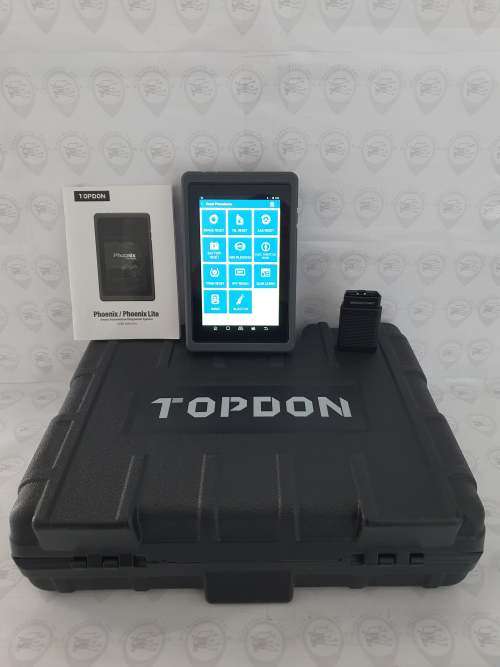

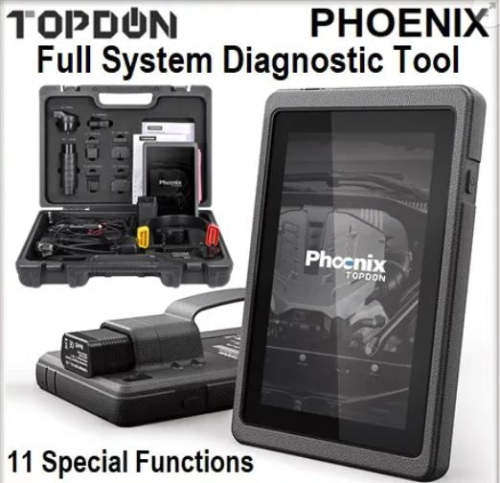

TOPDON PHOENIX FULL SYSTEM DIAGNOSTIC TOOL WITH 11 SPECIAL FUNCTIONS
The TOPDON Phoenix Full System Diagnostic Tool Is An 8-Inch Portable OBDII Scanner With Android System And Wi-Fi Module With 11 Special Functions. It Supports Over 108 Makes And Models Of Vehicles From The USA, Asia And Europe, Which Includes The Huge Ability To Diagnose ALL Electronic Systems. This OBD2 Scanner Comes With A Compact Size And Light Weight. This Makes The Portability And Functionality User-Friendly. The Interface Is Specially Designed For The Android Platform For Easier Work. This 8-Inch Touch Diagnostic Device Is Based On Android 7.0. Communication With The Vehicle Is Via Bluetooth And The VCI Probe. The Wi-Fi Function Is Used To Download Updates And Print Out Reports. Quad-Core 1.3 GHz Processor Ensures Smooth Operations Carried Out In The Background And The Main Screen.

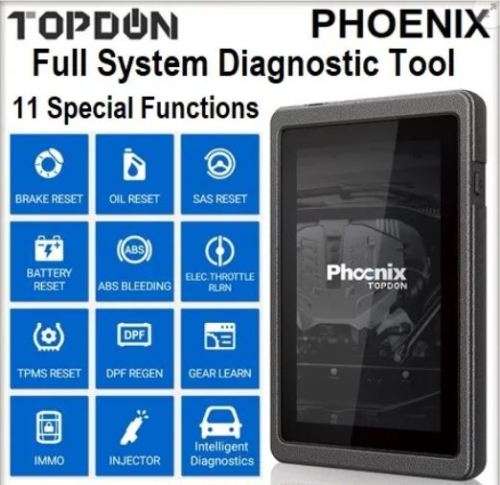

11 SPECIAL FUNCTIONS:
- Oil Reset Functions: Calibration And Reset Of Service Intervals And Oil Life;
- Steering Angle Sensor Calibration: Making Steering Angle Settings, Calibrating Sensor Position;
- Electronic Parking Brake Reset: Reset Brake Pad Wear, Learns The Position And Tension Forces Of The Electronic Parking Brake System;
- Registering And Coding A New Battery: Adjusting The Control Module And Entering The Battery Capacity To The Controller Functions;
- Bleeding The ABS System: Ability To Bleed The ABS Pump After Replacing It With A New One, Adding And Coding, The Ability To Test Each Wheel;
- Electronic Throttle Position Reset: Initializes, Resets And Learns New Throttle Values After A Throttle Is Replaced Or Cleaned (Or Engine Idling);
- DPF Regeneration: Perform Static And Dynamic Regeneration In Workshop Conditions In Service Works;
- TPMS Reset: Tire Pressure Reset And Pressure On And Off Functions In Advanced Functions;
- Matching The Immobilizer: Allows You To Add New Keys, And Remove Old Ones From The System;
- Fuel Injector Coding: Program New Fuel Injector Numbers After Replacing Them, It Will Allow The ECU To Work Properly;
- Adaptation Of The Audio Wheel: Programming Or Replacing Components Related To The Determination Of The Ignition, The Number Of Teeth Of The Crankshaft Must Be Adapted, Thanks To This Function You Will Do It In A Few Seconds;
TOPDON PHOENIX VEHICLE COVERAGE:
Chrysler, Dodge, Jeep, GM, Buick, Cadillac, Chevrolet, Lincoln, Holden, Australian Horton Special; Brazil Fiat; Audi, Landrover, Opel, Porsche, Rover, Saab, Seat, Skoda, Smart, Transporter & V-Class, Volvo, Bugatti, Ferrari, Ikco, Izh, Marthalahti, Martinaston, Paz, Seaz, Uaz, Zaz, Benz, Maybach, BMW, Mini, Rollsroyce, Citroen, Fukang, Fiat, Abarth, Lancia, Romeo, Peugeot, Renault, Dacia, VW, Bingley, Bugatti; Mahindra, Maruti, Tata, Indian Mahindra, Indian Maruti, Indian Tata, Saipa, Daihatsu; Mitsubishi, Subaru, Suzuki, Honda, Acura, Honda, Mazda, Infiniti, Nissan, Toyota, Lexus, Daewoo, Hyundai, KIA, Ssangyong, Samsung; Gaz, Vaz.
TOPDON PHOENIX SPECIFICATION:
- Display Screen: 8-Inch HD High-Definition LCD (Touch Screen)
- OS: Android 7.0
- Processor: Quad Cores 1.3 GHz, With 2 GB Of Processor Memory And 16 GB Of Storage On The Device.
- Camera: 5.0 Megapixel Rear, 2.0 Megapixel Front.
- Battery: 3000mAh Rechargeable Lithium Polymer Battery.
- Connectivity: Bluetooth 4.1, WLAN 802.11b, G, N
- Working Voltage: 9-18v
- Working Temperature: -10 -50
- Bluetooth Range: Within 100 Meters.
- Dimensions: 205.2 * 110.7 * 40.0 (Mm)

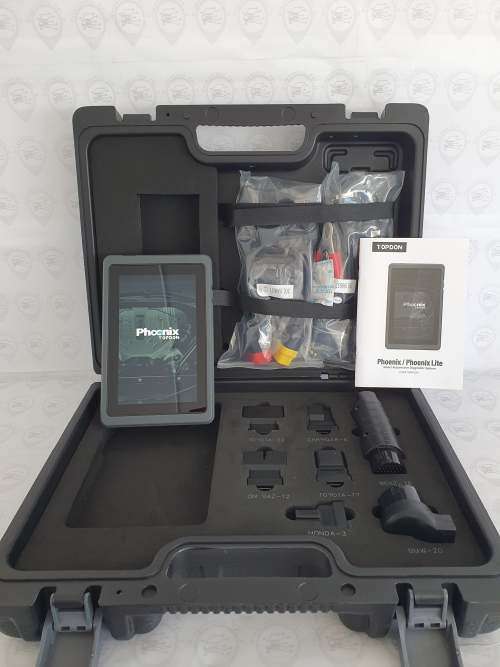

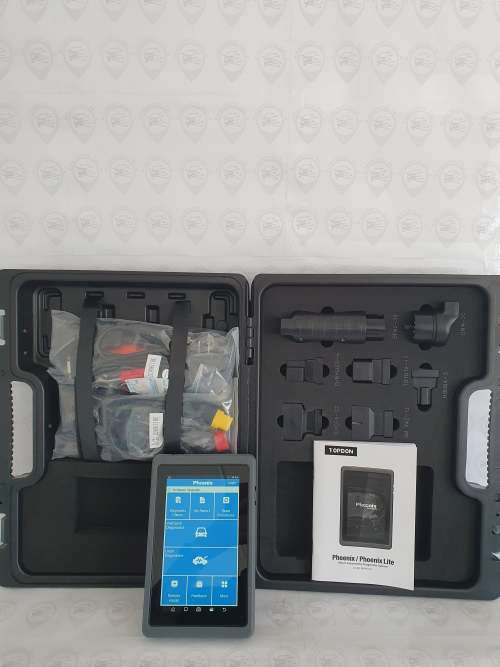

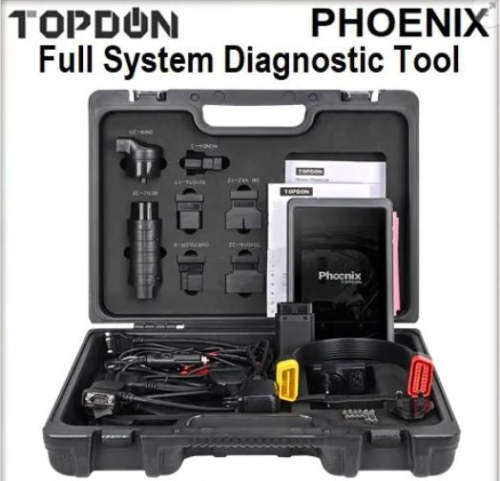

TOPDON PHOENIX CONTENT LIST:
- Phoenix Tablet.
- VCI Module.
- OBDII Extension Cable.
- Battery Clamps.
- User Manual.
- Envelope With Password.
- USB Power Supply.
- USB Cable.
- OBDII Adapter.
- BEN-38 Adapter.
- BMW-20 Adapter.
- CHRYSLER-6 Adapters.
- FIAT-3 GM / VAZ-12 Adapter.
- HONDA-3 Adapter.
- MITSUBISHI / HYUNDAI-12 + 16 Adapter.
- NISSAN-14 + 16 Adapter.
- TOYOTA-17 Adapter.
- TOYOTA-22 Adapter.
