Tork Craft Chuck & Key 5 - 20.0mm B22 Taper

Name: Tork Craft Chuck & Key 5 - 20.0mm B22 Taper
SKU: CM20-5
Price: 479.00 ZAR
Availability: InStock

305 available / new

Indicative market price: R510.00

R479.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Northern Bolt & Tool591

99.42 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

CM20-5

Bob Shop ID

640231601

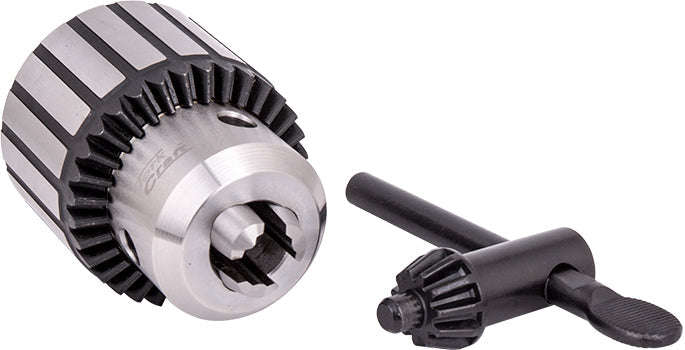

20mm Drill Chuck with key

CHUCK & KEY 5 - 20.0MM B22 TAPER 20mm Keyed chuck with B22 taper. A correct taper adapter may be required to fit the chuck to your machine application. This version is B22 (Metric DIN standard).

B22 taper
- Large taper diameter: 21.793mm
- Small taper diameter: 19.80mm
- Taper length: 40.50mm
Opening capacity: 20mm
All metal construction
Chuck key included

Installation Info
Clean both tapers of all grease and grit. With the chuck jaws completely retracted into the chuck and using a thin piece of wood to protect the chuck nose, tap the chuck into place on the spindle/taper adaptor.

To remove chuck from arbor
Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right.

By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft.
