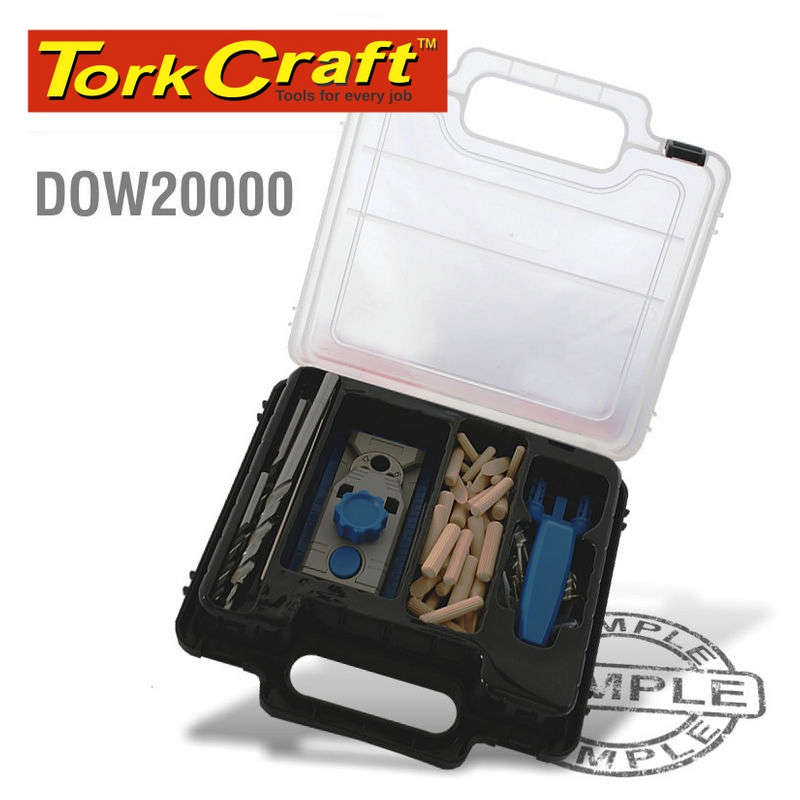

Tork Craft Doweling And Pocket Hole Jig Kit

The kit consists of the following:

• (x1) Drill guide with handle
• (x1) Square drive bit
• (x1) Hex key wrench
• (x1) Drill stopper
• (x1) 6mm wood drill bit
• (x1) 8mm wood drill bit
• (x1) 10mm wood drill bit
• (x10) 6x30mm wooden dowel pins
• (x10) 8x40mm wooden dowel pins
• (x10) 10x40mm wooden dowel pins
• (x10) Wooden plugs
• (x20) Wood screws

To use the kit with both functions, you need the following:

• A portable drill with chuck capacity of 10mm or higher.
• A G-clamp
• A Mallet

Setting up the pocket hole jig correctly:

1. Tilt the front stop to the downward position.
2. Clamp the jig down flush with the front stop against the timber.
3. Ensure that the Drill stopper (collar) is tightened on the 9.5mm drill bit in the correct depth stop position.
4. Tighten the 9.5mm drill bit in the chuck of the portable drill.

Remove the G-clamp and the jig. Align the timbers to form the joint. Clamp the timbers together to prevent movement whilst driving in the wood screw with the supplied square drive bit. The wooden plugs can be inserted with a mallet afterwards.

Setting up the doweling jig correctly:

1. Insert the supplied handle into the pocket drilling guide holes.
2. Tilt the front end stop to the upward position
3. Adjust the guide collar to the corresponding diameter drill bit 6,8 or 10mm by loosening the blue knob.
4. Align the jig on the timber with the mearuments embosed on the base of the jig
