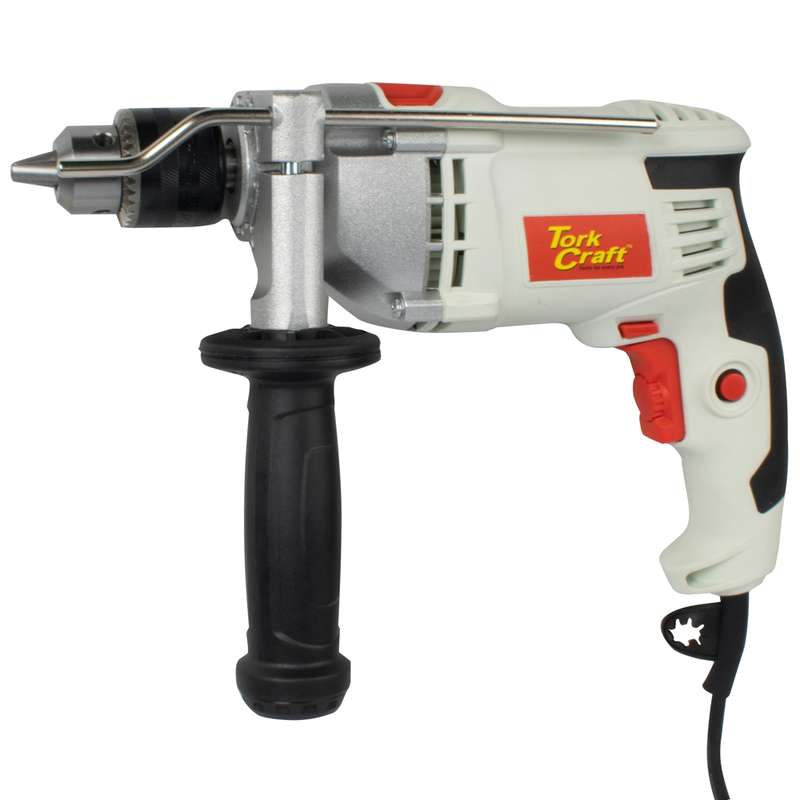

TORK CRAFT - IMPACT DRILL 13MM 850W 3000RPM 220V TCID0850

IMPACT DRILL 13MM 850W 3000RPM 220V

TorkCraft - Impact Drill 850W

Max RPM: 0 - 3000
Voltage: 220-240 (50Hz)
Wattage: 850

Application:

Drilling into various steel, plastic, wood and masonry using various drill bits and accessories.

Max RPM: 0 - 3000
Max Chuck Capacity: 13 mm (Keyed)
Drilling Capacity: Wood 23mm, Steel 13mm and Masonry 13mm
Max Impact Rate: 0-48000 BPM
Wattage: 850W
Voltage: 220-240 (50Hz)
Modes: Drill & Hammer
Variable speed control dial
Trigger lock on button

Accessories Included

Impact Drill
Chuck key
Depth stop rod
Auxiliary handle

Installing Accessory Bits

Use the provided chuck key to either lock/unlock. Turn the chuck anti-clockwise until the drill chuck opening is large enough to accept the accessory. Insert the accessory into the drill chuck. Turn the ring clockwise until the tool is clamped tightly. Use the chuck key to properly lock the chuck.

Installing Auxiliary handle

To mount the Auxiliary handle, loosen the screw on the handle by turning the plastic part anti-clockwise Mount the handle over the chuck collar till it is flush with the flat surface of the front of the drill. Turn the handle plastic part clockwise to clamp it in place.

Trigger lock

To lock the trigger, depress the lock in button situated at the side of the handle with one hand, while the other hand is depressing the trigger.

Rotation setting

Reverse: to select reverse rotation, push the lever to the right side of the drill Forward: to select forward rotation, release the on/off switch and push the lever to the left side of the tool.
