Cutting Depth: 5/8"
Classification: Standard (Yellow)
-->

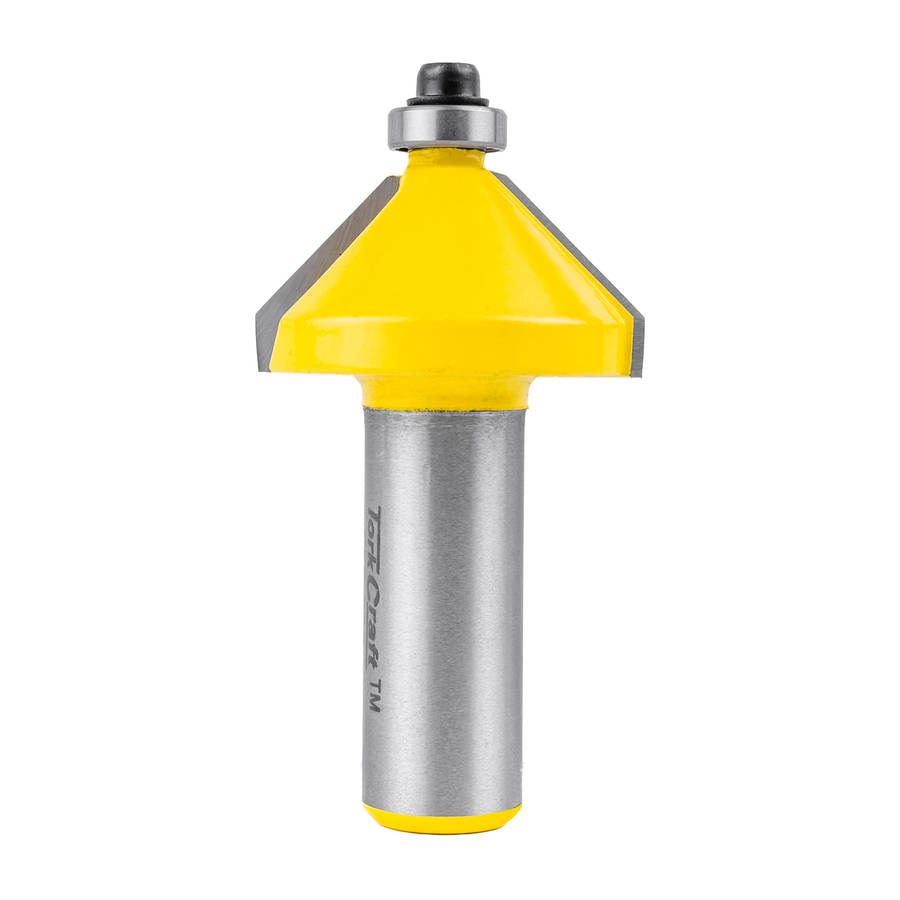

The Chamfer Router Bit is an indispensable edge-forming tool in woodworking, specifically engineered to cut a
precise, flat beveled angle into the sharp, 90-degree corner of a workpiece.
Defined by its straight cutting edge set at an angleâ"most commonly 45°, but also available in 22.5°,
30°, and other degreesâ"this bit allows you to create a crisp, clean diagonal face on an edge. It is a highly
versatile tool, most frequently used to soften a sharp edge for comfort and visual appeal, or to add a refined,
subtle decorative detail to furniture, tabletops, and built-ins.
Beyond simple edge detailing, the chamfer bit is critical for creating perfect, tight-fitting miter joints for
multi-sided projects like custom boxes, picture frames, and planters, as the angled cut ensures a seamless corner
without complex saw setups.
Most chamfer bits feature a guide bearing at the tip, which rides along the edge of the material to control the
depth and width of the cut, ensuring perfectly consistent results with minimal setup.
Application:
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 80(W) x 45(H)mm |
| Package Weight | 100g |
| Tool Dimensions | 60(L) x Ø32mm |
| Tool Weight | 78g |
| Cutting Diameter | 1 - 1/4" |
| Cutting Depth | 5/8" |
| Shank Diameter | 1/2" |
| Shank Length | 32mm |
| Bearing | 1/2" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Chamfer Router Bit |
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 73(H)mm |
| Weight (box/pack) | 0.9kg |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 360(W) x 380(H)mm |
| Weight (box/pack) | 9.4kg |
| Qty (box/pack) | 100 |
