Cutting Diameter: 1/2"
Classification: Standard (Yellow)
-->

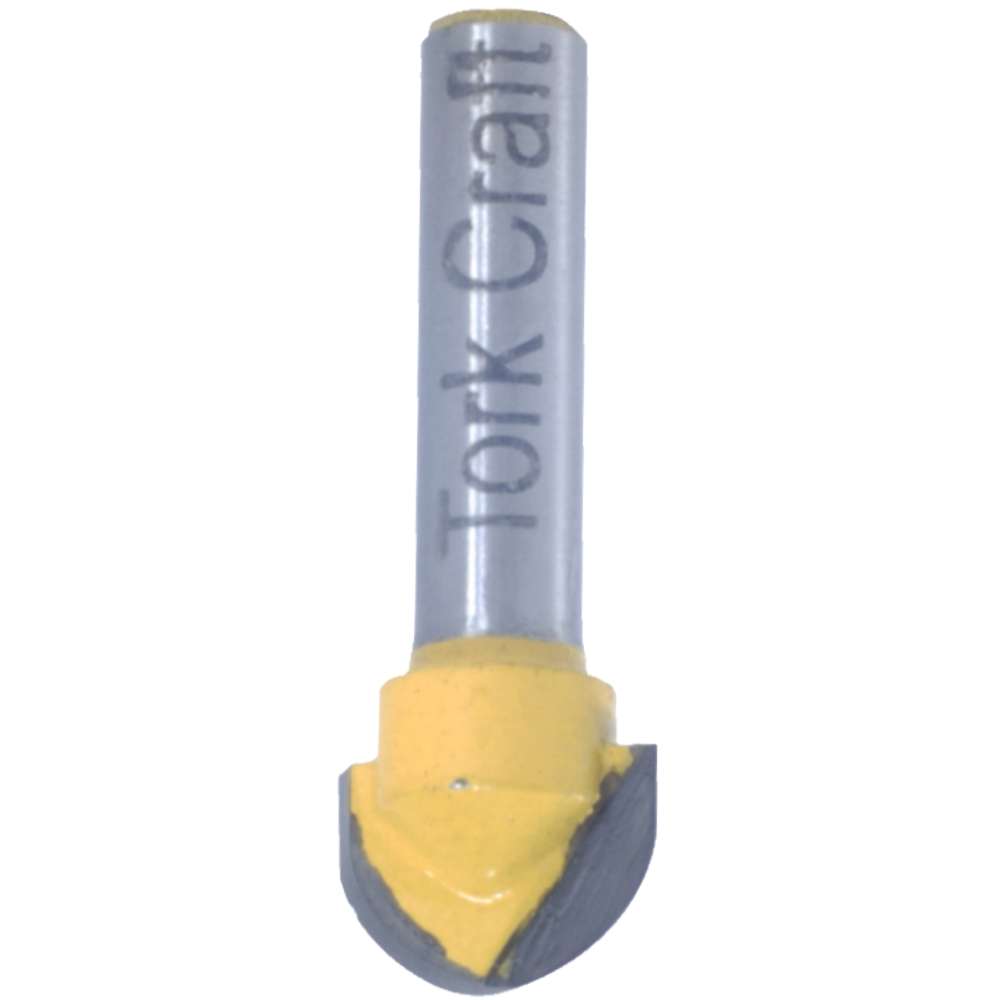

The Core Box Router Bit is an essential tool for creating a variety of decorative and functional rounded grooves,channels, and slots in woodworking projects.
Characterized by its half-round (or semi-circular) cutting profile and typically made with durable materials likeTungsten Carbide Tips (TCT) for superior sharpness and longevity, this bit is designed to plunge into the materialto form a round-bottom groove.
Its primary application is to produce a round bottom groove or channel, ideal for decorative work like fluting oncolumns, creating reeding patterns, veining, or general ornamentation on furniture and panels. By using an edgeguide, it can also be used to cut coves. Compatible with hand-held, table-mounted, and CNC routers, Core Box Bitsare versatile for use with a wide range of materials including hard woods, soft woods, plastics, and variouscomposite materials.
Available in various diameters and corresponding radius measurements, selecting the correct shank size for yourrouter's collet is crucial for both safety and optimal performance.
Application:
- Router bits are for use with router machines only.
- Be sure that at least 3/4 of the shaft length is inserted into the router collet.
- Do not 'bottom-out' the bit in the collet. The shank should be 1/8' from the bottom of the collet.
- Route in two or more passes when large amounts of stock must be removed.
- Carpenters
- Craftsmen
- Hobbyists
- Woodworking
- DIY
Features
Features
- Core box (round-nose) profile for semicircular grooves and flutes.
- ½ (12.7 mm) cutting diameter creates pronounced, wide channels.
- Precision-ground cutting edges for smooth surfaces and reduced fuzzing.
- Balanced, rigid body helps minimise vibration and chatter.
- Router-collet compatible match shank to the correct collet size.
Benefits
- Clean round bottoms: less post-routing cleanup versus straight bits.
- Consistent results: accurate tracking with fences, jigs or templates.
- Versatile: ideal for furniture accents, signage and architectural fluting.
Specifications
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide
Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
-->
| Package Weight | 33.99g |
| Tool Dimensions | 43.55(L) x Ø12.7mm |
| Tool Weight | 13.50g |
| Cutting Diameter | 1/2" |
| Cutting Depth | 3/8" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Radius | 1/4" |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Core Box Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 462g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 5.38kg |
| Qty (box/pack) | 100 |
Documents
Download the Specification sheet
