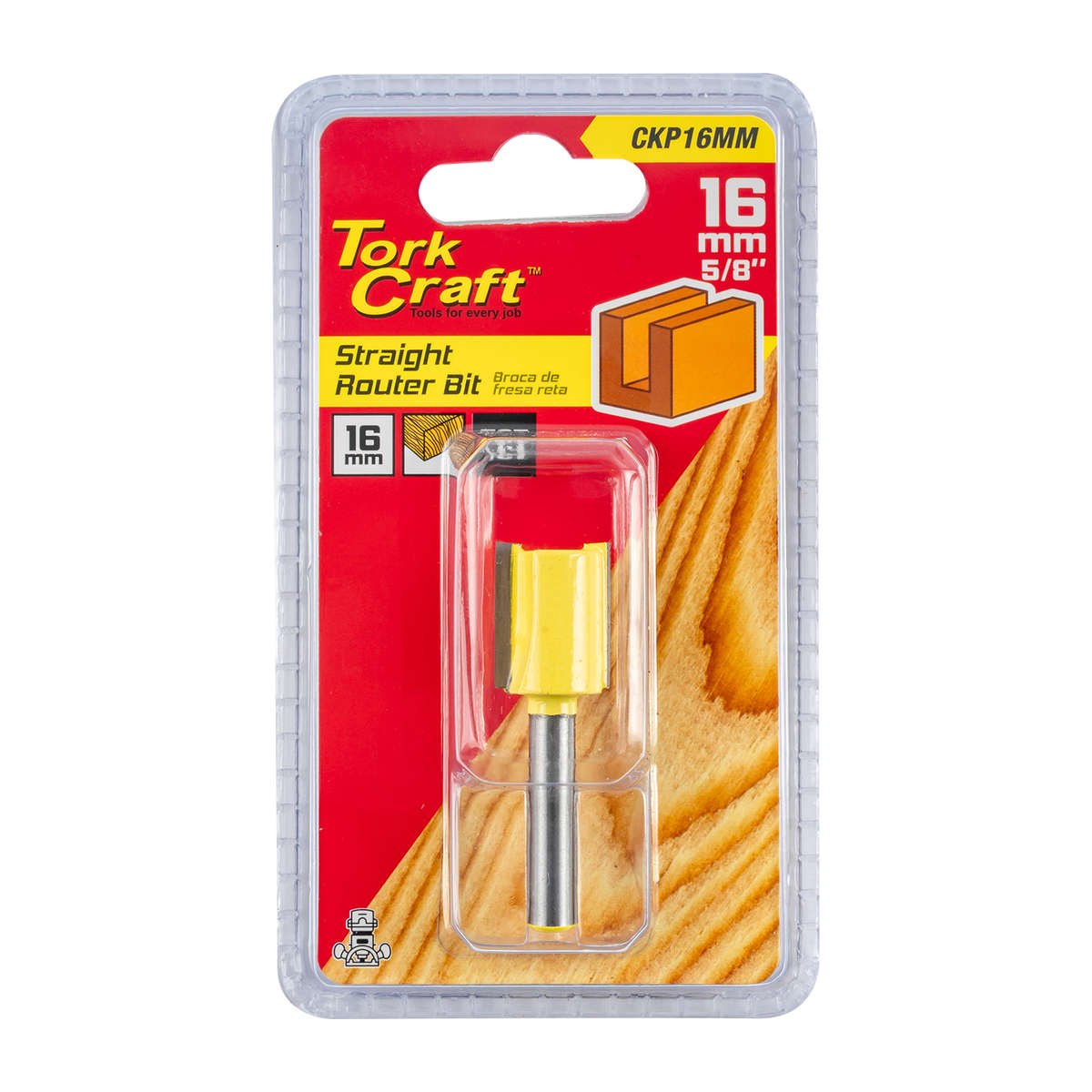

Cutting Diameter: 16mm
Classification: Standard (Yellow)
-->
The Two-Flute Straight Router Bit is an indispensable tool for woodworkers and fabricators requiring a blend ofspeed and superior finish in their straight-line cutting operations.
Featuring two balanced, opposing cutting edges measured in precise metric diameters, this bit offers reducedvibration and a smoother cut compared to single-flute alternatives. The dual-flute design ensures that two cuttingstrikes occur per revolution, leading to a much cleaner finish on the material surface and edges.
This robust bit is ideally suited for creating high-quality, professional grooves, dadoes, rabbets, and preciseedge-trimming in a wide range of materials, including hardwoods, softwoods, plywood, and various composite sheets,making it a highly versatile and essential addition for both table-mounted and handheld metric routing applications.
Application:
- Router bits are for use with router machines only.
- Be sure that at least 3/4 of the shaft length is inserted into the router collet.
- Do not 'bottom-out' the bit in the collet. The shank should be 1/8' from the bottom of the collet.
- Route in two or more passes when large amounts of stock must be removed.
- Carpenters
- Craftsmen
- Hobbyists
- Woodworking
- DIY
Features
Features
- Straight profile for clean, square-walled cuts.
- 16 mm cutting diameter efficient width for dados and rebate clean-outs.
- Precision-ground edges help reduce tear-out and burning.
- Rigid body minimizes chatter in deeper passes.
- Router-collet compatible (use the correct shank/collet size).
Benefits
- Clean finish: flat-bottom grooves with minimal sanding.
- Accurate tracking: performs well with fences, jigs and templates.
- Versatile: suitable for joinery and general shop routing tasks.
Specifications
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide
Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 45.85g |
| Tool Dimensions | 47.96(L) x Ø16mm |
| Tool Weight | 24.46g |
| Cutting Diameter | 16mm |
| Cutting Depth | 25mm |
| Shank Diameter | 1/4" |
| Shank Length | 30mm |
-->
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 497g |
-->
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 5.68kg |
-->
Safety
Safety
- Wear eye & hearing protection; use a dust mask or extraction.
- Secure the workpiece; feed against bit rotation to prevent kickback.
- Let the router reach full speed before engaging; stop fully before lifting out.
- Inspect bit and collet regularly; replace if worn or damaged.
