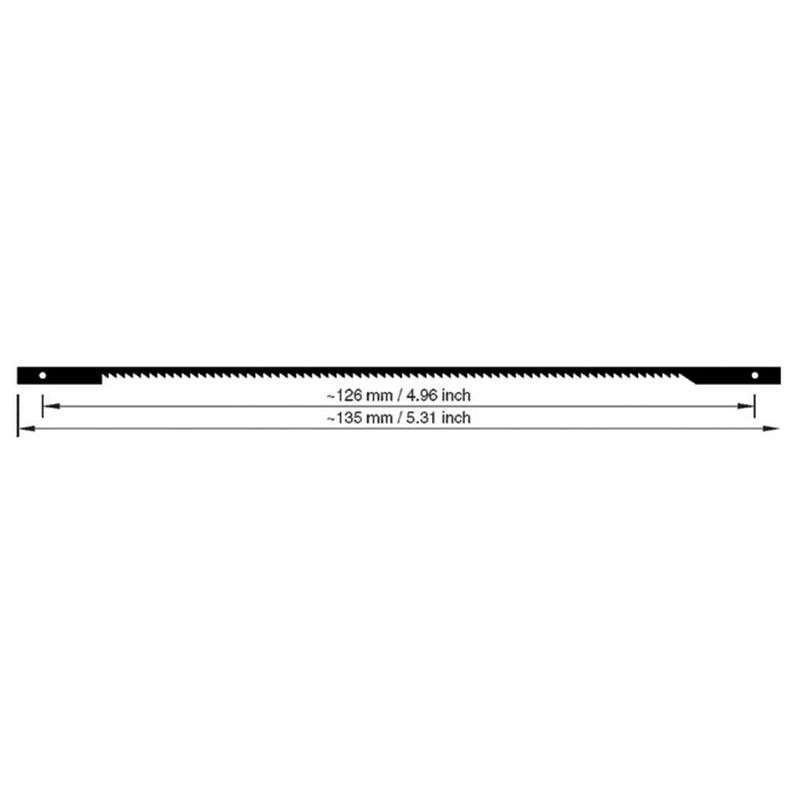

Pinned blades 127mm (5') for a scroll saw.
LENGTH: 127mm (5') between pins
TPI: 18.5
PINS: Yes
The blades are manufactured to be used with scroll saws.
There are various blade types available in the range with different teeth styles for different uses.
A minimum pilot hole of 4.7mm is required for cut-outs. Take a look at the chart below to select the correct blade for the recommended material and thickness.
CODE | TPI | TOOTH | APPLICATION + MAX. MATERIAL THICKNESS |
42401 | 18.5 | Skip tooth | Very thin cuts in hard and soft woods. 19mm |
40501 | 20 | Regular | Thin cuts in hard and soft woods. 19mm |
41001 | 7 | Hook | Cut thick hard and soft woods. 51mm |
41101 | 15 | Regular | General purpose blade for woods & plastic. 19mm |
41201 | 10 | Regular | Fast cutting of hard and soft woods. 19mm |
42003 | 9/5 | Skip tooth | Fast cut blade with reversed teeth for woods. 19mm |
42701 | 25 | Regular | Fine cuts in aluminium, plastic, soft woods & veneer to 19mm |
DEFINITION:
TPI - Teeth per inch. The amount of teeth measured between 25.4mm
Note:
Some blades have reversed teeth for fast paced cutting. Take care when using these blades as the blades can lift up your project from the scroll saw table when cutting.
