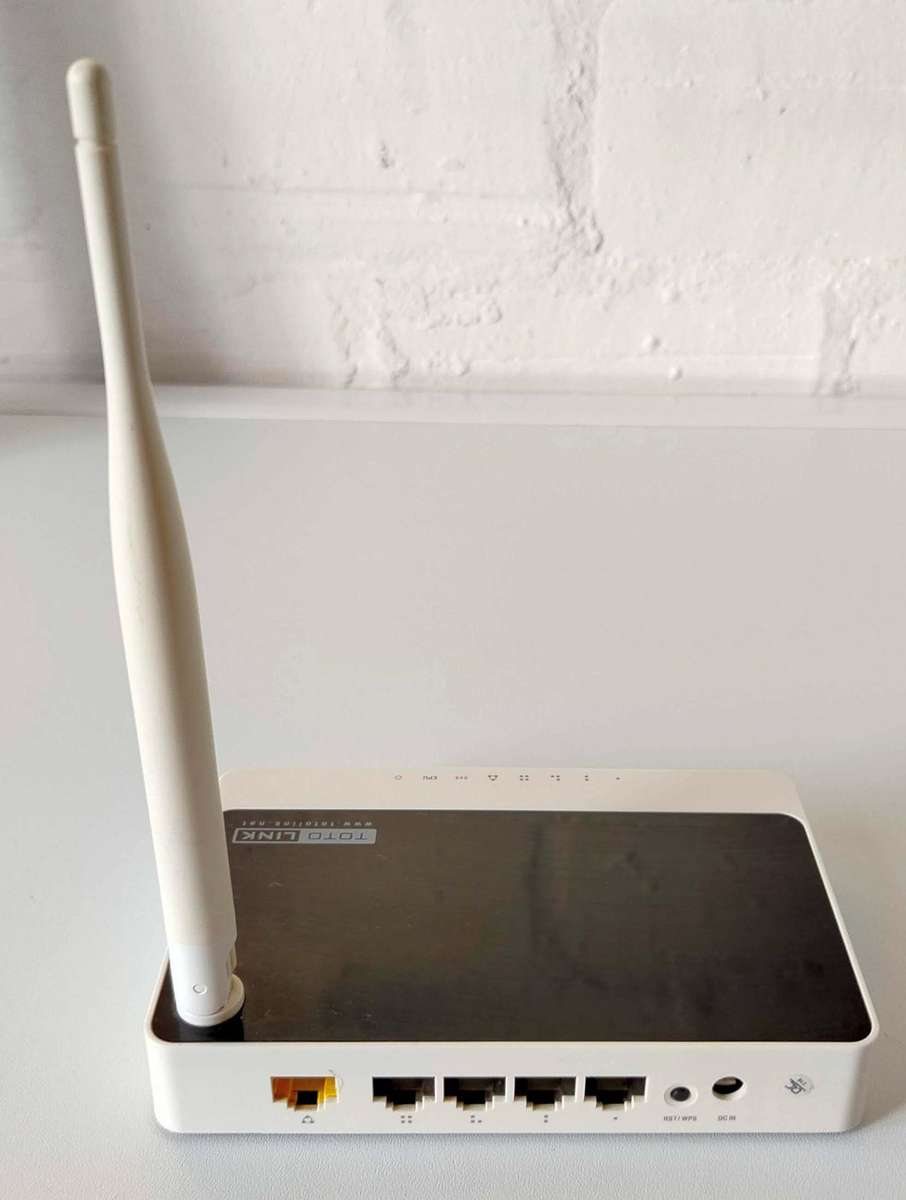

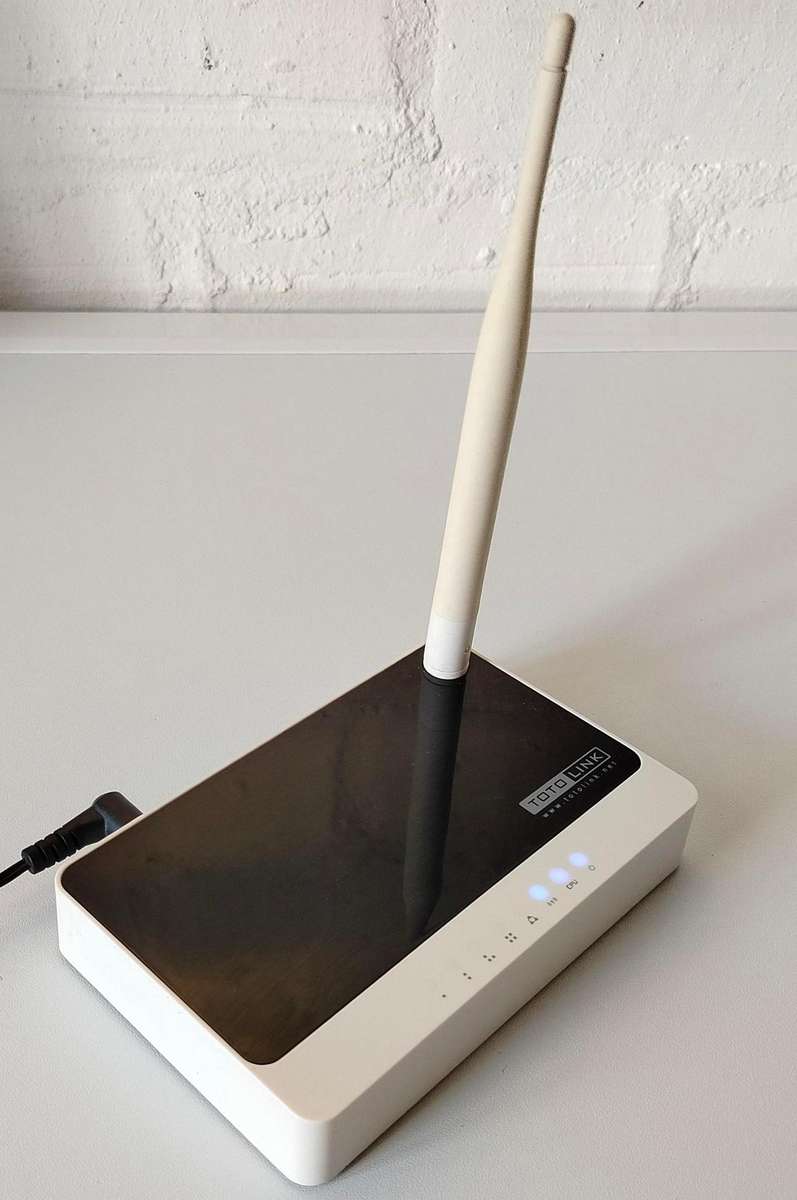

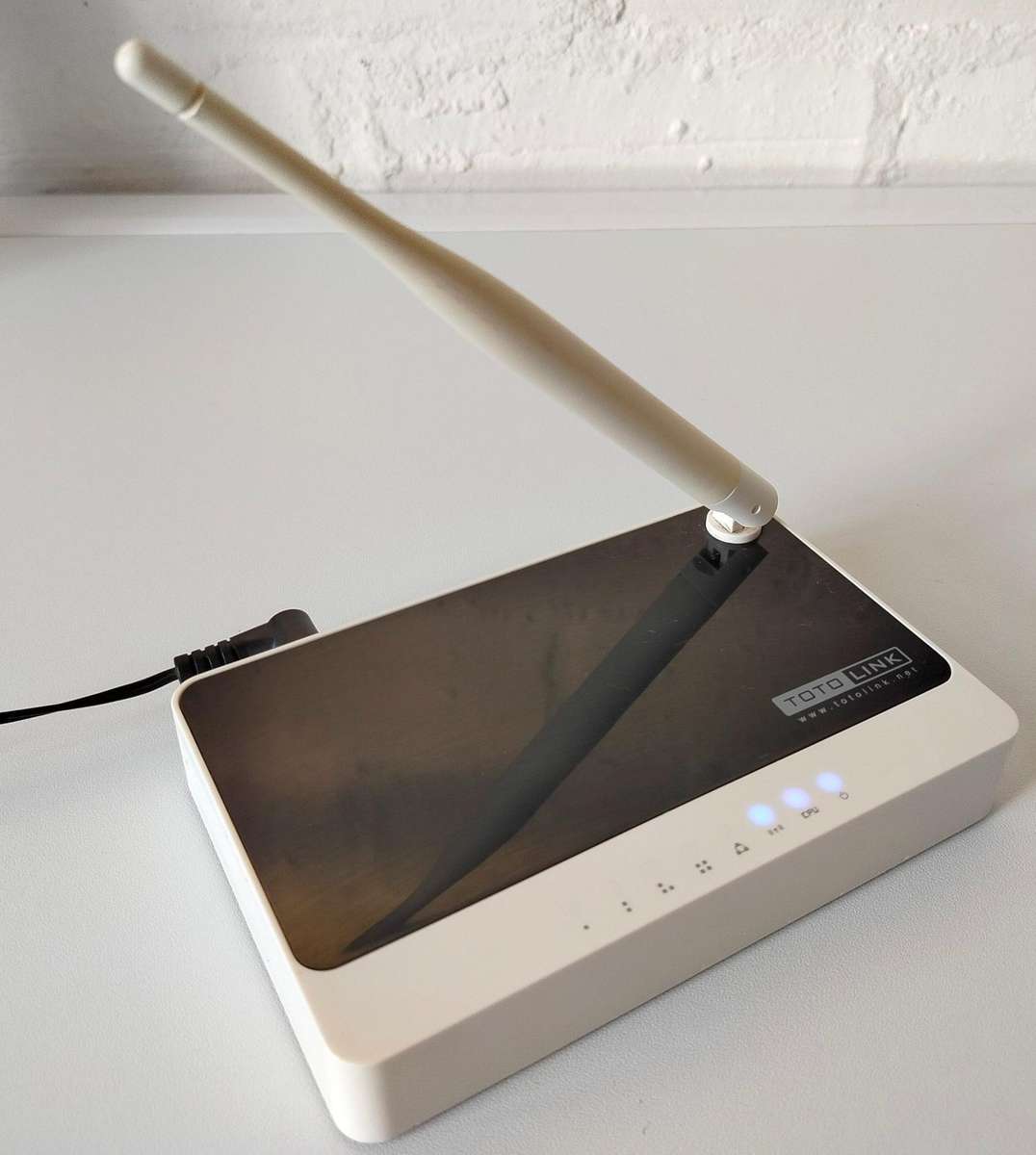

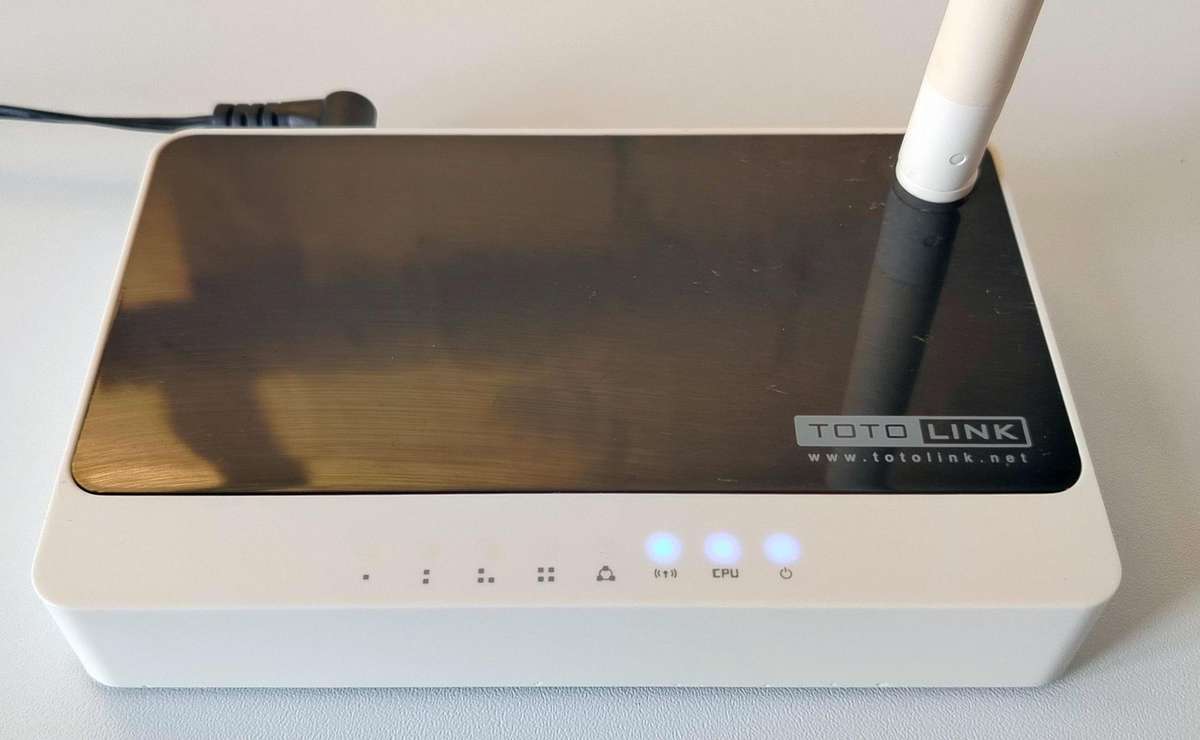

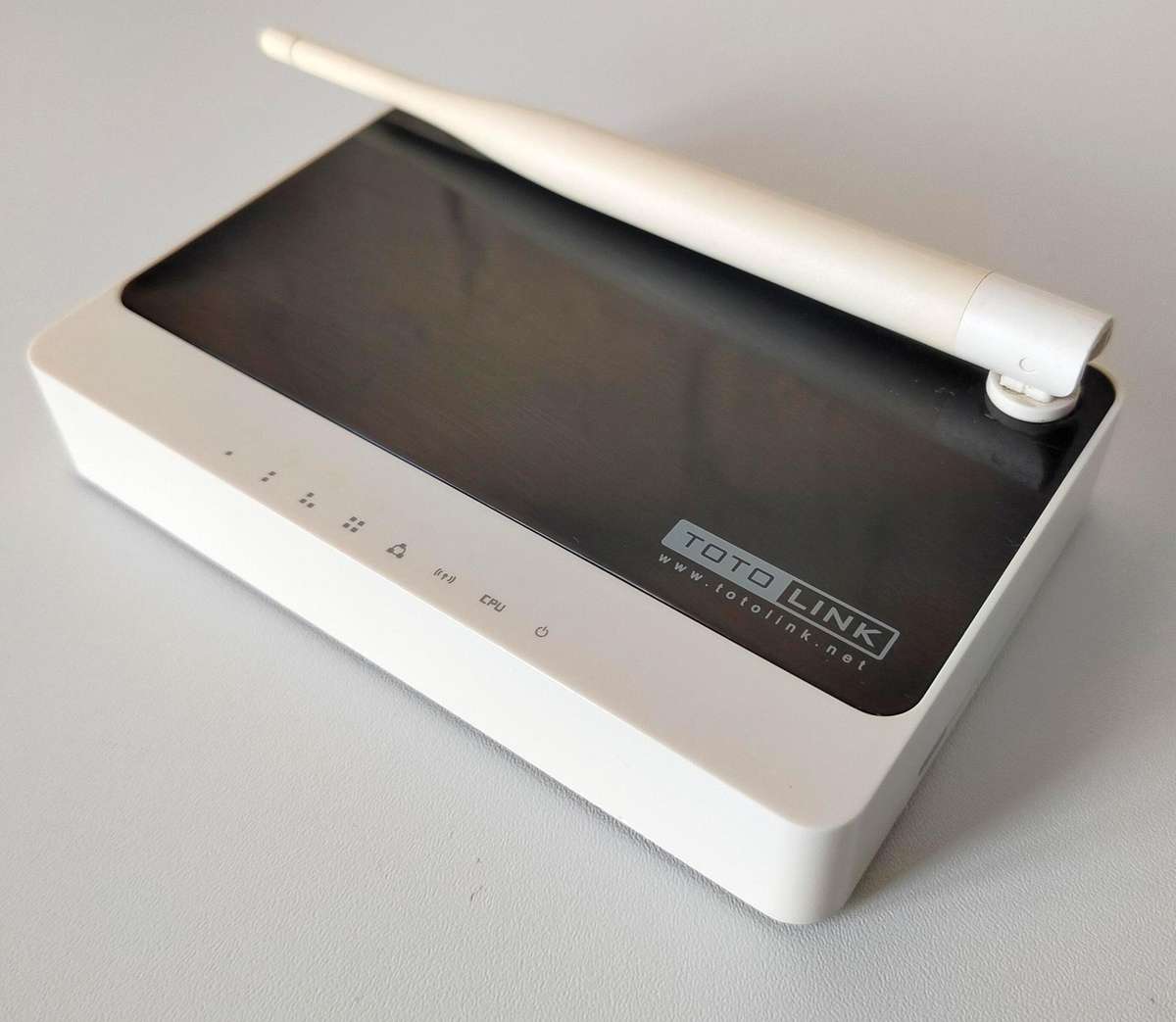

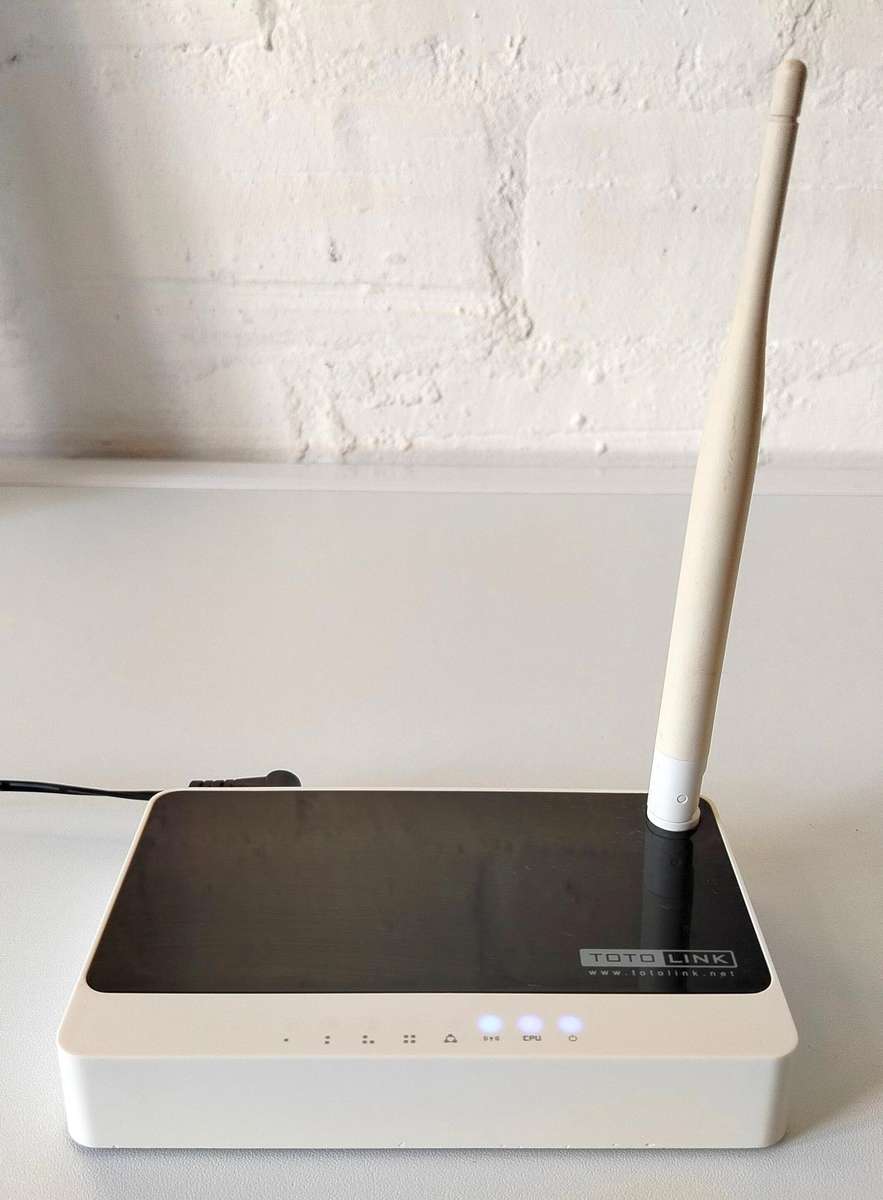

100% Working. Power adapter included. See pictures.
| Hardware | |
| Interface | - 4 *10/100Mbps LAN Ports - 1 *10/100Mbps WAN Port |
| Button | - 1 *RST·WPS Button, 1 *Power ON/OFF Button |
| LED Indicator | - 1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN |
| Antenna | - 1*5dBi Fixed Antenna |
| Dimensions (L x W x H) | - 5.8 x 3.0 x 1.0 in. ( 147.5 x 76 x 25 mm) |
| Wireless | |||||
| Standards | - IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | ||||
| RF Frequency | - 2.4~2.4835GHz | ||||
| Data Rate | - 802.11n: up to 150Mbps - 802.11g: up to 54Mbps (dynamic) - 802.11b: up to 11Mbps (dynamic) | ||||
| EIRP | - < 20dBm | ||||
| Wireless Security | - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) | ||||
| Reception Sensitivity | - 135M: -65 dBm@10% PER - 54M: -68 dBm@10% PER - 11M: -85 dBm@8% PER - 6M: -88 dBm@10% PER - 1M: -90 dBm@8% PER | ||||
| Software | |
| Operation Mode | - Router Mode - Repeater Mode - AP Mode - WISP Mode |
| Network | - VLAN, IPv6 |
| WAN Type | - DHCP/Static IP/PPPoE(Dual access)/PPTP(Dual access) /L2TP(Dual access) |
| Wireless Functions | - Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
| Schedule | - Reboot Schedule, Wireless Schedule |
| Firewall | - MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ |
| Management | - Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control |
