Touch Auto Leveling Sensor Auto Bed Leveling Sensor BLTouch For 3D Printers
New
Indicative market price: R799
R418.36
48% OFF
Closed
28 Feb 21 22:51
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
1760501
Bob Shop ID
502128010
Touch Auto Leveling Sensor Auto Bed Leveling Sensor BLTouch For 3D Printers
Package weight: 0.02 kg
Overall:
The Auto Leveling sensor is a device that uses the hall effect to achieve Leveling.
The Position of the point can be obtained by touching the point on the heated bed and then compensated by adjusting the Z axis height during printing
Printing can also be achieved even though the heated bed is not flat
Specifications:
Voltage: 5V
Current: 15mA
Max Current(Peak): 300mA
Shell Material: PC
Cable Length: short 200mm long 1000mm
Wiring:
3Pin:
Green:: -GND
Red: +5V
Orange: Signal Cable
2Pin:
Black: -,GND
White:Zmin

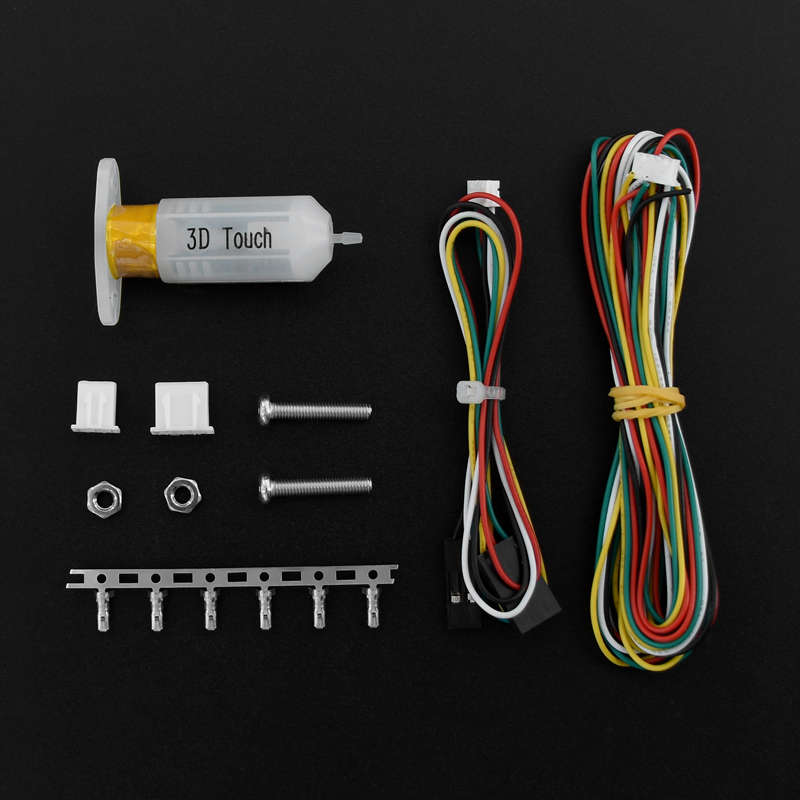

Package Included:
1* Leveling Sensor
1* 200mm Cable
1* 1000mm Cable
2* M3 nuts and screws
2* XH2.54mm Terminals
1* Coiling Terminal
Overall:
The Auto Leveling sensor is a device that uses the hall effect to achieve Leveling.
The Position of the point can be obtained by touching the point on the heated bed and then compensated by adjusting the Z axis height during printing
Printing can also be achieved even though the heated bed is not flat
Specifications:
Voltage: 5V
Current: 15mA
Max Current(Peak): 300mA
Shell Material: PC
Cable Length: short 200mm long 1000mm
Wiring:
3Pin:
Green:: -GND
Red: +5V
Orange: Signal Cable
2Pin:
Black: -,GND
White:Zmin
Package Included:
1* Leveling Sensor
1* 200mm Cable
1* 1000mm Cable
2* M3 nuts and screws
2* XH2.54mm Terminals
1* Coiling Terminal
