This is the repair manual for the Toyota 5L-E engine.
A must have for any Toyota owner and comes in very handy when ordering parts or making repairs. The manual covers the complete tear down and rebuild, pictures and part diagrams, torque specifications, maintenance, troubleshooting, etc. You name it and its in here.
Covers
5l belt install
5l components
5l crank angle sensor
5l drive belt components
5l ECD system diagram
5l engine components
5l engine removal
5l engine unit components
5l front oil seal install
5l front oil seal removal
5l front seal components
5l head components
5l head install
5l head removal
5l injector nozzle components
5l injector pump components
5l rear oil seal components
5l service specs
5l torque specs
5l venturi components
5l-e engine sup. Rm817e
Cam install
Cam removal
ECD system
Engine timing belt components
Engine unit disassembly
Engine unit reassembly
Pressure sensor
rar oil seal install
Rear oil seal removal
Timing belt install
Timing belt removal
Valve clearance adjustment
Searchable document with bookmarks.
About the 5L-E engine

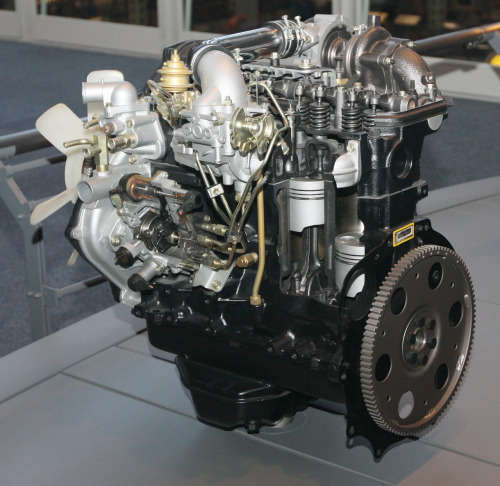

The 5L-E is a 3.0 L (2,986 cc) EFI version of the 5L engine. It is the latest member of the L family. It has a bore of 99.5 mm and stroke of 96.0 mm, with a compression ratio of 22.2:1. Output (as fitted to the Hilux is 97 PS (71 kW) at 4,000 rpm with 192 N·m (142 ft·lb) of torque at 2,400 rpm. Power output varies according to fitment. The engine number is found on the top face of the block at the front of the engine.
Applications:
Toyota Hilux
Toyota Land Cruiser Prado (J90-series)
Toyota Hiace (fifth generation, H200-series)
Format: Pdf
Language: English
Compatible: Win/Mac
All workshop and service repair manuals are in a digital Adobe Pdf format. Tons of pictures and diagrams at your fingertips!!
Why get grease over your manual? All pages are printable, so run off what you need & take it with you into the home, office or repair shop.
