Toyota Engine 7M-GE & 7M-GTE Service Manual (E-book)

This is the service manual printed for the Toyota Engine 7M-GE & 7M-GTE .

A must have for any Toyota owner and comes in very handy when ordering parts or making repairs.  The manual covers the complete tear down and rebuild, pictures and part diagrams, torque specifications, maintenance, troubleshooting, etc. You name it and its in here.

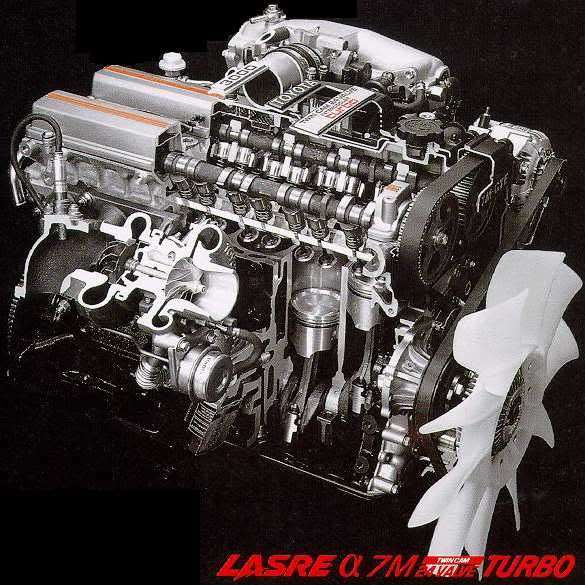

The Toyota 7M-GE introduced in the early months of 1986 is a 3.0 litre (2954 cc) 24-valve (4 valves per cylinder) DOHC/fuel injected engine. The valves are spaced at a performance-oriented 50° angle. Cylinder bore is 83 mm (3.27 in) and stroke is 91 mm (3.58 in)

The turbocharged 7M-GTE was produced from 1986 to 1992. Output was 232 hp (173 kW) at 5600 rpm and 240 ft·lb (325 N·m) at 4000 rpm for most 5 psi (0.34 bar) versions. It was Toyota's top performance engine until it was replaced by the 2JZ-GTE.

Format: Pdf
Language: English
Compatible: Win/Mac

All workshop and service repair manuals are in a digital Adobe Pdf format. Tons of pictures and diagrams at your fingertips!!

Why get grease over your manual?  All pages are printable, so run off what you need & take it with you into the home, office or repair shop.
