Toyota Hilux 2RZ-FE and 3RZ-FE engine repair manual (E-book)

Toyota Hilux 2RZ-FE and 3RZ-FE engine repair manual

The Toyota RZ engine family is a straight-4 piston engine series. The RZ series uses a cast iron engine block and aluminum SOHC or DOHC cylinder heads. It has MFI fuel injection, 2 or 4 valves per cylinder and features forged steel connecting rods.

2RZ-FE
The 2RZ-FE is a 2.4 L (2438 cc) version built in Japan. Bore is 95 mm and stroke is 86 mm. Output is 142 hp (106 kW) at 5000 RPM with 160 ft·lbf (217 N·m) of torque at 4000 RPM. This engine does not feature balance shafts. It has four valves per cylinder and DOHC. Valve adjustment is by shim over bucket.

Applications:

1995-2004 Toyota Tacoma 4x2
1989-2004 Toyota Hiace

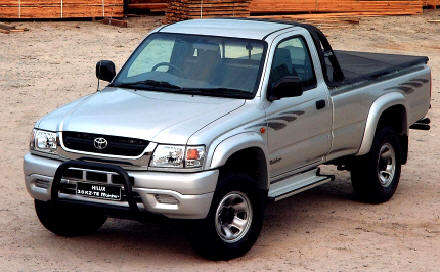

1998-2004 Toyota Hilux

3RZ-FE
The 3RZ-FE is a 2.7 L (2693 cc) I4 version built in Japan. Bore is 95 mm and stroke is 95 mm. Output is 150 hp (112 kW) at 4800 RPM with 177 ft·lbf (240 N·m) of torque at 4000 RPM. This engine features twin, chain-driven balance shafts. It has four valves per cylinder and DOHC. Valve adjustment is by shim over bucket.

Applications:

1995-2004 Toyota Tacoma 4x4
1996-2000 Toyota 4Runner
1994-1998 Toyota T100

The files are large, totalling 6MB.   A download link will be provided with your purchase.  I can supply you with the files on CD via the postal system at an additional cost of R25.

NB. This is an ebook.  An ebook is a digital file and not a paper bound book.
