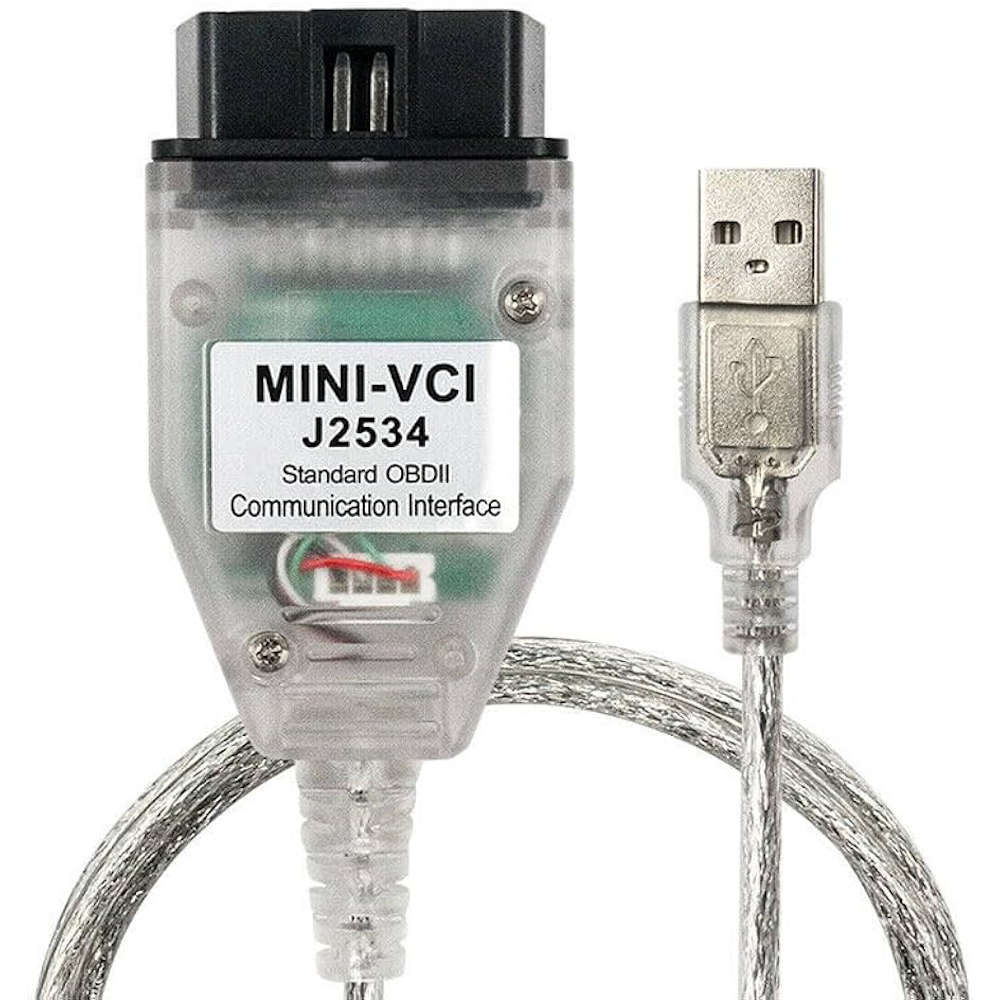

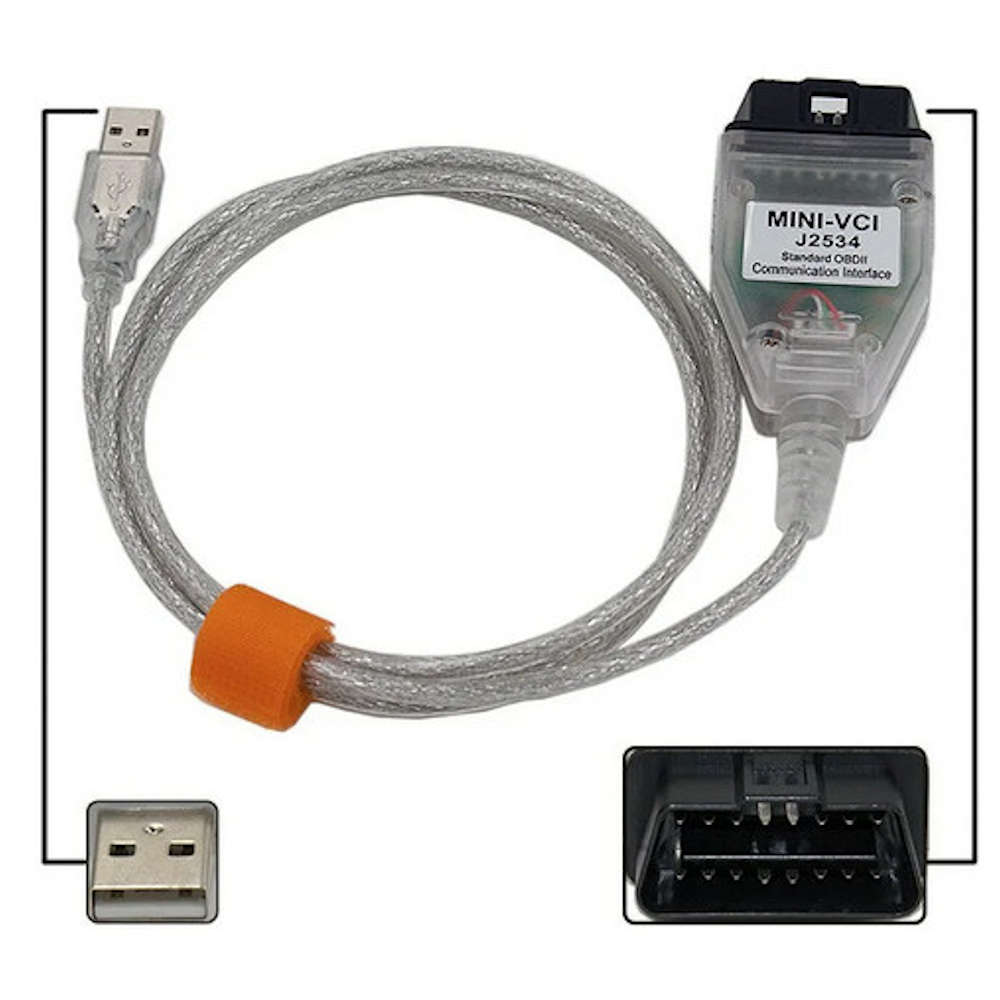

Toyota OBD Reader - Mini JVC J2534 + Software

Mini-VCI OBD2 Diagnostic Interface USB Cable including Toyota TIS Techstream Software

v18, v16, v15,v14,v13 Software Included

Brand new.

High quality

FTDI FT232RL Chip

Diagnostic software for Toyotas

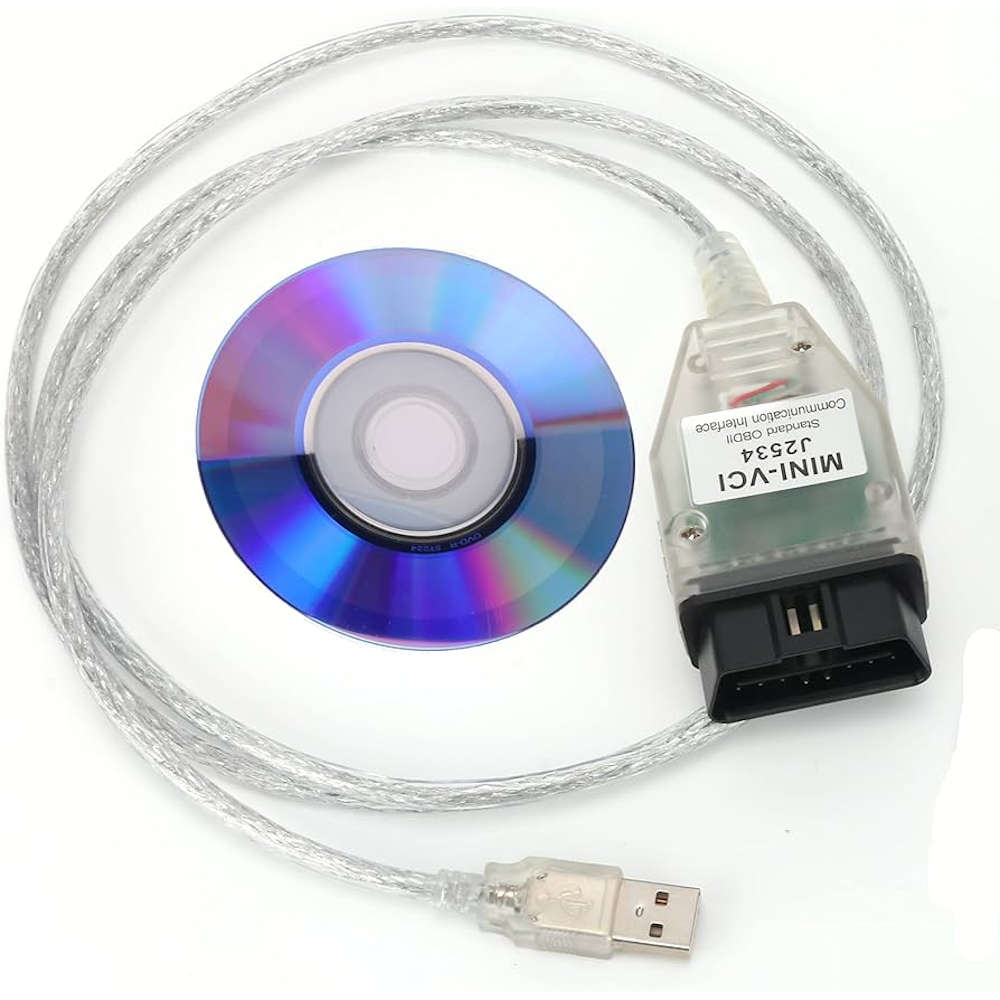

Package includes:

MINI-VCI J2534 USB Interface cable

CD: Includes Techstream v17.0

User manual, drivers etc.

Mini-VCI is a high performance diagnostics and reprogramming interface, compatible with SAEJ2534 (Pass-Thru), providing high speed communication to most of vehicles.

Connect to PC with high speed USB 2.0. Mini-VCI can be used with major car factory online diagnostic and ECU reprogramming applications, and supports rich third-party applications.

Features:

Support TIS OEM diagnostic software

High performance with ARM cpu inside.

Highly reliable, certified by CE and FCC.

Supports all the diagnostic communication protocols needed for Toyota (since 1996).

Supported Protocols: K-Line ISO 9141 KWP 2000 ISO 14230-4 SAE J1850 PWM SAE J1850 VPW CAN 2.0B ISO 11898 CAN ISO 15765-4

Specifications:

Operating Temperature: -20 to 70 ºC ( -4 to 158 ºF )

Storage Temperature: -40 to 85 ºC ( -40 to 185 ºF )

Diagnostic Interface: 16 PIN

USB Interface : USB 2.0

Power: DC 5 V - 36 V

Consumption: 0.3 W *Dimensions: 76 mm(2.99)L x 43 mm(1.69)W x 19 mm(0.75)H
