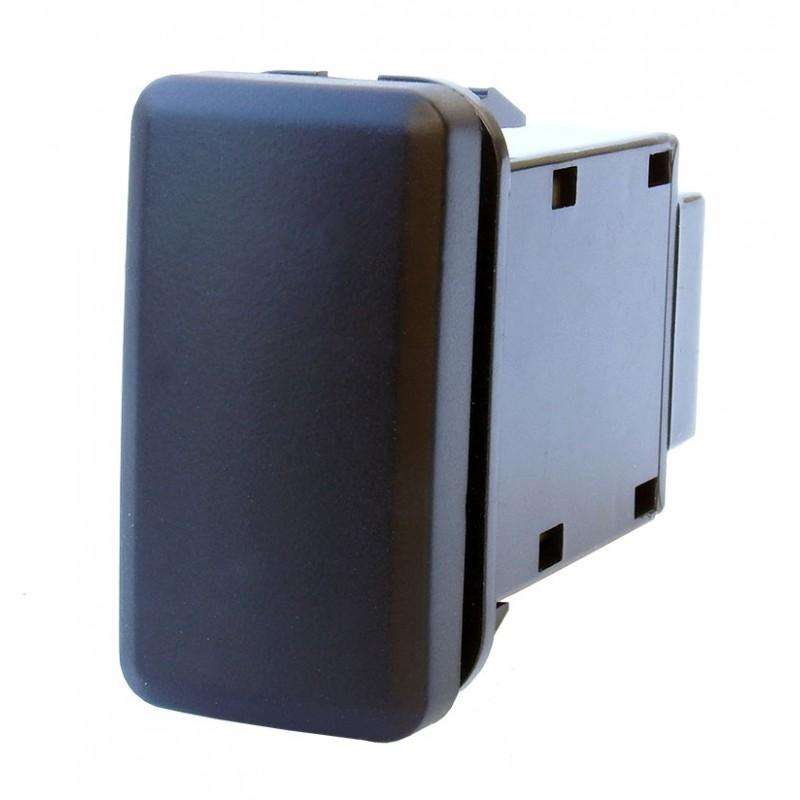

Toyota push button switch, large.
Description:
This switch suits the following models only:
Toyota Prado 120 Series 2003-2009
Toyota Landcruiser 100 Series 1998 - 2007
Toyota Landcruiser 79 Series New Model
Toyota FJ Cruiser 2010 - 2013
Toyota Hilux 2005 - 2015
Toyota Fortuner 2006 - 2015
Material: Plastic
LED Light Color: Blue
Black hard surface rocker.
Rated at 3Amp 12V.
High quality single pole single throw ON-OFF push switch.
Face surface size: 40 x 20 mm
Uses the original mounting hole of the vehicle.
Switch cutout required for the other accessories is about 17mm x 36 mm.
These switches are an aftermarket switch that locks into your existing panel
super easy to install in less than 10 min's.
All symbols are Laser etched directly onto the switch face using modern high Tech
laser engraving equipment to ensure long image life.
Wiring diagram:
Red wires should be connected to battery +,
Black wire should be connected to battery -,
Green wire should be connected to load +(load- connected to the battery -),
Blue/Yellow wire can be connected to battery + or not connected(You have the different choice based on yourself).
Package Contents:
1x Push Switch
1x Wiring Loom
