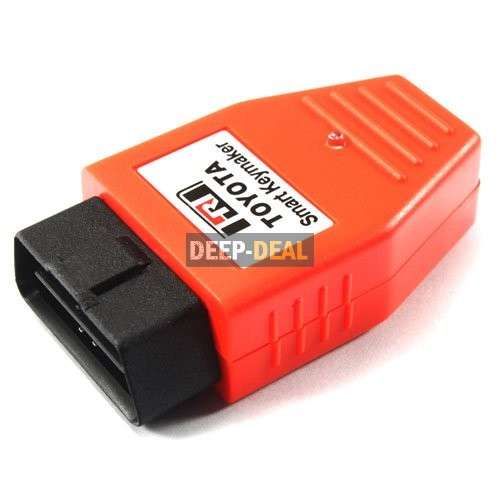

Toyota Smart Keymaker OBD for 4D Chip

Toyota Smart Keymaker OBD for 4D Chip

Security and high efficiency: It's only need almost 20 seconds to finish one key making. It can be

used securely for all the 4D and smart keys anti-theft system of Toyota series without the

dangerous to destory the anti-theft system. This product is the fastest and safest instrument to do

the key programming of Toyota and Lexus series in case of all keys losing.
The detailed operating steps are as following:
Common Keys
1.Turn the ignition switch "ON" using the key with the orginal 4D chip.
2. Insert the key programmer to the car diagnostic interface OBD, and the instrument will enter into

the procedure of car auto searching with a short sound of "di". 7 seconds later, the key

programmer connect with the car computer successfully with the short sound of two or three

"di"(two means the car is belong to the second generation and the three means third generation.);

After 20 seconds, the instrument will enter into the "learning key procedure" with a long sound of

"di".
3. Reading the key code
3.1.Match two main keys and one subsidiary key to the IMMO computer(attention: There must be

two new main keys and one subsidiary key)
a)  Insert the first new key into the ignition lock and wait for 5 seconds,and then the SEC light turns

on.(Don't turn on the ingntion when the key is inserted.)
b) Insert another main key into the ignition lock and wait for 5 seconds, and then the SEC light

turns on.(Don't turn on the ingntion when the key is inserted.)
c) Insert the subsidiary key into the ignition lock and then the SEC light turns off. (Don't turn on the

ingntion when the key is inserted.)
3.2.Only match one or two main keys to the immo computer ( Close the matching mode manually

after the matching finished.)
a) Insert the first main key and wait for 5 seconds, SEC light turns on. (Don't turn on the ingntion

when the key is inserted.)
b)Insert the second main key and wait for 5 seconds, SEC light turns on. (Don't turn on the ingntion

when the key is inserted.)
c)Insert the first finished key, turn on the ignition quickly for 5 times and then take out.
Smart Keys
1.Safe and efficient: Only need 20 seconds to add one key
2.It is safe for the  security alarm system
3.Support all kinds of Toyota and Lexus smart key system: support K line and CAN-BUS protocols
4.It is the most safe and fast key programmer device for Toyota and Lexus series till now.
5.It supports all key lost
Using the smart key
1. Add the other keys into the main key
1.1..Insert the key programmer to the car diagnostic interface OBD, and the instrument will enter

into the procedure of car auto searching with a short sound of "di".
1.2.Push the start-button twice. After 7 seconds the vehicle will connect the devices successfully,

and the equipment will send off a sound of "di" with 4-5 times, (4 sounds mean that the system is

the 4th period, 5 sounds mean that the system is the 5th period); after waiting for 30 seconds the

equipment will send off a long soung of"di", it means the car enter into "learning key state."
2. When lost all keys or only have the deputy key, we need to do it initialize:
2.1.Hold down the LED button on the equipment, and insert it into the OBD, and release the button

after the sound of "di" twice,the device enter into the state of search vehicles in this time. :
2.2..Push the start-button twice. After 7 seconds the vehicle will connect the devices successfully,

and the equipment will send off a sound of "di" with 4-5 times, (4 sounds mean that the system is

the 4th period, 5 sounds mean that the system is the 5th period); after 5 seconds the lights of SEC

will be off; after waiting for 10-16 minutes the equipment will send off a long sound of "di", and the

SEC lights flashing, that means the car enter into "learning key state."
3. Learning the intelligent key to the anti-theft of computer:
When the sign back of the intelligent keys near the launch button, will hear 2 sounds of "di" "di" at

this time, the SEC lights will flash twice;after learning all the intelligent keys, it have to wait for 30

seconds until the SEC lights flash,and the system will close the learning pattern automatic.
Notice:
1.Must use the right new smart keymaker, and follow the right step above, otherwise you take the

consequences.
2.If the device can match the key, and LED light shining constantly, pls clear the error code by

using anti-theft system such as T300.
3.After finishing program keys, the key can strat but the SEC light is still turn on, maybe you use the

vice key, only main key can manually shut the study mode.
4. Dont try to open the cover of programmer and dash board, otherwise you take the

consequences.
5..This machine is only provided for the legal auto repair. Otherwise you will take the above

consequences.
Features:
1.100% brand new and high quality
2.Safe and efficient: Only need 20 seconds to add one key
3.It is safe for the security alarm system
4.Support all kinds of Toyota and Lexus smart key system: support K line and CAN-BUS protocols
5.It is the most safe and fast key programmer device for Toyota and Lexus series till now
6.It supports all key lost
Package Included:
1 x Toyota Smart Keymaker OBD for 4D Chip
