Mini-VCI OBD2 Diagnostic Interface USB Cable including Toyota TIS Techstream Software
v8.00.034 software.
Brand new.
R415
Available for Collection or Countrywide Postage.
Econoparcel with Tracking (5-7days) R25
Speedpost overnight to counter R75

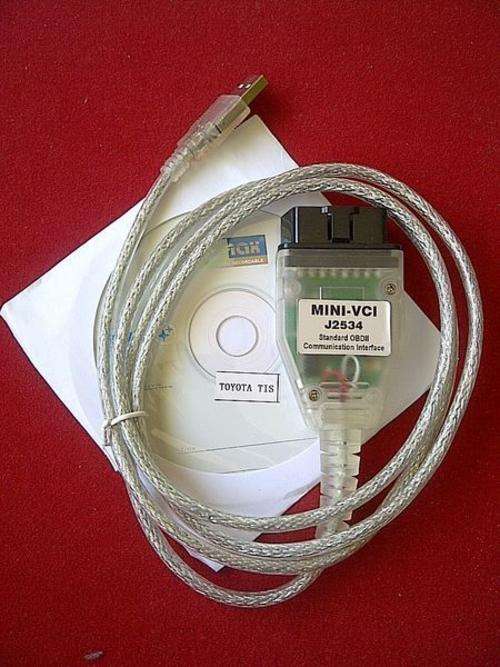

Package includes:
MINI-VCI J2534 USB Interface cable
CD: Includes Techstream v8.00.034
User manual, drivers etc.
Mini-VCI is a high performance diagnostics and reprogramming interface, compatible with SAEJ2534 (Pass-Thru), providing high speed communication to most of vehicles.
Connect to PC with high speed USB 2.0. Mini-VCI can be used with major car factory online diagnostic and ECU reprogramming applications, and supports rich third-party applications.
Features:
High performance with ARM cpu inside.
High reliability of products using SMD chip, and certified by CE and FCC.
Supports all the diagnostic communication protocols needed for Toyota (since 1996).
Supported Protocols: K-Line ISO 9141 KWP 2000 ISO 14230-4 SAE J1850 PWM SAE J1850 VPW CAN 2.0B ISO 11898 CAN ISO 15765-4
Specifications:
Operating Temperature: -20 to 70 ºC ( -4 to 158 ºF )
Storage Temperature: -40 to 85 ºC ( -40 to 185 ºF )
Diagnostic Interface: 16 PIN
USB Interface : USB 2.0
Power: DC 5 V - 36 V
Consumption: 0.3 W *Dimensions: 76 mm(2.99)L x 43 mm(1.69)W x 19 mm(0.75)H
