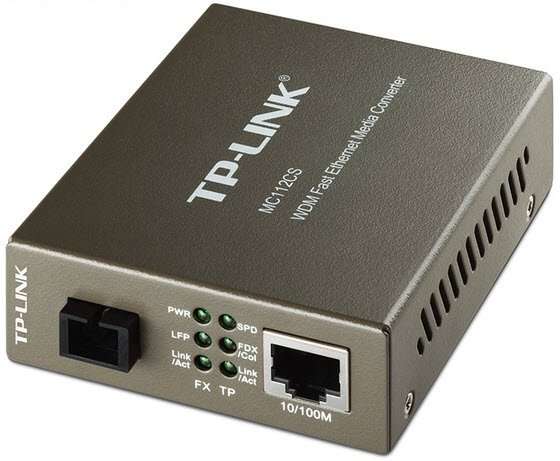

TP-Link 10/100Mbps RJ45 to 100Mbps single-mode SC fibre Converter, Full-duplex,Tx:1310nm, Rx:1550nm, up to 20Km, switching power adapter, chassis mountable
Overview:
The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK's media converter MC111CS is just one of the examples to cooperate with MC112CS. Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Features:
Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Adopts WDM technology, transmitting and receiving data on one single fiber
Extend fiber distance up to 20km
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply
Specifications:
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Extends fiber distance up to 20km
Ports 1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm Tx/1550nm Rx
WDM TX 1310nm
WDM RX 1550nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, FDX/Col, Link/Act, SPD
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 2.41W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0 ~40 (32 ~104 )
Storage Temperature: -40 ~70 (-40 ~158 )
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
