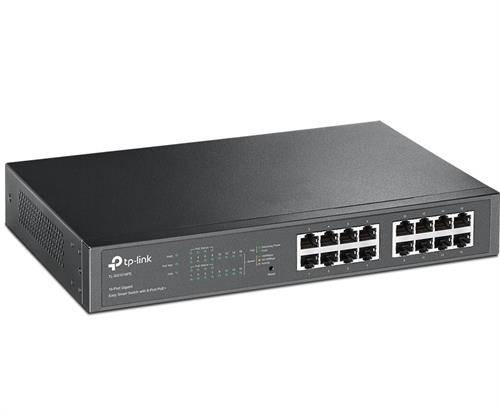

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ , Retail Box , 2 year Limited Warranty
The TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1016PE) is designed to enhance your network's efficiency and flexibility. It features 16 Gigabit Ethernet ports, with 8 ports supporting Power over Ethernet (PoE+) for seamless power and data transmission. This switch is ideal for expanding wired networks in small to medium-sized businesses, offering a total PoE power budget of 110W to support various devices.
Product code:TL-SG1016PE
Description: TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity 1
Physical Security Lock Yes
PoE Ports (RJ45) Standard: 802.3 at (30W)
PoE Ports: Port 1- Port 8
Total PoE Power Budget: 110W
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting 13" and 19" 1U rack mountable
Max Power Consumption 14.7W (no PD load)
131.4W (with 110W PD load)
Max Heat Dissipation 50.2 BTU/h (no PD load)
448.4 BTU/h (with 110W PD load)
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
POE Auto Recovery
Transmission Method Store-And-Forward
