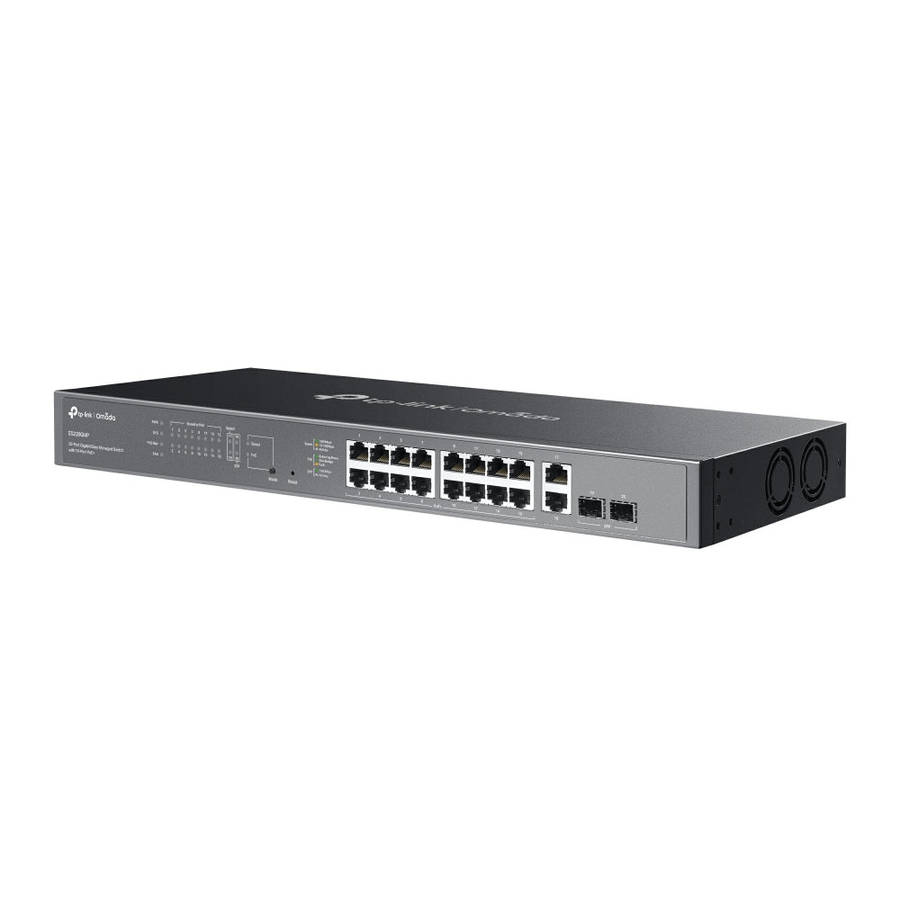

Product images are for illustrative purposes only and may differ from the actual product. Please use the "Ask Seller" tab to confirm if the image reflects the actual item.

FEATURES

16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
2× Gigabit RJ45 port, 2× Gigabit SFP port
250W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

SPECIFICATIONS

HARDWARE FEATURES
Interface:
16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
2× 10/100/1000 Mbps RJ45 Port
2× Gigabit SFP Slot
Fan Quantity: 2
Installation: Rackmountable
Physical Security Lock: Yes
Power Supply: 100240 VAC, 50/60 Hz
PoE Ports (RJ45):
Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 16 ports
PoE Budget: 250W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery
Up to 250m PoE transmission distance
Dimensions ( W x D x H ): 440 × 180 × 44mm
Surge Protection: ±6kV

PERFORMANCE
Switching Capacity: 40Gbps
Packet Forwarding Rate: 29.76Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4Mbit
Jumbo Frame: 15KB

SOFTWARE FEATURES
Quality of Service:
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP
L2 Multicast:
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN:
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method: Store-And-Forward

MANAGEMENT FEATURES
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration

OTHERS
Certification: FCC, CE, RoHS

Environment:
Operating Temperature: -5°C~50°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
