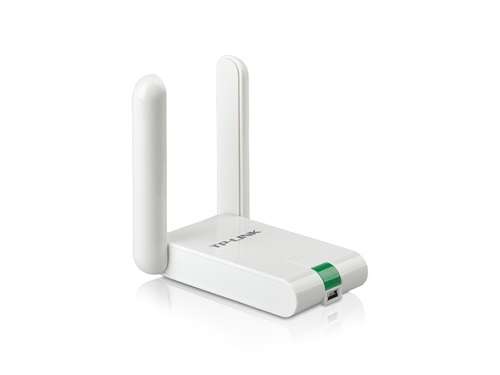

TP-LINK 300Mbps High Gain Wireless USB Adapter
The TL-WN822N High Gain USB Adapter is a 300Mbps wireless client, which allows users to connect a desktop or notebook computer to a wireless network and access a high-speed Internet connection. It is fully interoperable with IEEE 802.11 b/g/n wireless devices, delivering speedy 11n speeds and reliable signal for lag-free online gaming, Internet calls or even HD video streaming.
Features:
- 300Mbps wireless data rates ideal for video streaming, online gaming and Internet calling
- Dual external antennas deliver enhanced reception and transmission performance compared with internal antennas
- Easy one-touch wireless security encryption with the Quick Security Setup button Supports WPA/WPA2 security as well as WEP 64/128/152 bit encryption
- Provides Mini-USB port
- Supports Infrastructure and Ad-Hoc modes
- Supports Windows 2000/XP/Vista/7/8/8.1
- Fully compatible with all IEEE 802.11b/g/n products
- Supports Sony PSP X-link for online gaming for Windows XP
- Bundled CD provides easy and hassle-free setup
Specifications:
- Hardware Features:
- Interface: Mini USB 2.0
- Button: QSS Push Button/Software
- Dimensions (W x D x H ): 3.5 x 2.7 x 0.7 in. (90 x 68 x 16.8mm)
- Antenna Type: Dual Omni Directional
- Antenna Gain: 3dBi
Wireless Features:
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.400-2.4835GHz
Signal Rate:
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
- 270M: -68dBm at 10 Percent PER
- 130M: -68dBm at 10 Percent PER
- 108M: -68dBm at 10 Percent PER
- 54M: -68dBm at 10 Percent PER
- 11M: -85dBm at 8 Percent PER
- 6M: -88dBm at 10 Percent PER
- 1M: -90dBm at 8 Percent PER
- Transmit Power: < 20dBm(EIRP)
- Wireless Modes: Ad-Hoc / Infrastructure mode
- Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
- Advanced Functions: WMM
Others:
- Certification: CE, FCC, RoHS
- System Requirements: Windows 8.1 32/64bit, Windows 8 32/64bit, Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)
Environment:
- Operating Temperature: 0Degrees C to 40Degrees C (32Degrees F to 104Degrees F)
- Storage Temperature: -40Degrees C to 70Degrees C (-40Degrees F to 158Degrees F)
- Operating Humidity: 10 Percent to 90 Percent non-condensing
- Storage Humidity: 5 Percent to 90 Percent non-condensing
Box Contents:
- Wireless Adapter TL-WN822N
- Resource CD
- USB Cable
- Quick Installation Guide
- 1.5m USB Cable
What's in the box
TP-Link 300MBps High Gain Wireless N USB Adapter
