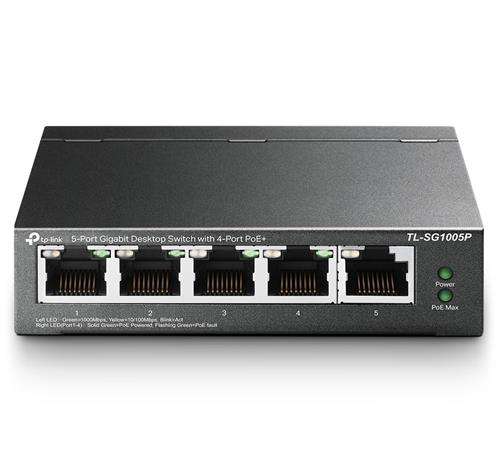

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+, Retail Box, 1 year Limited Warranty
The TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an efficient networking solution that allows for data and power transmission over a single cable, making it ideal for powering devices like IP cameras and access points. It features five RJ45 ports, with four supporting Power over Ethernet (PoE) to deliver up to 15.4W per port, ensuring reliable connectivity for various applications.
Specifications
Product code: TL-SG1005P
Description: TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
5× 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 14
Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption
3.44 W (220/50 Hz. no PD connected)
74.49 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
11.73 BTU/h (no PD connected)
254.01 BTU/h (with 65 W PD connected)
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Extend Mode Button (Ports 12, Up to 250 m PoE power supply and data transmission)
PoE Auto Recovery (Ports 1-4)
Transfer Method Store-And-Forward
