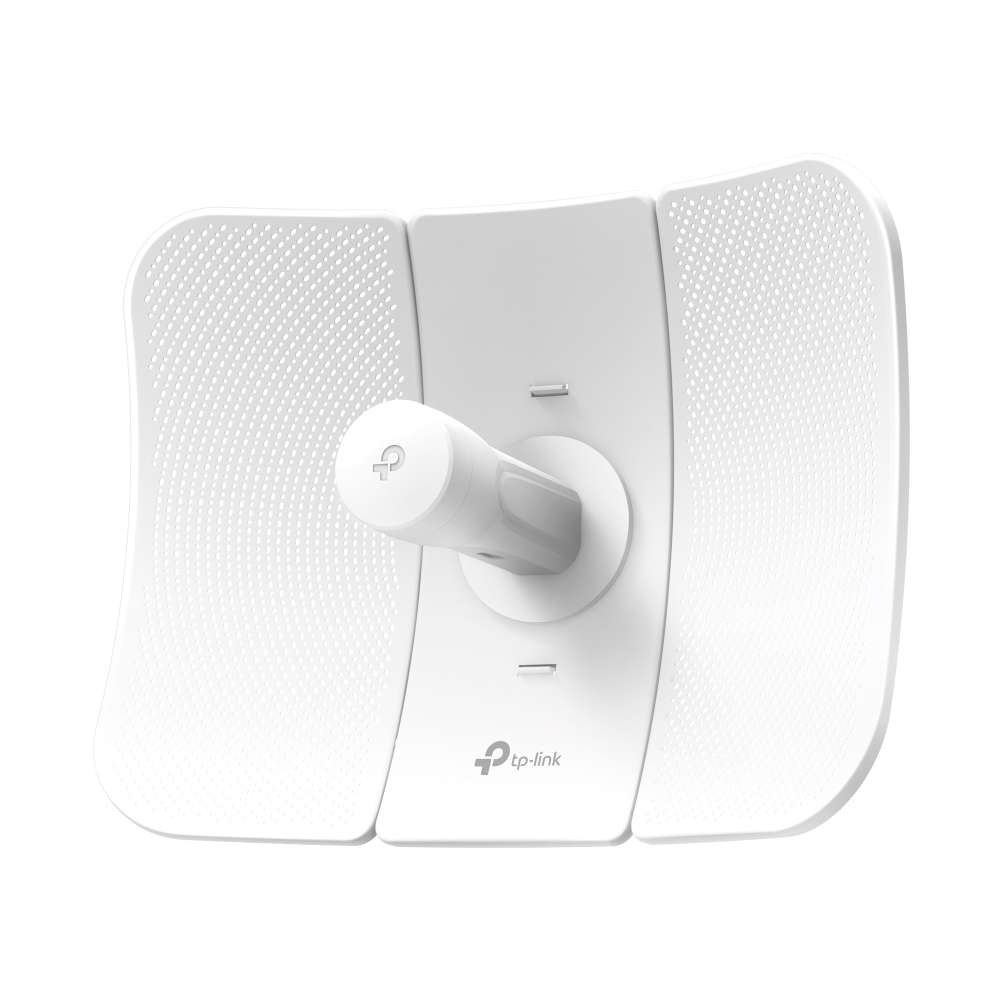

TP-Link Pharos CPE605 5.0GHz 150Mbps 23dBi Outdoor CPE
Long-Range Outdoor Connectivity with Precision Performance
The TP-Link Pharos CPE605 is a high-performance 5.0GHz outdoor CPE designed for long-distance point-to-point and point-to-multipoint wireless transmission. Equipped with a powerful 23dBi high-gain directional antenna, it delivers stable, focused connectivity over extended distances with wireless speeds of up to 150Mbps. Built for demanding outdoor environments, the IP65 weatherproof enclosure ensures reliable operation in harsh conditions, while advanced Pharos MAXtream TDMA technology reduces interference and improves throughput. With flexible PoE deployment and centralised Pharos Control management, the CPE605 is an ideal solution for WISP deployments, CCTV backhaul, farms, warehouses and remote network extensions.
FEATURES
150Mbps Wireless Speed - Reliable 5.0GHz performance for long-distance outdoor links
23dBi High-Gain Directional Antenna - Excellent beam directivity with improved latency and noise cancellation
Long-Range Connectivity - Ideal for point-to-point and point-to-multipoint deployments
Pharos MAXtream TDMA - Enhances throughput and reduces interference in high-density environments
Passive PoE Deployment - Includes adapter supporting up to 60m installation distance for flexible deployment
Durable Outdoor Design - IP65 enclosure with 15kV ESD and 6kV lightning protection for all-weather reliability

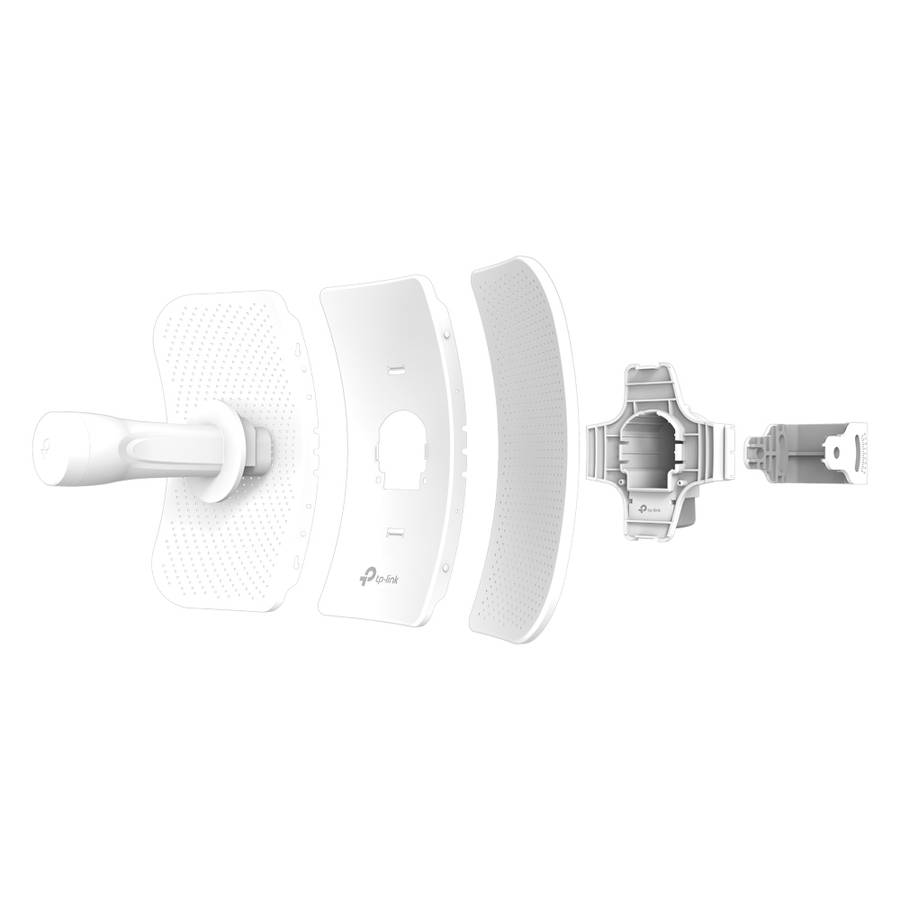

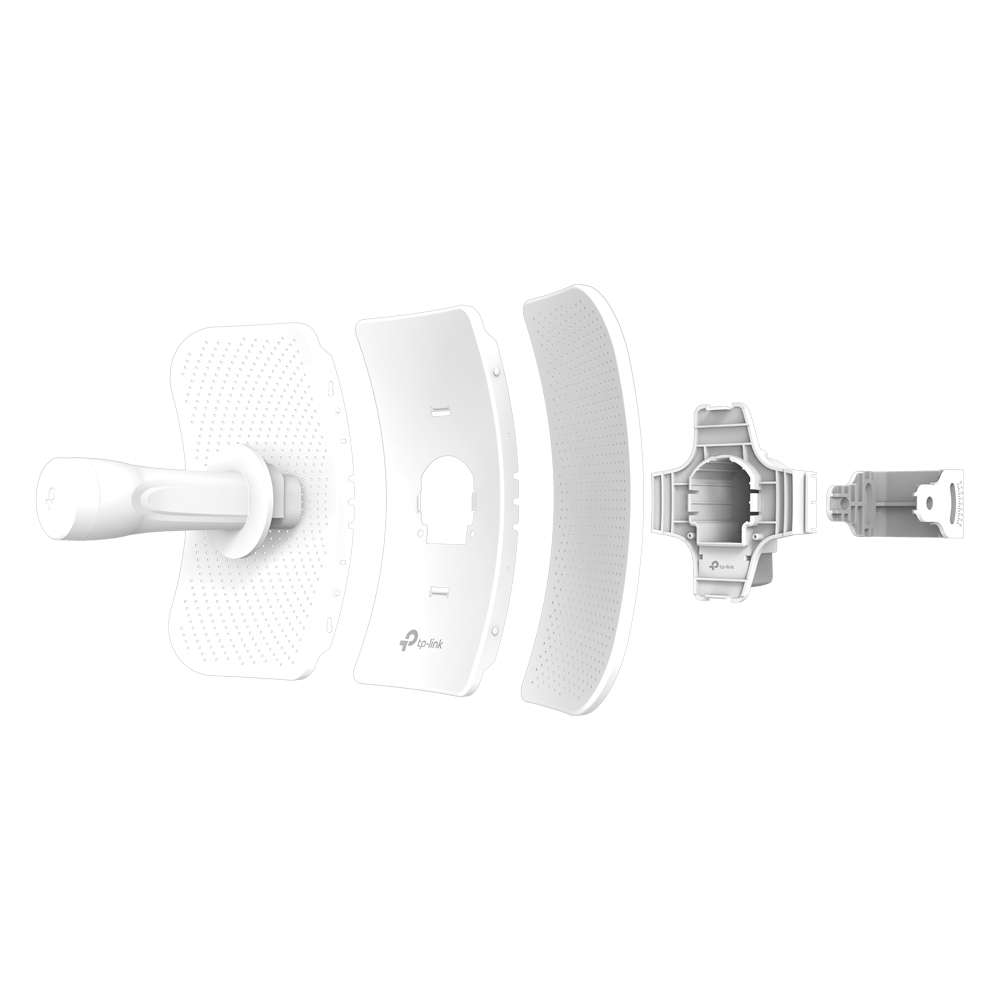

Quick Assembly Design - Snap-lock components ensure fast installation and structural stability in strong winds
SPECIFICATIONS
Wireless Standards: IEEE 802.11a/n
Frequency: 5.15GHz~5.85GHz
Signal Rate: up to 150Mbps (Dynamic)
Transmission Power: Up to 23dBm (Adjustable)
Antenna: 23dBi High-Gain Directional Antenna
Beamwidth: 7° (Azimuth) / 10° (Elevation)
Interface: 1× 10/100Mbps Shielded Ethernet Port (LAN/PoE)
Button: Reset
PoE: 24V Passive PoE (Adapter Included)
Power Supply: Passive PoE (4,5+ Pins; 7,8 Pins), 16~27VDC
Max. Power Consumption: 4.8W
Protection: 15kV ESD Protection, 6kV Lightning Protection
Enclosure: Outdoor PC Stabilised Plastic
Weatherproof Rating: IP65
Wireless Features: Pharos MAXtream TDMA, Beamforming, Long-Range PtP/PtMP, Auto Channel Selection, DFS, Adjustable Channel Width (5/10/20/40MHz)
Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP, MAC Filtering
Network Features: VLAN Tagging, Bandwidth Control, Static Routing, IP & MAC Binding
Management: Pharos Control, Web UI (HTTP/HTTPS), SNMP v2c, SSH, Remote Management
Tools: Speed Test, Ping, Traceroute, Spectrum Analyser, Antenna Alignment
Dimensions (W × D × H): 350 × 255 × 207mm
Operating Temperature: -40~70°C
Storage Temperature: -40~70°C
Operating Humidity: 10~90% RH, Non-Condensing
Storage Humidity: 5~95% RH, Non-Condensing
