Full Gigabit Ports:
Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
62 W PoE Budget:
Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.x
Up to 250 m PoE Transmission:
With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.xx
PoE Auto Recovery:
Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play:
Simply plug and play for instant connectivity with no configuration required.
Silent Operation:
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design:

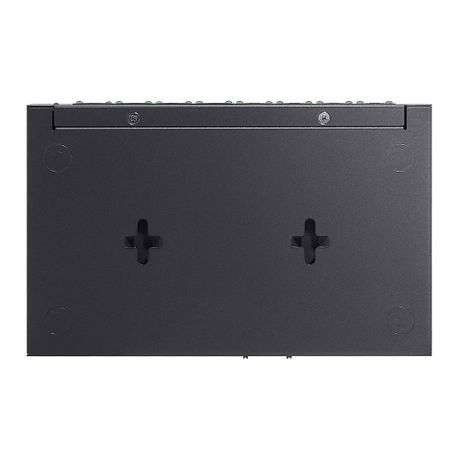

Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Interface:

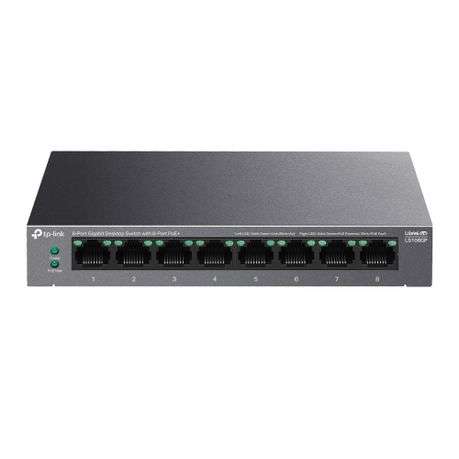

8× 10/100/1000Mbps RJ45 Ports (Ports 1-8 supports 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX
Power Supply:
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
PoE Ports (RJ45):
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8, up to 30 W PoE output per port
PoE Budget: 62 W
Max Power Consumption:
5.53 W (220 V/50 Hz. no PD connected)
71.61 W (220 V/50 Hz. with 62 W PD connected)
Max Heat Dissipation:
18.81 BTU/h (220 V/50 Hz. no PD connected)
243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
Advanced Features:

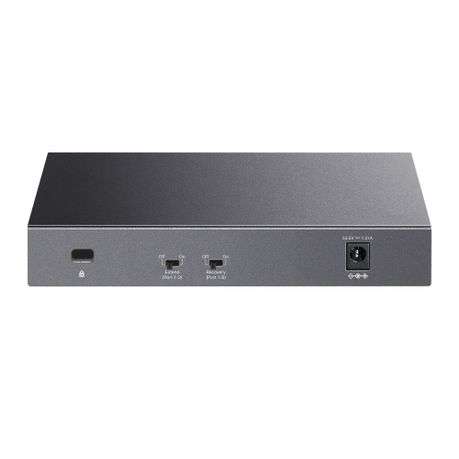

Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
PoE Auto Recovery Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology
What's in the box
LS108GP
Power Adapter
Installation Guide
