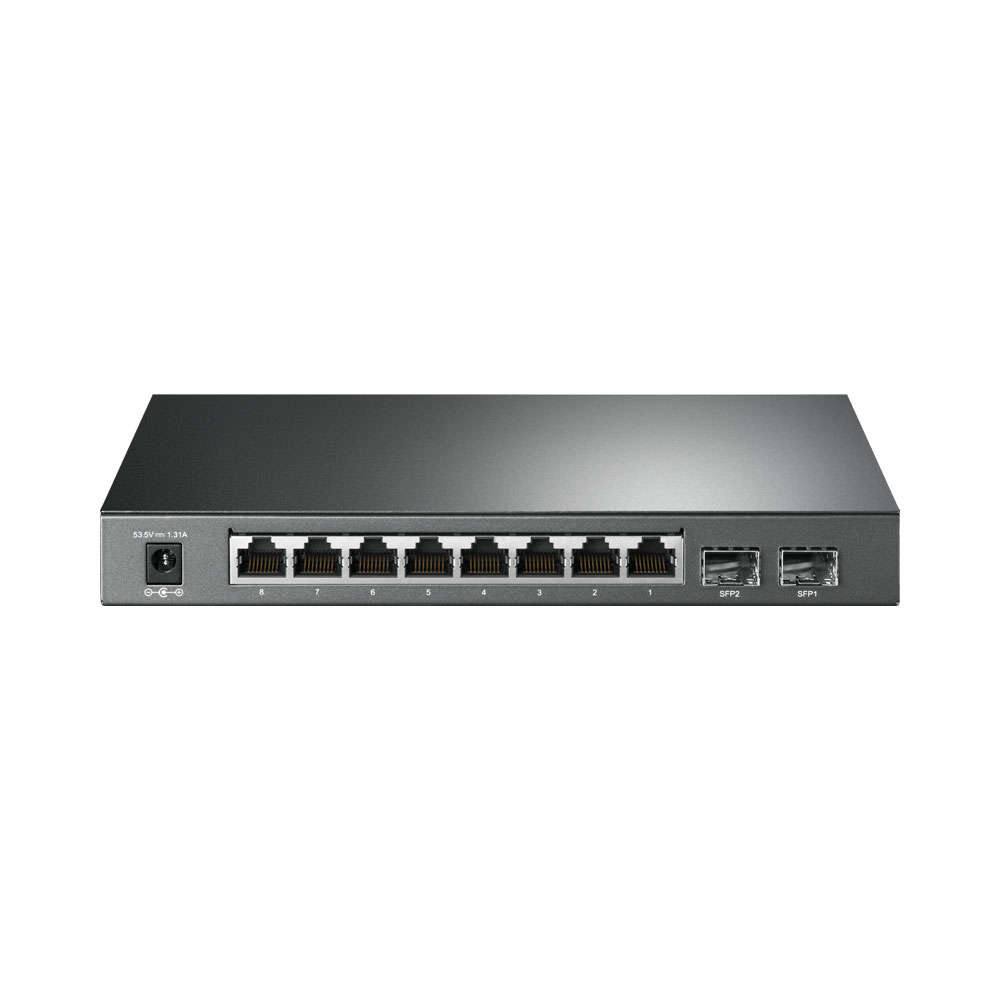

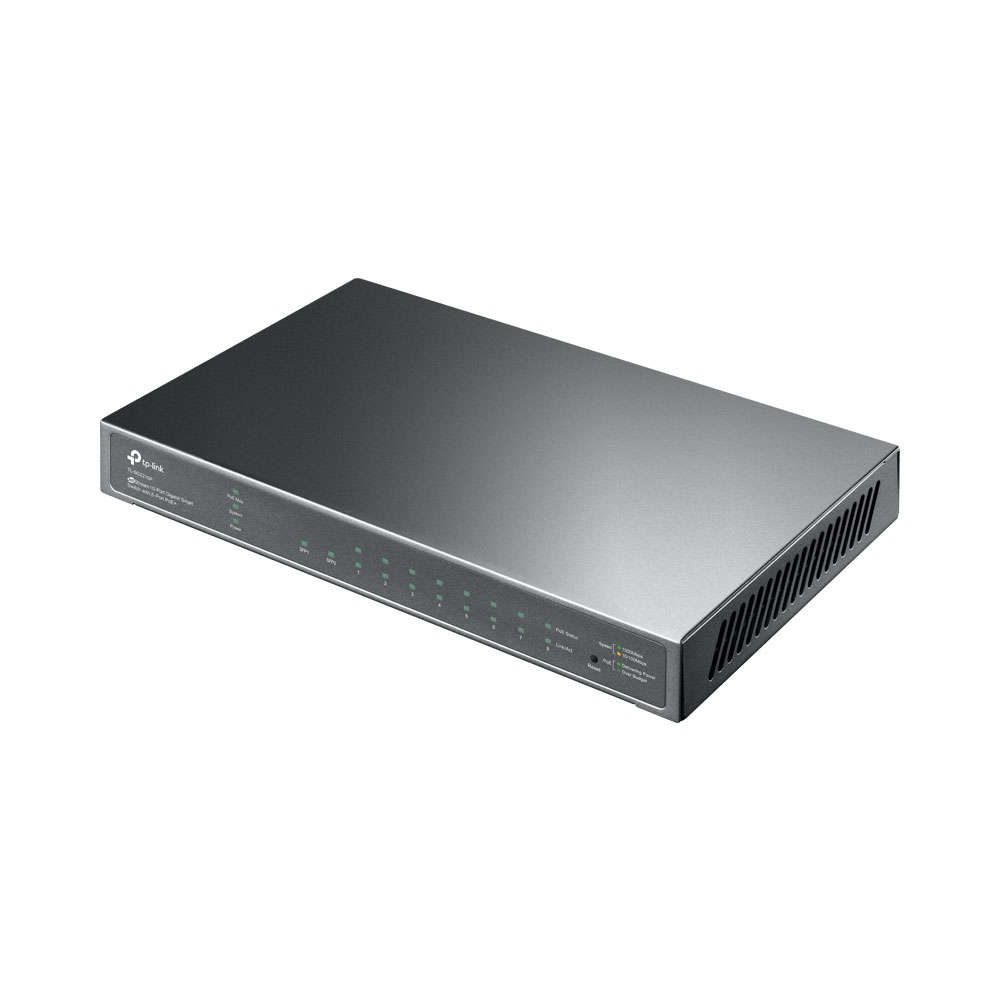

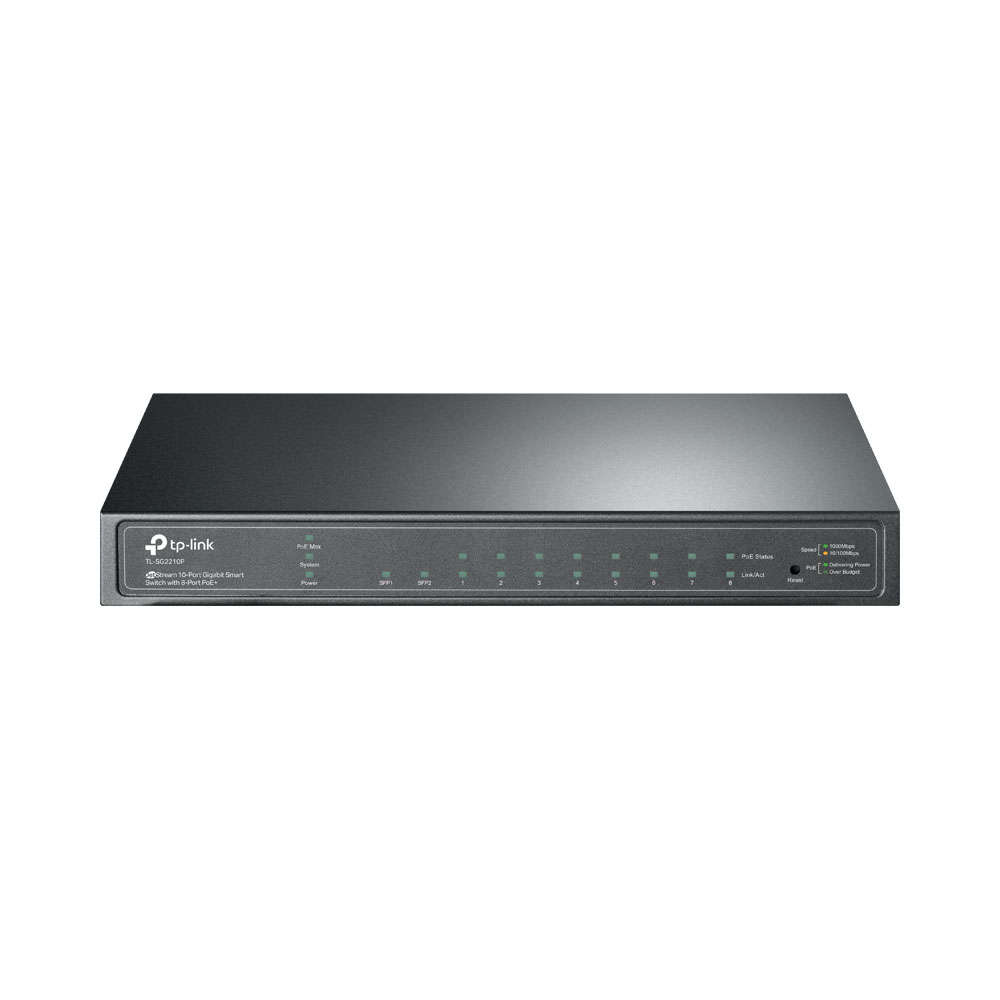

TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots
TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W* and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.TP-LINK's Gigabit Smart Switch TL-SG2210P is specially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.
FEATURES
Features 8 PoE+ ports, with total PoE power budget of 58W and useful PoE power management features
Gigabit Ethernet connections on all ports provide full speed of data transferring
Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
L2/L3/L4 QoS and IGMP snooping optimise voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features
Innovative energy-efficient technology saves up to 50% of power consumption
SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface: 8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity: Fanless
Power Supply: 100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)
Power Consumption: Maximum (PoE on): 75.3W (220V/50Hz)
Maximum (PoE off): 10.5W (220V/50Hz)
PoE Ports (RJ45)Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 58W*
Dimensions ( W x D x H ) 209 x 126 x 26mm
PERFORMANCE
Bandwidth/Backplane: 20Gbps
Packet Forwarding Rate: 14.88Mpps
MAC Address Table8k
Packet Buffer Memory: 512KB
Jumbo Frame: 9216 Bytes
SOFTWARE FEATURES
Quality of Service: Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List: L2~L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Security: SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
802.1x and Radius AuthenticationIP-Mac-Port-VID BindingARP InspectionDHCP SnoopingDoS Defend
L2 Switching Features: IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP(LLDP-MED)
Management: Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
OTHERS
Certification: CE, FCC, RoHS
Environment: Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
