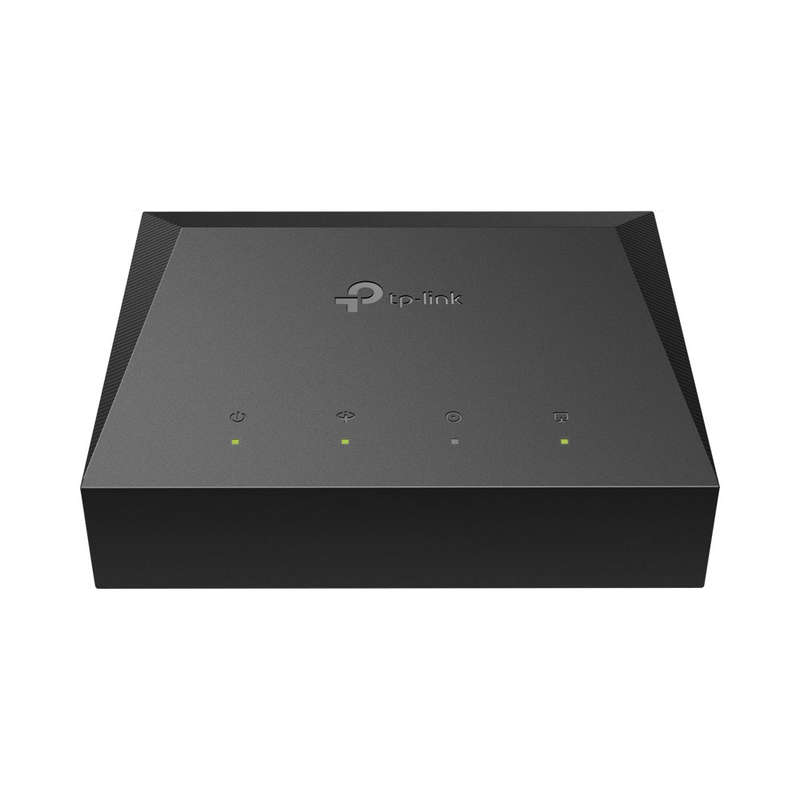

TP-Link Aginet XZ000-G3 | 1-Port Gigabit GPON ISP Terminal
Ideal and Preconfigured for ISPs
High-Speed GPON Service - Compliant with the ITU-T G.984 GPON standards
TP-Link‘s 1-Port Gigabit GPON Terminal XZ000-G3 provides up to 2.488Gbps of uplink and 1.244 Gbps of downlink bandwidth simultaneously. It meets the higher bandwidth demand of various high-bandwidth services. It also reduces both capital and operating expenditure, protecting ISPs' existing infrastructure investments.
FEATURES:
SPECIFICATIONS:
HARDWARE FEATURES | |
Interface | 1× 10/100/1000Mbps RJ45 Port, 1 SC/APC Port |
Button | 1× RESET Button |
External Power Supply | 9VDC / 0.6A |
IEEE Standards | IEEE 802.3, 802.3u, 802.1p, 802.1Q |
Data Rates | Upstream: 1.244Gbps, Downstream: 2.488Gbps |
Dimensions ( W × D × H ) | 95.0 × 75.0 × 29.3mm |
Distance | 0 ~ 20km Max. |
GPON Standards | ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
Optical Module | Class B+ |
Receiver | Super-TIA |
Transmitter | DFB Laser |
Wavelength | Upstream: 1310nm, Downstream: 1490nm |
SOFTWARE FEATURES | |
VLAN | 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
Security | AES Encryption, Packet Filter based on VLAN |
Management | Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
Advanced Features | Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism |
IGMP | IGMP v1/v2/v3 |
OTHERS | |
Certifications | CE, FCC, ROHS |
Package Contents | XZ000-G3, RJ45 Ethernet Cable, Quick Installation Guide, Power Adapter |
System Requirements | Microsoft Windows 8/7/Vista/XP, MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: 0°C~40°C; Storage Temperature: -40°C~70°C; Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
