Faster Wi-Fi 6Get Next-Gen Wi-Fi speeds up to 1.5 Gbps
Triple-Core CPUInstant response to all your network activity with a 1.5 GHz triple-core CPU.
Broader Coverage4 Antennas and beamforming technology focus signal towards individual clients for broader coverage.
Connect Dozens of DevicesMore simultaneous connections and higher average throughput with OFDMA
Full Gigabit PortsTake full advantages of broadband speeds up to 1 Gbps.
Easy SetupFinish your network upgrade in minutes with Tether app.

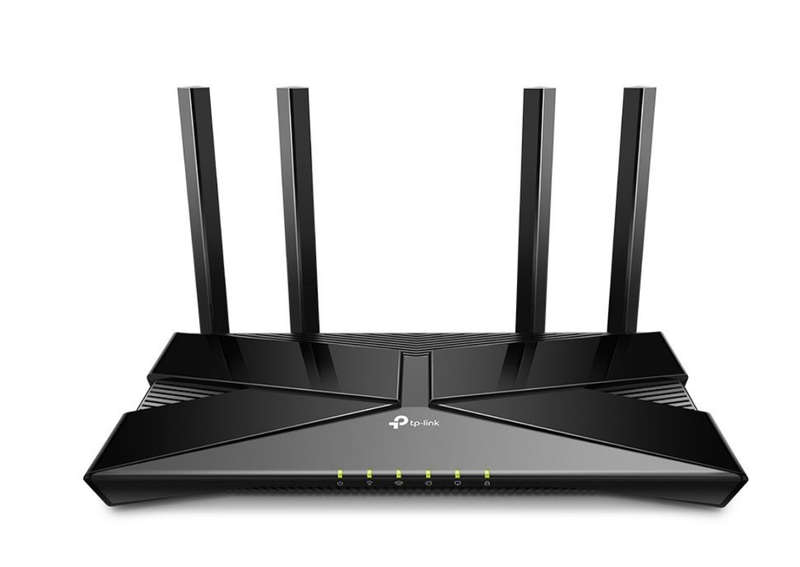

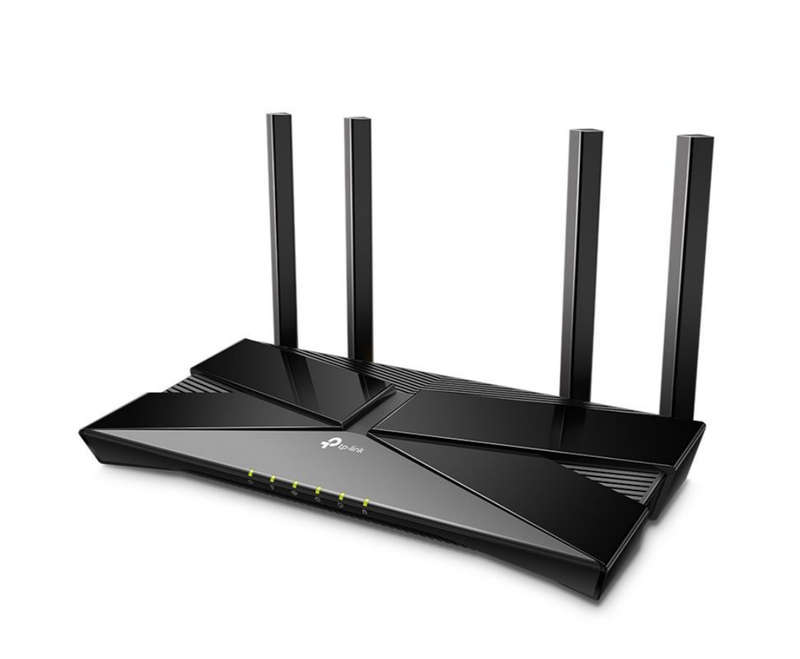

Archer AX10 Wi-Fi 6 (11ax) 5 GHz 2×2 - 1201 Mbps
GbE Solution - 1000 Mbps
2×2 Wi-Fi 5 (11ac) Solution - 867 Mbps
1×1 Wi-Fi 5 (11ac) Solution - 433 Mbps
Advanced, Revolutionary Wi-Fi 6
Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.
Speed Beyond Gigabit
The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.
Connect Dozens of Devices
Add more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router.
Less Lag, More Fun
Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devicesall at the same time.
Triple-Core Processor
Instant Response to Every Click
A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting.
Boosted Wi-Fi Coverage
Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client.
Gigabit Broadband Internet Access
All Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.
Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings, including parental controls and media sharing preferences, from any Android or iOS device.
Specifications
Wireless
Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range : 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity : High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth
Working Modes : Router Mode, Access Point Mode
Hardware
Processor : 1.5 GHz Triple-Core CPU
Ethernet Ports : 1× Gigabit WAN Port, 4× Gigabit LAN Ports
Buttons : WPS/Wi-Fi Button
Power : On/Off Button, LED On/Off Button, Reset Button
Power : 12 V ? 1 A
Security
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network : 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
VPN Server : OpenVPN, PPTP
Software
Protocols : IPv4 ,IPv6
Parental Controls : URL Filtering, Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service : QoS by Device
Cloud Service :
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding :
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV :
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP :
Address Reservation
DHCP Client List
Server
DDNS :
TP-Link
NO-IP
DynDNS
Management :
Tether App
Webpage
Physical
Dimensions (W×D×H) : 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
What's in the box
Wi-Fi Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
