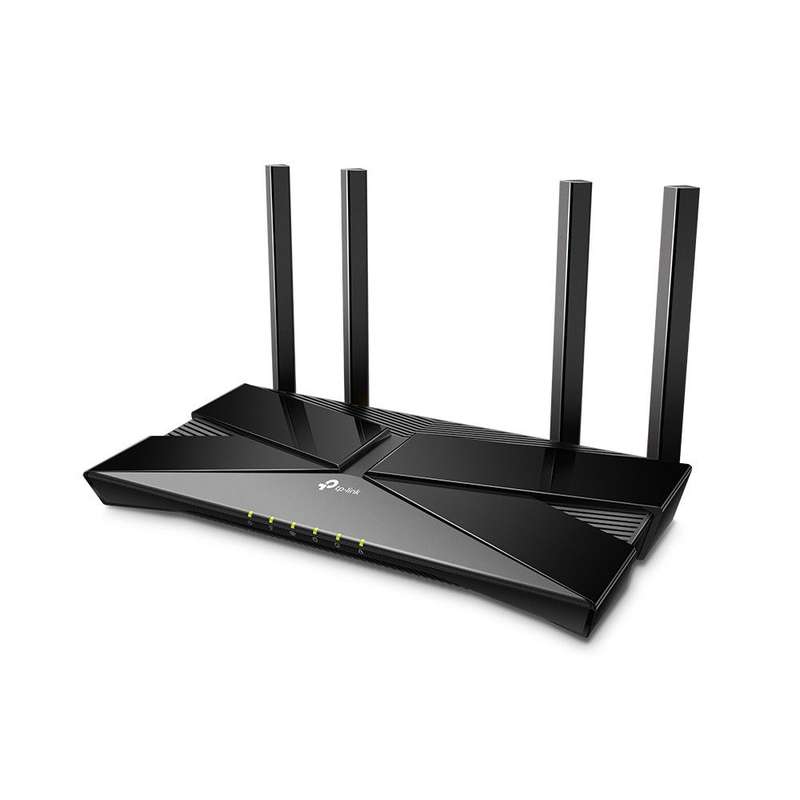

TP-Link Archer AX1500 Wi-Fi 6 Router, Broadcom 1.5GHz Tri-Core CPU

Triple-Core CPU Powered Wi-Fi 6 Stable Next-Gen Performance

Faster Wi-Fi 6Get Next-Gen Wi-Fi speeds up to 1.5 Gbps.

Triple-Core CPUInstant response to all your network activity with a 1.5 GHz triple-core CPU.

Broader Coverage4 Antennas and beamforming technology focus signal towards individual clients for broader coverage.

Connect Dozens of DevicesMore simultaneous connections and higher average throughput with OFDMA
Full Gigabit PortsTake full advantages of broadband speeds up to 1 Gbps.

Easy SetupFinish your network upgrade in minutes with Tether app.

Advanced, Revolutionary Wi-Fi 6
Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.

Speed Beyond Gigabit
The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.

Connect Dozens of Devices
Add more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router.

Less Lag, More Fun
Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devicesall at the same time.

Triple-Core Processor
Instant Response to Every Click
A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting.

Boosted Wi-Fi Coverage
Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client.

TP-Link OneMesh :
Flexibly Create a Whole-Home Wi-Fi
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMeshTM range extender to a OneMesh router. No more searching around for a stable connection.

Wi-Fi Dead-Zone Killer
Eliminate weak signal areas with Wi-Fi coverage for the whole house

Smart Roaming
Uninterrupted streaming when moving around your home

One Wi-Fi Name
No more switching Wi-Fi network names

Unified Management
Manage the whole-home Wi-Fi by managing the central node via Tether app/Web UI

Gigabit Broadband Internet Access
All Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.

Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings, including parental controls and media sharing preferences, from any Android or iOS device.

Ready for Today and Tomorrow's Smart Home
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.

Parental Controls
Block inappropriate content and restrict time spent online

VPN Service
Safely reach files in your home, wherever you are, with a secure VPN connection

Quality of Service
Prioritize devices and applications for faster performance when needed

SPECIFICATIONS

WIRELESS

Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds
AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range
3 Bedroom Houses
4 Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth

Working Modes
Router Mode
Access Point Mode

HARDWARE

Processor
1.5 GHz Triple-Core CPU

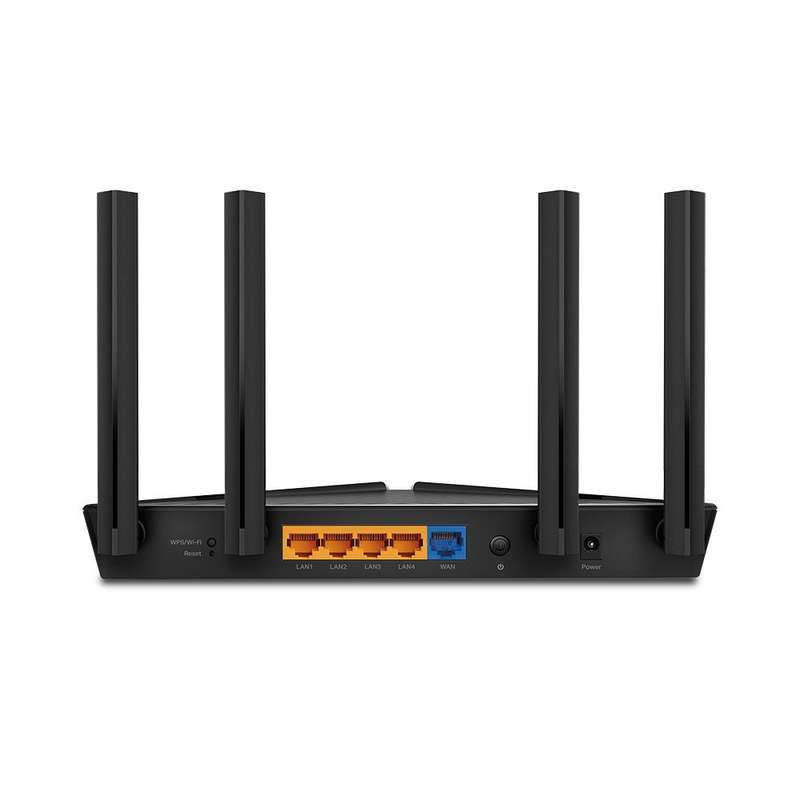

Ethernet Ports
1 Gigabit WAN Port
4 Gigabit LAN Ports

Buttons
WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button

Power
12 V ? 1 A

SECURITY

WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network
1 5 GHz Guest Network
1 2.4 GHz Guest Network

VPN Server
OpenVPN
PPTP

SOFTWARE
Protocols IPv4
IPv6

OneMesh
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

Parental Controls
URL Filtering
Time Controls

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
QoS by Device
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link
NO-IP
DynDNS

Management
Tether App
Webpage

PHYSICAL

Dimensions (WDH)
10.2 5.3 1.5 in
(260.2 135.0 38.6 mm)

OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications
FCC, CE, RoHS

Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power
CE:
FCC:

WiFi Reception Sensitivity
5 GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-79dBm
11ac VHT20MCS0:-96dBm
11ac VHT20MCS11:-66dBm
11ac VHT40MCS0:-94dBm
11ac VHT40MCS11:-63dBm
11ac VHT80MCS0:-91dBm
11ac VHT80MCS11:-60dBm
11ax HE20MCS0:-95dBm
11ax HE20MCS11:-63dBm
11ax HE40MCS0:-92dBm
11ax HE40MCS11:-60dBm
11ax HE80MCS0:-89dBm
11ax HE80MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm
11a 54Mbps:-74dBm
11n HT20MCS0:-90dBm
11n HT20MCS7:-73dBm
11n HT40MCS0:-88dBm
11n HT40MCS7:-70dBm

What's in the box
1x Wi-Fi ...
