Super-Fast 1.8 Gbps Wi-Fi
Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.
Connect More Devices
Communicate with more devices using OFDMA while simultaneously reducing lag.
Broader Coverage
An improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.
Next-Gen Platform
The Next-Gen High-Efficiency Qualcomm Chipset provides fast and stable Wi-Fi while saving power consumption.
Parental Controls
Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
Works with Most ISPs
Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
OneMesh
Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
Easy Setup
Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible
Supports all previous 802.11 standards Wi-Fi devices.
WiFi 6 Upgrades Everything
The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Super-Fast WiFi 6
Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.
Connect More, Stay Fast
Enjoy smooth gaming, video streaming, and life feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.
WiFi Coverage Throughout Your Home
4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.
TP-Link OneMesh Flexibly Create Whole Home WiFi
Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.
Strong Mesh with Multi-Band Backhaul
Ultra-Fast Smart Roaming
Unified Management
WPA3The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Universal ISP Support
Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link's powerful web interface, you can set up your Archer AX23 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It's as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto-schedule.
Specifications:
Wireless:
Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
Hardware:
Processor
Dual-Core CPU

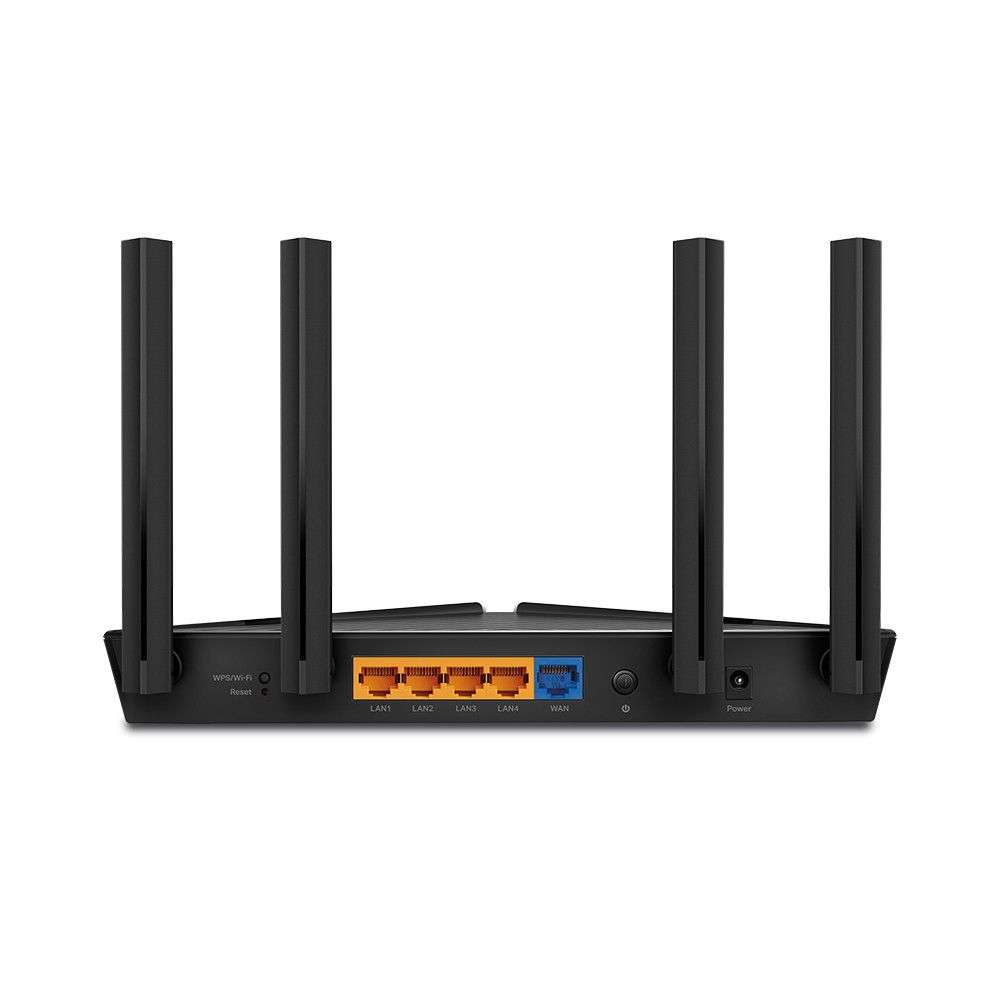

Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons
WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
Power
12 V ? 1 A
Security:
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
Software:
Protocols
IPv4
IPv6
OneMesh
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management
Tether App
Webpage
Other:
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Test Data:
WiFi Transmission Power
CE:
FCC:
WiFi Reception Sensitivity
EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20MCS0: -95dbm
11ac VHT20MCS8: -71dbm
11ac VHT40MCS0: -92dbm
11ac VHT40MCS9: -66dbm
11ac VHT80MCS0: -89dbm
11ac VHT80MCS9:-62dbm
11ax HE20MCS0:-95dbm
11ax HE20MCS11: -64dbm
11ax HE40MCS0: -92dbm
11ax HE40MCS11: -60dbm
11ax HE80MCS0: -89dbm
11ax HE80MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20MCS0:-95dbm
11n HT20MCS7:-75dbm
11n HT40MCS0:-92dbm
11n HT40MCS7: -72dbm
11ac VHT20MCS0:-95dbm
11ac VHT20MCS8:-72dbm
11ac VHT40MCS0:-92dbm
11ac VHT40MCS9: -67dbm
11ax HE20MCS0:-95dbm
11ax HE20MCS11: -65dbm
11ax HE40MCS0: -92dbm
11ax HE40MCS11: -62dbm
What's in the box
1 x Wi-Fi Router Archer AX23
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
