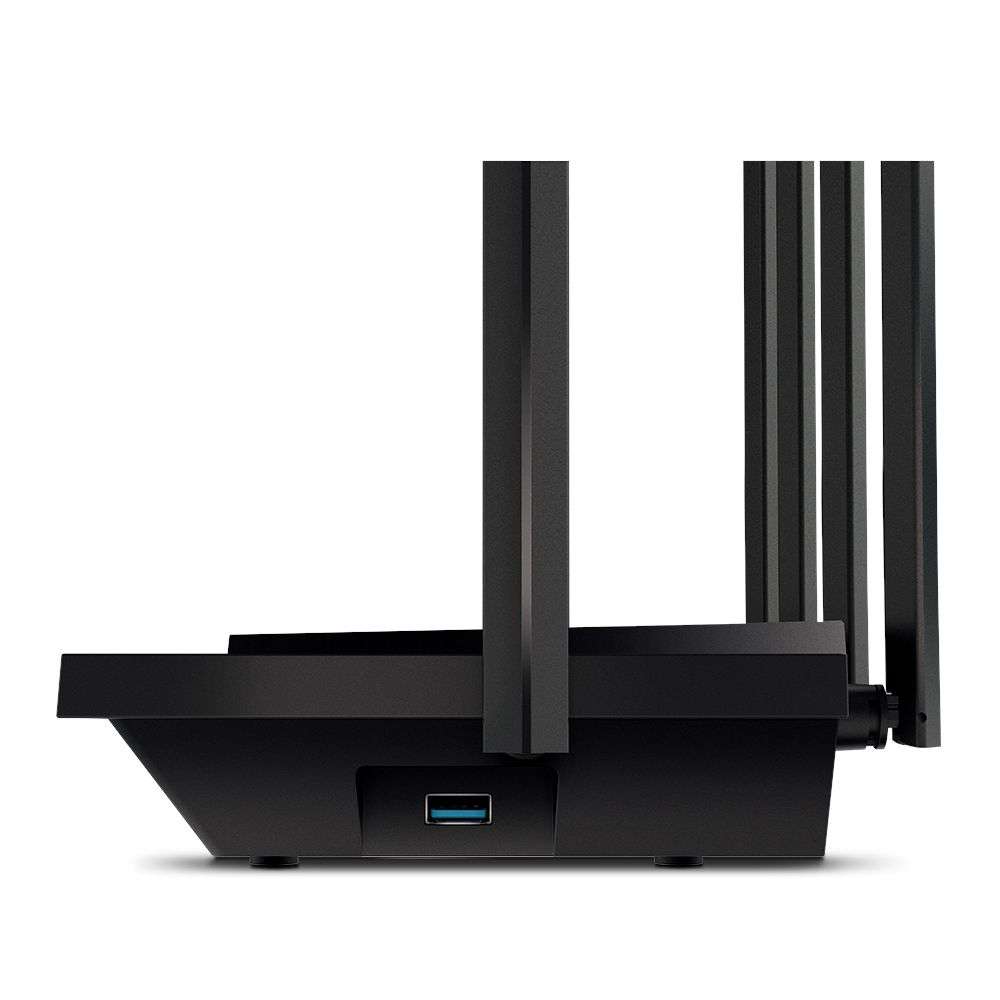

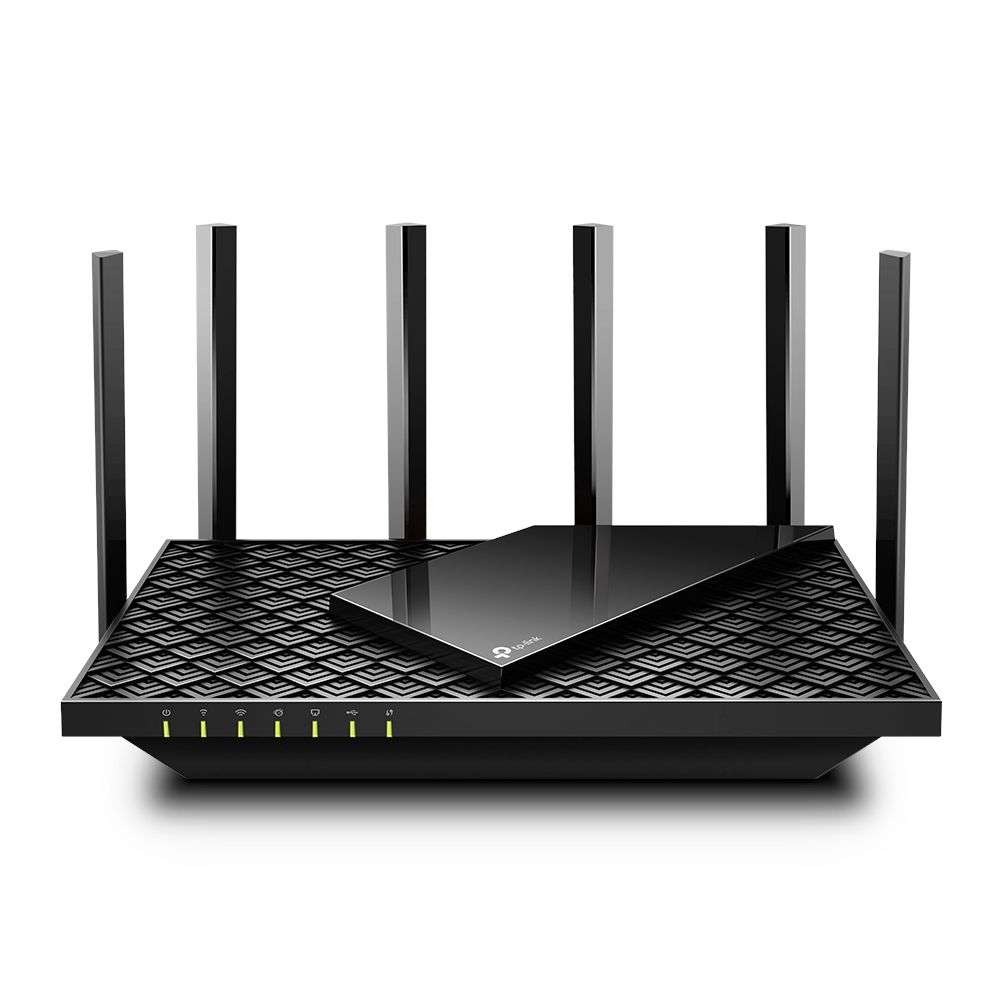

TP-Link Archer AX5400 Dual-Band Wi-Fi 6 Router

Full Gigabit WiFi for 8K Streaming Up to 5400 Mbps of dual-band WiFi for faster browsing, streaming and downloading, all at the same time.
Fully Featured Wi-Fi 6 Equipped with the top structure of 4T4R and HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connections.
Up to 4x More Capacity Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
Extensive Coverage 6 high-performance antennas with beamforming technology ensure broad coverage.
HomeShield TP-Link's premium security service keeps your home network safe with cutting-edge features for network and IoT protection.*
More Vents, Long-Lasting Performance Contemporary design that also acts as a vent area to unleash the full power of performance.
USB Sharing 1 USB 3.0 port enables easy media sharing and private cloud building.
Easy Setup Set up the router in minutes with guided instructions using the Tether app.

NEXT-LEVEL PERFORMANCE FOR EVERYONE.
AX5400 Dual-Band 6-Stream Gigabit Wi-Fi 6 Router
Archer AX73

Fully Featured Wi-Fi 6
Warp Speeds up to 5400 Mbps
Extensive Wi-Fi Coverage
Up to 4x More Capacity
HomeShield Security

Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Warp Speed for
Smooth 8K Streaming
Drastically improved speeds enable smoother streaming, faster downloading, and gaming, all at the same time. Need to go faster?
Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging.

Extensive Wi-Fi Coverage with Advanced Technology
Enjoy stable Wi-Fi connections in all rooms, even in the kitchen and bedroom. High-Power FEM, 6 antennas, beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

Connect
More Devices
Easily handle dozens of devices streaming and gaming at the same time OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.

OFDMA
Enables different devices to share one transmission stream, increasing efficiency.

MU-MIMO
Transmits data to different devices simultaneously using multiple streams.

Designed to Be Cool
The slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm² (25 in²) of its top surface for improved heat dissipation, unleashing the whole machine's full power.

TP-Link HomeShield:
Advanced Security for Your Network and Clients
HomeShield protects all connected clients against DDoS, malicious sites, and port intrusion, delivering a safe network environment for your data and privacy.

Enhanced IoT Security
HomeShield identifies IoT devices, including cameras and voice assistants, to block all potential security holes and secure your privacy.

DDoS Attack Prevention
HomeShield will record abnormal incoming traffic, and the device will automatically block requests from enlisted IPs.

Robust Parental Controls
Manage online time and block inappropriate content to keep your family safe online.

Leading Security by Avira
Avira, an award-winning tech company, relied on 500 million users, powers HomeShield and continually updates it, ensuring your network stays worry-free

Home Network Scanner
Comprehensive Reports
New Connected Devices Notification
Quality of Service

TP-Link OneMesh:
Flexible Create Whole Home WiFi
Want to build a whole-home Wi-Fi? Archer AX73 supports OneMesh to form a fast and easy whole-home network, that covers your home, preventing drops and lag when moving between signals.

Strong Mesh with Multi-Band Backhaul
Ultra-Fast Smart Roaming
Unified Management

Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX73 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.

Specifications
Wireless

Standards:
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds
AX5400
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range
3 Bedroom Houses
6 Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming -Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM - Improves transmission power to strengthen signal coverage
4T4R - Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity
High
Dual-Band - Allocate devices to different bands for optimal performance
44 MU-MIMO - Simultaneously communicates with multiple MU-MIMO clients
OFDMA - Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness - Improves network efficiency by limiting excessive occupation
DFS - Access an extra band to reduce congestion
6 Streams - Connect your devices to more bandwidth

Working Modes:
Router Mode
Access Point Mode

Hardware:
Processor: 1.5 GHz Triple-Core CPU

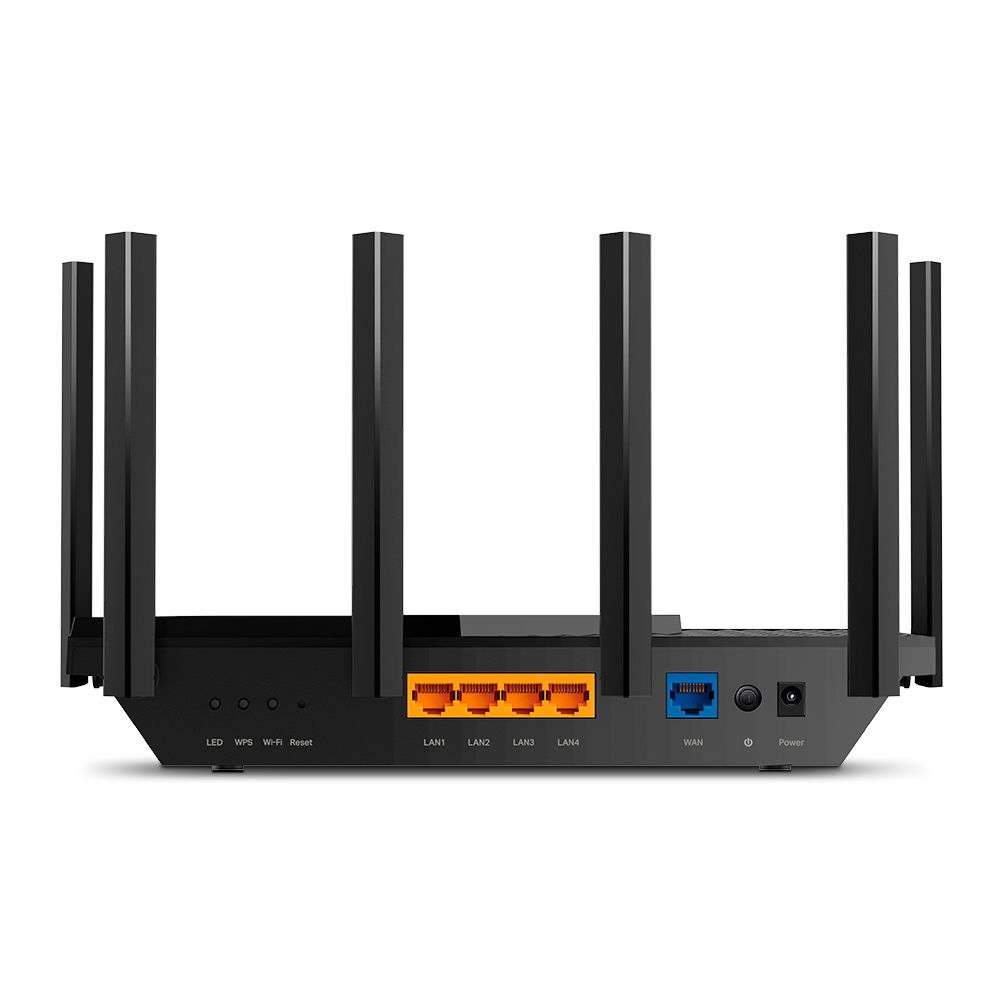

Ethernet Ports:
1 Gigabit WAN Port
4 Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2 LAN ports

USB Support:
1 USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons:
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

Power: 12 V ? 2.5 A

Security:
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security:
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network:
1 5 GHz Guest Network
1 2.4 GHz Guest Network

VPN Server:
OpenVPN
PPTP

Software:
Protocols:
IPv4
IPv6

Service Kits: HomeShield

OneMesh:
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

Parental Controls:
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Types:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service:
QoS by Device

Cloud Service:
Auto Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding:
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server

IPTV:
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP:
Address Reservation
DHCP Client List
Server

DDNS:
TP-Link
NO-IP
DynDNS

Management:
Tether App
Webpage

Physical:
Dimensions (WDH):
10.7 ...
