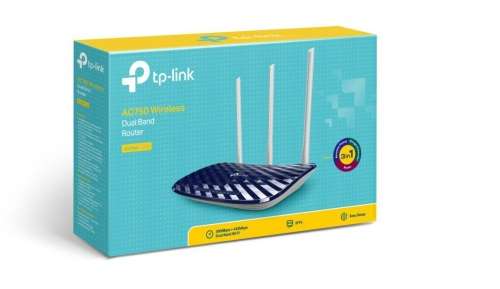

TP-Link Archer C20 AC750 Wireless Dual-Band Wi-Fi Router

Guest Network provides separate access for guests while securing the host network

TP-Link Archer C20 Overview

With the Archer C20 AC750 Wireless Dual-Band Wi-Fi Router from TP-Link, you can get online in no time. This simple-to-use router comes compatible with the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting data transfer rates of up to 750 Mb/s. In addition to enhanced Wi-Fi support, the Archer C20 also comes equipped with four 10/100 Mb/s Ethernet LAN ports for a reliable wired connection to the network. Setup is simple, thanks to the TP-Link Tether app which is available for download on both iOS- and Android-based mobile devices. From this app, you can manage nearly all aspects of your network including settings, parental controls, access controls, and more.

specifications:

Hardware Features

- Interface: 4 10/100Mbps LAN ports, 1 10/100Mbps WAN port

- Button: WPS/Wi-Fi Button, Reset Button, Power On/Off Button

- External Power Supply: 9V/0.6A(EU), 9V/0.6A(US)

- Dimensions ( W x D x H ): 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)

- Antenna: 2 × 2.4GHz Antennas, 1 × 5GHz Antenna

Wireless Features

- Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

- Frequency: 2.4GHz and 5GHz

- Signal Rate: 5GHz: Up to 433Mbps, 2.4GHz: Up to 300Mbps

Reception Sensitivity:

5GHz:

11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:

-62dBm

2.4GHz:

11g 54M: -76dBm11n; HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBm

Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

Transmission Power:

CE:
