High-Speed Wi-FiAC750 dual-band is ideal for HD video streaming, high-speed downloading.
Far-Reaching Coverage4× antennas deliver far-reaching Wi-Fi and reliable connections.
Multi-Mode 3 in 1Supports Router, Access Point, and Range Extender to add flexibilities.
Parental ControlsManages when and how connected devices can access the internet.
Guest NetworkProvides separate access for guests while securing the host network.
Smooth HD StreamingSupports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
IPv6 SupportedCompatible with the IPv6 (the latest Internet Protocol version 6).
Compact and MountableDesigned to conserve space and complement any décor.

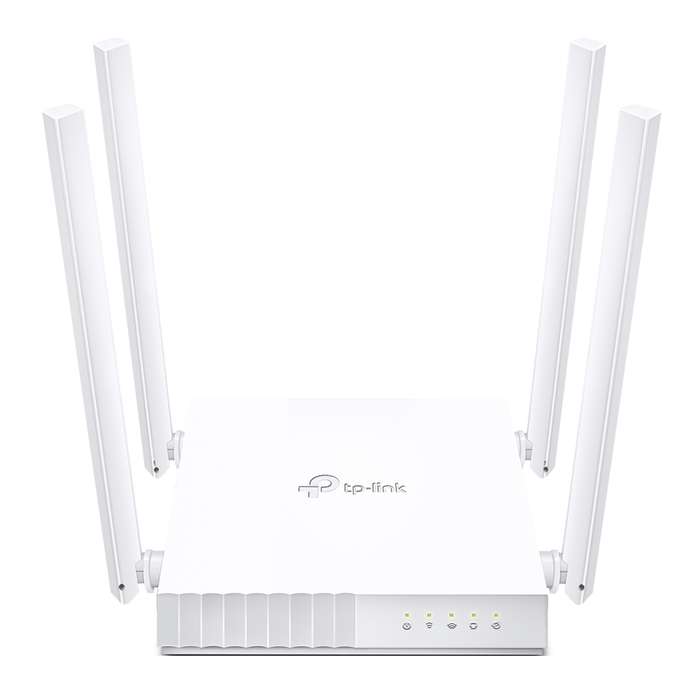

Apartment Wi-Fi. Palm-Sized. AC750 Dual-Band Wi-Fi Router.
Dual-Band WiFi
AC750 WiFi Speed
Compact and Mountable
Parental Controls
Doubling Bandwidth with Dual Band
AC Dual-band WiFi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.
433 Mbps 5 GHz Band
5 GHz : Faster and clearer Wi-Fi ensures smooth 4K streaming
300 Mbps : 2.4 GHz Band
2.4 GHz : Wall-Penetrating signal covers the whole apartment
Stable and Far-Reaching
Featuring 4× diagonally-distributed antennas, Archer C24 cover more direction and expand the WiFi coverage, supporting buffer-free surfing and stalling-free downloading.
Multi-Mode 3 in 1
Router Mode (Default) : Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.
Access Point Mode : Transform your existing wired network into a wireless one.
Range Extender Mode : Boost the existing wireless coverage in your house.
More Functions Despite the Size
Versatile Management : Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.
Parental Controls : Block content, Limit online time
Guest Network : Use a different password, Secure private network
QoS : Prioritize devices
IPv6 Supported
IPTV Supported
Easy WI-FI Sharing
LED Control
High Integration, Compact Size
Archer C24's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and a 3-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.
As Stable as a Larger One
Archer C24 goes through rigorous repeated testing to ensure a final product reliable under a number of strenuous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours.
Continuous Transmission Test : 24 h (Continuous 10 GB file uploads and downloads.)
Structure Test : 1.5 m + 120 min (Drop impact test from 1.5 m height and a 120 min vibration test.)
Harsh Environment Test : 48 h (Storage temperature: 60 °C and -40 °C.)
RAM Stress Test : ? 25,000 (Read and write combined.)
Capacity Test : 16 devices + 7 days (16 connected Wi-Fi devices continuously streaming for 7 days without dropping WiFi.)
Flash Test : ? 2,000 I/O (Read and write combined.)
Place it Anywhere
Easy Setup at Your Fingertips
Set up Archer C24 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
Specifications
Wireless
Standards : Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds : AC750
5 GHz : 433 Mbps (802.11ac)
2.4 GHz : 300 Mbps (802.11n)
WiFi Range :2 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity : Medium
Dual-Band
Allocate devices to different bands for optimal performance
Working Modes :
Router Mode
Access Point Mode
Range Extender Mode
Hardware
Processor : Single-Core CPU
Ethernet Ports : 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons : WPS/Reset Button
Power : 9 V ? 0.6 A
Security
WiFi Encryption :
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security :
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network :
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Software
Protocols :
IPv4
IPv6
Parental Controls : URL Filtering, Time Controls
WAN Types:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service : QoS by Device
NAT Forwarding :Port Forwarding, Port Triggering, DMZ, UPnP
IPTV : IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP : Address Reservation, DHCP Client List, Server
DDNS: NO-IP, DynDNS
Management : Tether App, Webpage
Physical
Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)
Others
System Requirements : Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications : FCC, CE, RoHS
Environment : Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature : -40?~60? (-40? ~140?)
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~90% non-condensing
Test Data
WiFi Transmission Power
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
WiFi Reception Sensitivity
5GHz:
11a 54M: -76dBm;
11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm;
11ac VHT80 MCS9: -62dBm
2.4GHz:
11g 54M: -76dBm;
11n HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
What's in the box
Wi-Fi Router Archer C24
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
