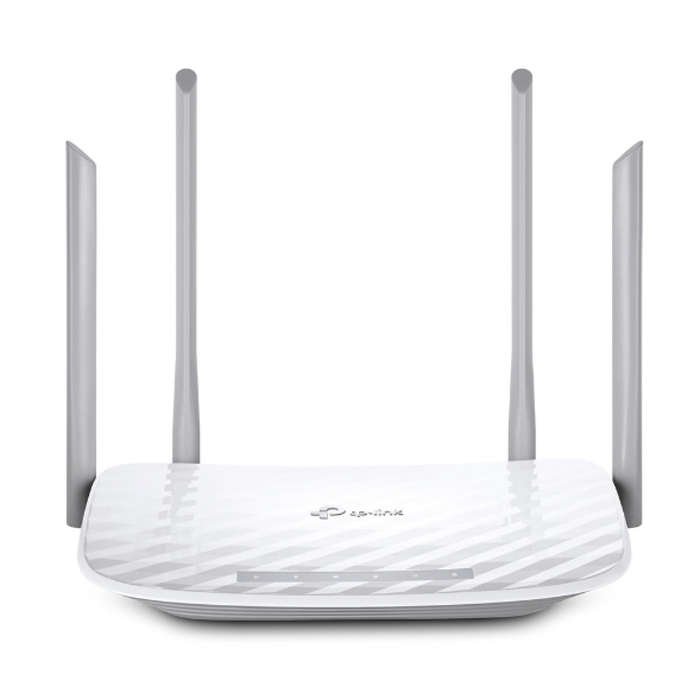

TP-Link Archer C50 AC1200 Dual Band WiFi Router

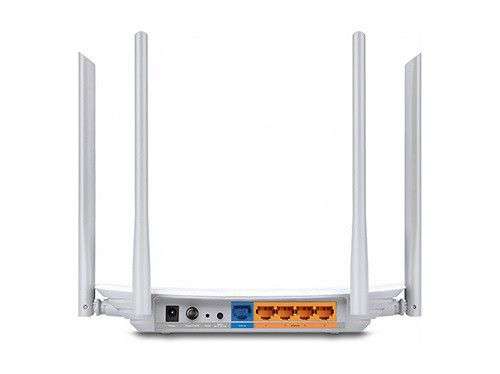

Interface:
- 4x 10/100Mbps LAN Ports
- 1x 10/100Mbps WAN Port
- USB 2.0 Port
Button:
- WPS/Reset Button
- Wireless On/Off Button
- Power On/Off Button
External Power Supply:
- 12VDC / 1.5A
Dimensions (W x D x H):
- 7.2 x 4.9 x 1.3 in. (182.95 x 123.5 x 32.1 mm)
Antenna Type:
- 2x Dual Band External Antennas
WIRELESS FEATURES
Wireless Standards:
- IEEE 802.11n/g/b 2.4GHz
- IEEE 802.11ac/n/a 5GHz
Frequency:
- 2.4GHz and 5GHz
Signal Rate:
- 2.4GHz: Up to 300Mbps
- 5GHz: Up to 867Mbps
Reception Sensitivity
5GHz:
- 11a 54M: -76dBm
- 11ac VHT20 MCS8: -70dBm
- 11ac VHT40 MCS9: -65.5dBm
- 11ac VHT80 MCS9: -61.5dBm
2.4GHz:
- 11g 54M: -76dBm
- 11n HT20 MCS7: -74dBm
- 11n HT40 MCS7: -71d
Transmit Power CE:
- less than 20dBm(2.4GHz)
- less than 23dBm(5GHz)
FCC:
- less than 30dBm
Wireless Functions:
- Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security:
- 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES
Quality of Service:
- WMM, Bandwidth Control
WAN Type:
- Dynamic IP/Static IP/PPPoE/
- BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)
Management:
- Access Control
- Local Management
- Remote Management
DHCP:
- Server, Client, DHCP Client List,
- Address Reservation
Port Forwarding:
- Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS:
- DynDns, Comexe, NO-IP
VPN Pass-Through:
- PPTP, L2TP, IPSec
Access Control:
- Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security:
- DoS, SPI Firewall
- IP Address Filter/MAC Address Filter/Domain Filter
- IP and MAC Address Binding
Protocols Supports:
- IPv4 and IPv6
USB Sharing:
- Support Samba(Storage)/FTP Server/Media Server/Printer Server
Guest Network:
- 2.4GHz guest network x 1
- 5GHz guest network x 1
OTHERS
Certification:
- CE, FCC, RoHS
Package Contents:
- AC1200 Wireless Dual Band Router Archer C50
- Power supply unit
- Resource CD
- Ethernet Cable
- Quick Installation Guide
System Requirements:
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment:
- Operating Temperature: 0 degrees C - 40 degrees C (32 degrees F - 104 degrees F)
- Storage Temperature: -40 degrees C - 70 degrees C (-40 degrees F - 158 degrees F)
- Operating Humidity: 10 percent - 90 percent non-condensing
- Storage Humidity: 5 percent - 90 percent non-condensing
What's in the box
1 x TP-Link AC1200 Wireless Dual Band Ethernet Router
