TP-Link Archer C6 AC1200 Dual-Band Wi-Fi Router

TP-Link AC1200 Wireless MU-MIMO Gigabit Router - Black

Supports 802.11ac standard:
Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth, 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage

Features:
- Archer C6
- AC1200 Wireless MU-MIMO Gigabit Router
- Easy network management at your fingertips with TP-Link Tether
- MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
- Supports Access Point mode to create a new Wi-Fi access point
- Smooth Entertainment with AC1200 Dual Band Wi-Fi
- The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology

The 2.4GHz band delivers speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to 867Mbps, ideal for HD video streaming and lag-free online gaming.

5 High-Performance Antennas Wi-Fi Coverage throughout Your Home:
Four external antennas and one internal antenna send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony.With a powerful chipset, the Archer C6 provides ideal Wi-Fi coverage. The 2.4GHz band coverage is especially impressive, eliminating Wi-Fi dead-zones and beating that of other competing routers.

It's An Access Point, Too:
Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices.

MU-MIMO Matters :
Increase Speed, Throughput, Capacity
MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently.

Gigabit Connectivity, 10 Faster:
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10 faster than standard Ethernet connections. Connect your favourite wired devices to the Archer C6 and get impressed!
Easy Setup and Management with the Tether APP. The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C6 and manage your network settings.

Ease of Use:
- Intuitive Web UI: Ensure quick and simple installation without hassle
- Hassle-free Management with Tether App: Let you easily manage your network settings with your smartphone
- Fast Encryption: Quickly connect devices to Wi-Fi at the push of a button without entering the password
- Access Point Mode: Switch to access point mode to connect Wi-Fi devices to any wired network

Reliability:
- Ultimate Wireless Speed:300Mbps Wi-Fi speed on 2.4GHz and 867Mbps Wi-Fi speed on 5GHz meet your daily internet needs
- MU-MIMO: Simultaneously transfer data to multiple devices for 2 faster
- Support 802.11 ac: Provide a data transfer rate 3 times faster than 802.11n for each stream
- IPTV: Support IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Security

Active Defense:
- Protect your home network with firewalls and wireless encryption

Guest Network:
- Provide separate access for guests while securing the home network

Access Control:
- Establish a whitelist or blacklist to allow or block certain devices from accessing the internet

Parental Controls:
- Manage when and how connected devices can access the internet

Encryptions for Secure Network:
- WPA-PSK and WPA2-PSK encryptions provide active protection against security threats

Environment:
- Operating Temperature: 0?~40? (32? ~104?)
- Storage Temperature: -40?~70? (-40? ~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing

Hardware features:
- Ports: 4 x 10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port
- Button: Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button
- Power Supply: 12V/1A
- Dimensions ( W x D x H ): 9.1 5.7 1.4 in (230 144 35 mm)
- Antenna: 4 Fixed Omni Directional Antennas

Wireless features:
- Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4GHz and 5GHz

Signal Rate: 5GHz:
- Up to 867Mbps
- 2.4GHz: Up to 300Mbps

Reception Sensitivity:
- 5GHz:
- 11a 6Mbps:-93dBm?11a 54Mbps:-78dBm?
- 11ac HT20 mcs8:69dBm; 11ac HT40 mcs9:-65dBm;
- 11ac HT80 mcs9:-62dBm;
- 2.4GHz:
- 11g 54Mbps:-78dBm;
- 11n HT20 mcs7:-74dBm;
- 11n HT40 mcs7:-71dbm?
- Transmit Power: CE EIRP: - Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

Software features:
- WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond
- Management: Access Control, Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP
- Access Control: Parental Controls, Local Management Control, Host List, White List, Black List
- Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
- Protocols: IPv4, IPv6
- Guest Network: 2.4GHz guest network, 5GHz guest network

System Requirements:
Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access)

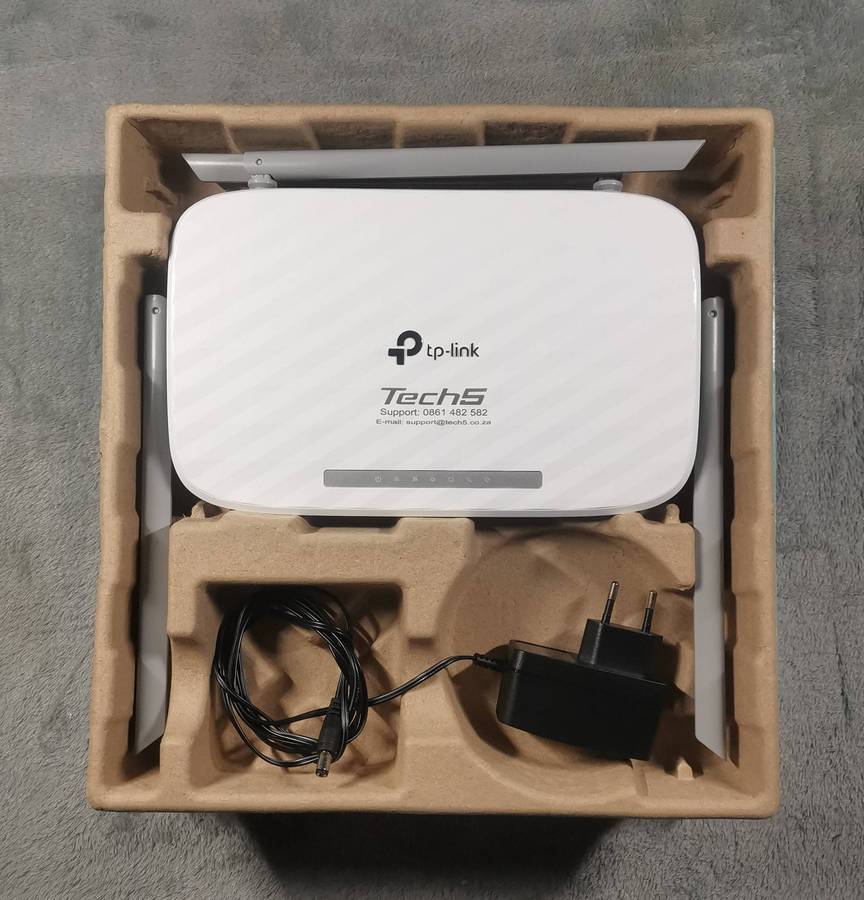

What's in the box
Wireless Router Archer C6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
