802.11ac Wave2 WiFi 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band
Boosted WiFi Coverage 4 external antennas provide stable wireless connections and optimal coverage
MU-MIMO Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
Beamforming Beamforming technology delivers a highly efficient wireless connection
AP Mode Supports Access Point mode to create a new WiFi access point
Intelligent Connection Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
Easy Setup Easy network management at your fingertips with TP-Link Tether
High-Performance WiFi for Gigabit Network Entry
Dual-Band | Full Gigabit
AC1200 MU-MIMO WiFi Router

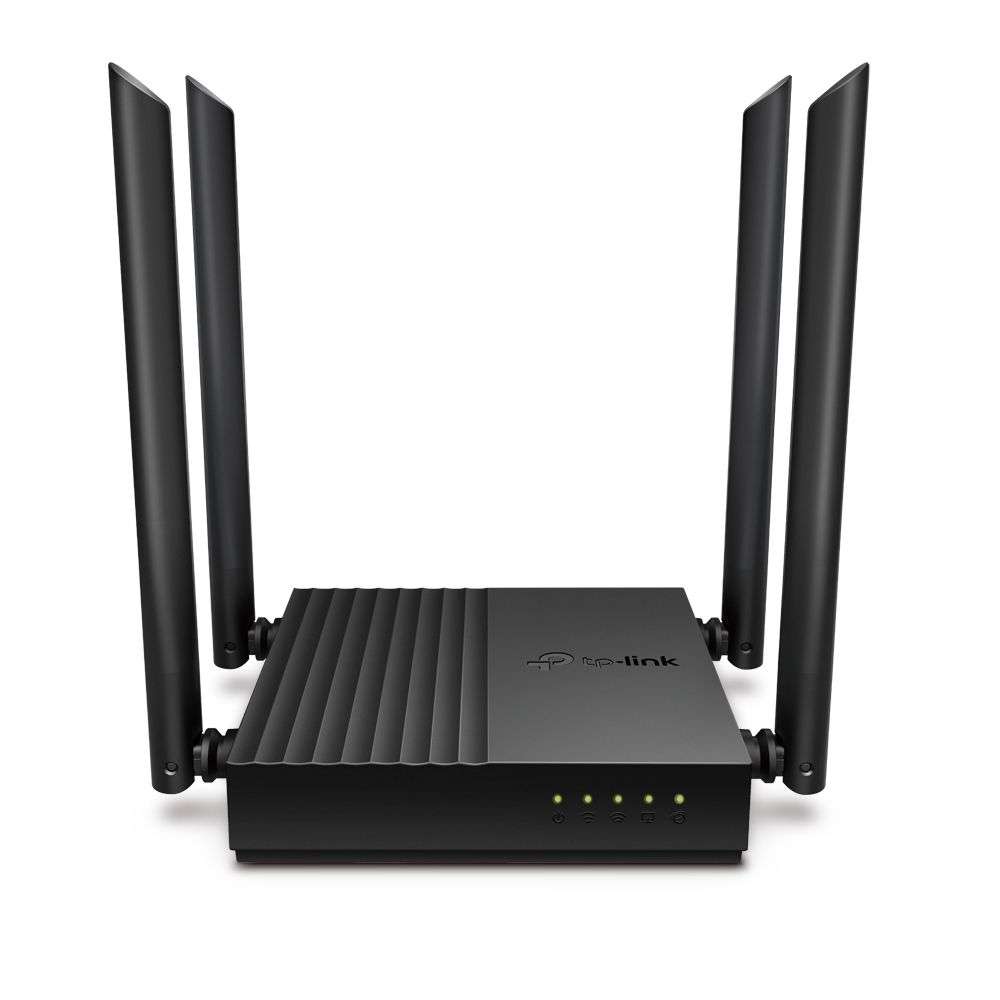

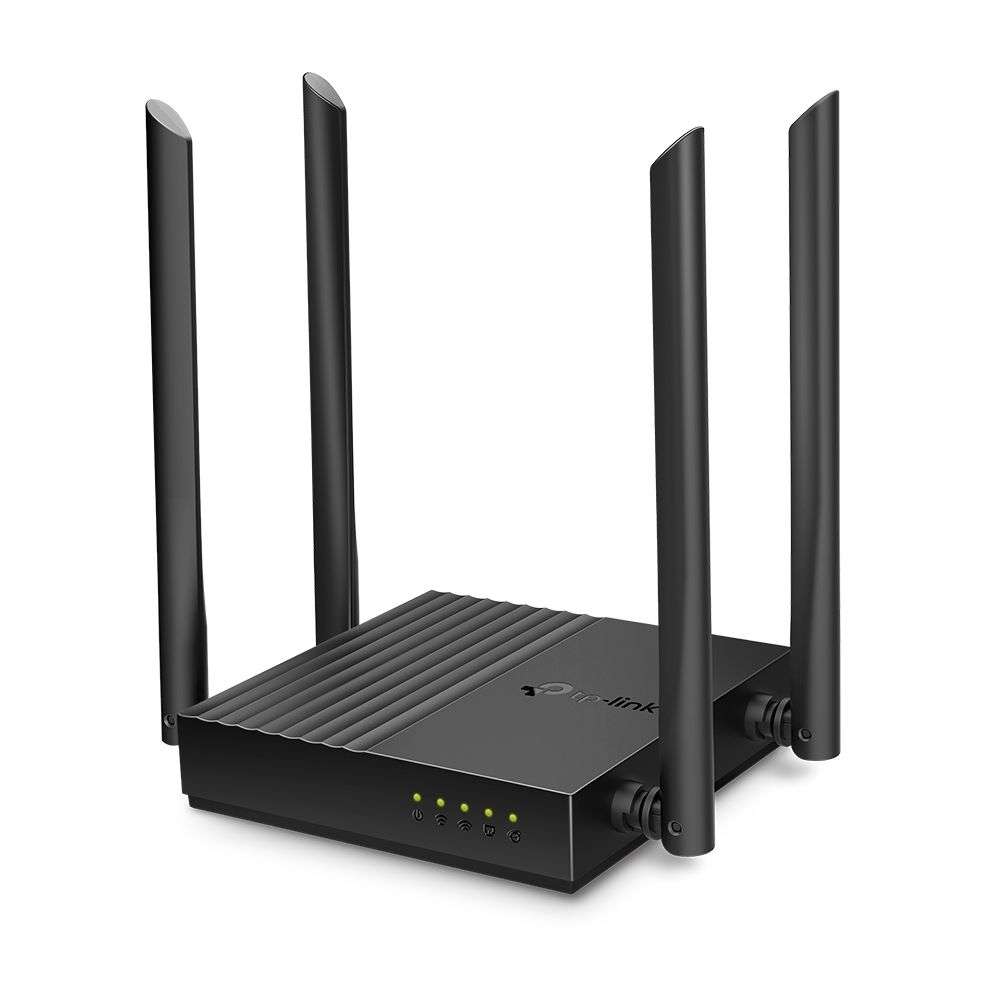

Archer C64
AC1200 Dual Band WiFi Meets Your Smooth Network Needs
The Archer C64 allows you to connect more devices and stream simultaneously with its dual 2.4GHz and 5GHz bands. The 2.4GHz band provide reliable connections for sending emails, web browsing and other simple tasks. The 5GHz band delivers speed up to 867Mpbs, great for media-intense applications like video streaming and online gaming. With a lag-free connection, you will never miss out again.
Take Your Network Security to the Next Level
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Extensive WiFi Coverage Throughout Your Home
With 4 high-performance external antennas, Archer C64 boosts WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, particularly for previously hard to reach outlets.
Simultaneously Streaming to Multiple Devices with MU-MIMO
AC1200 WiFi with MU-MIMO establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability. No more bandwidth congestion or latency. Enjoy non-stop entertainment on all your devices lag-free.
10 × Faster Wired or Wireless
Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver speeds up to 10 × faster than standard Ethernet connections. Plugin your PCs, smart TVs, and game consoles for fast and reliable connections.
Archer C64 is your best choice for high-performance Gigabit network entry, with a competitive price advantage, full Gigabit Ethernets ports drive your devices to peak performance.
Access Point Working Mode
Switch Archer C64 from router working mode to Access Point mode, to transform your existing wired network into a wireless one.
Easy Setup at Your Fingertips
Set up Archer C64 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
Specifications
Wireless
Standards: Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)
WiFi Range: 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes: Router Mode, Access Point Mode
Hardware
Processor: 1.2 GHz CPU

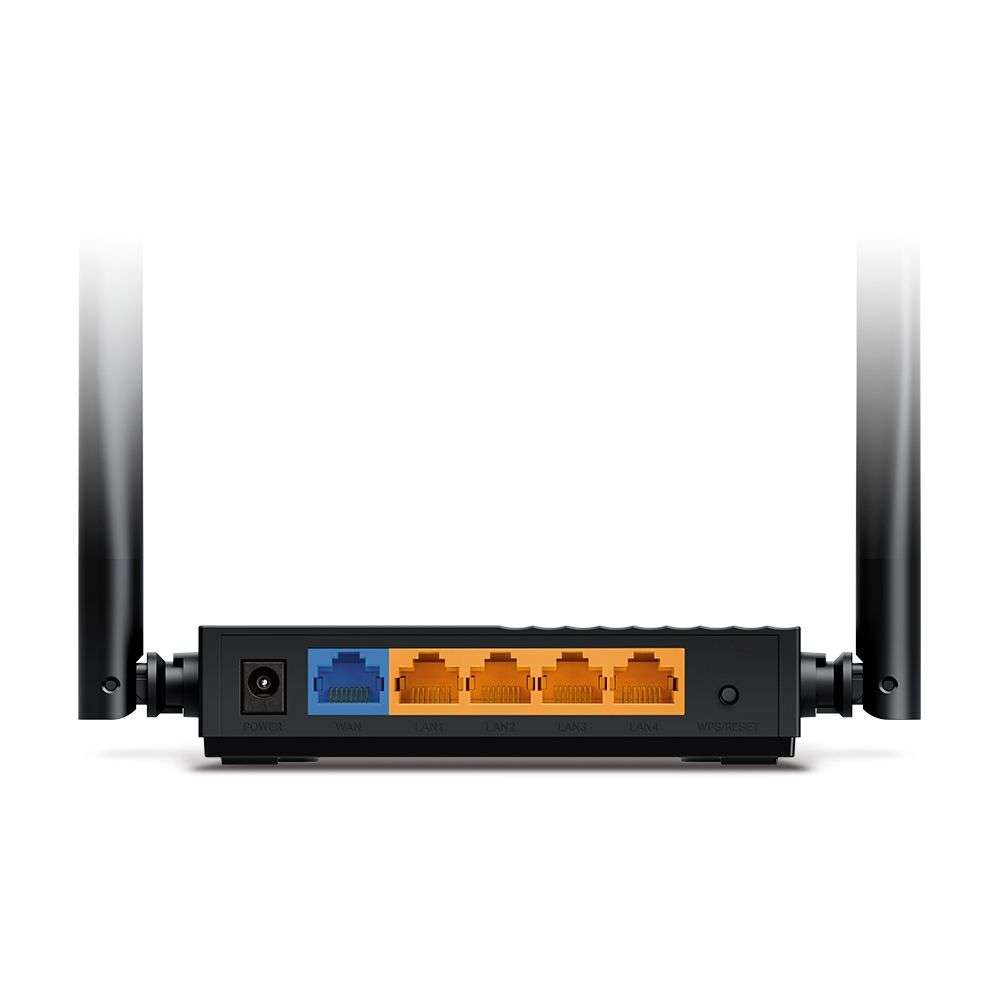

Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports
Buttons: WPS/Reset Button
Power: 12V = 1A
Security
WiFi Encryption: WPA/WPA2, WPA-PSK/WPA2-PSK/WPA3-SAE encryptions
Network Security: SPI Firewall, IP and MAC Address Binding
Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
Software
Protocols IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE(Dual Access)
PPTP(Dual Access)
L2TP(Dual Access)
Quality of Service: QoS by Device
Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
Port Triggering
UPnP
DMZ
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Server
DHCP Client List
Address Reservation
DDNS
TP-Link
NO-IP
DynDNS
Management
Tether App
Webpage
Physical
Dimensions (W×D×H): .7 × 4.7 × 1.1 in
(120 × 120 × 27.9 mm)
Other
System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Certifications: CE, RoHS
Environment: Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Test Data
WiFi Transmission Power
CE:
<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5 GHz)
WiFi Reception Sensitivity
5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm
2.4 GHz:
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT20 MCS7:-77dBm
11n HT40 MCS7:-74dBm
11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS9:-68dBm
What's in the box
1 x Wireless Router Archer C64
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
